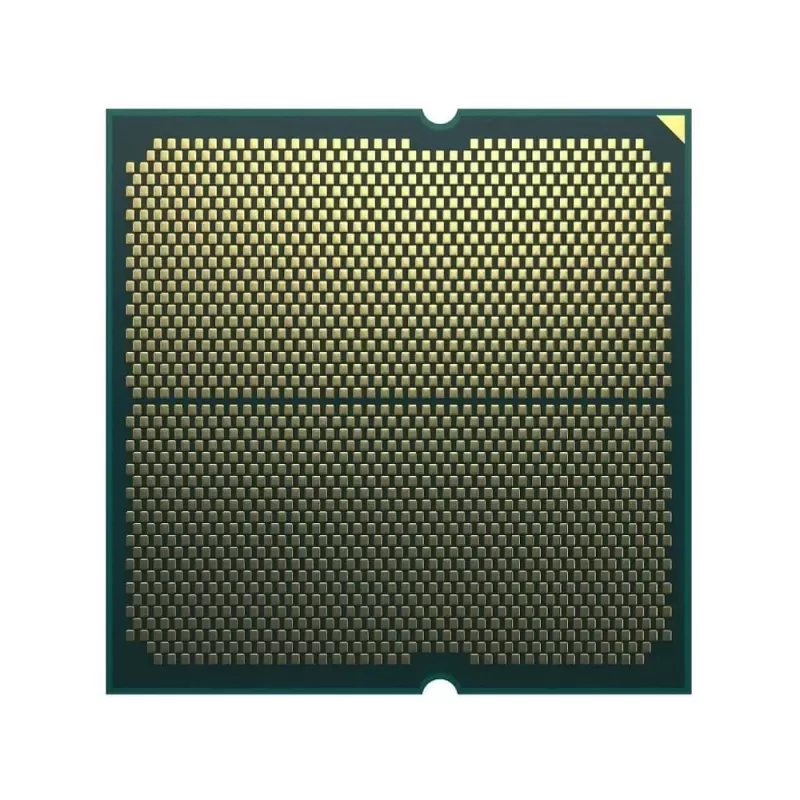

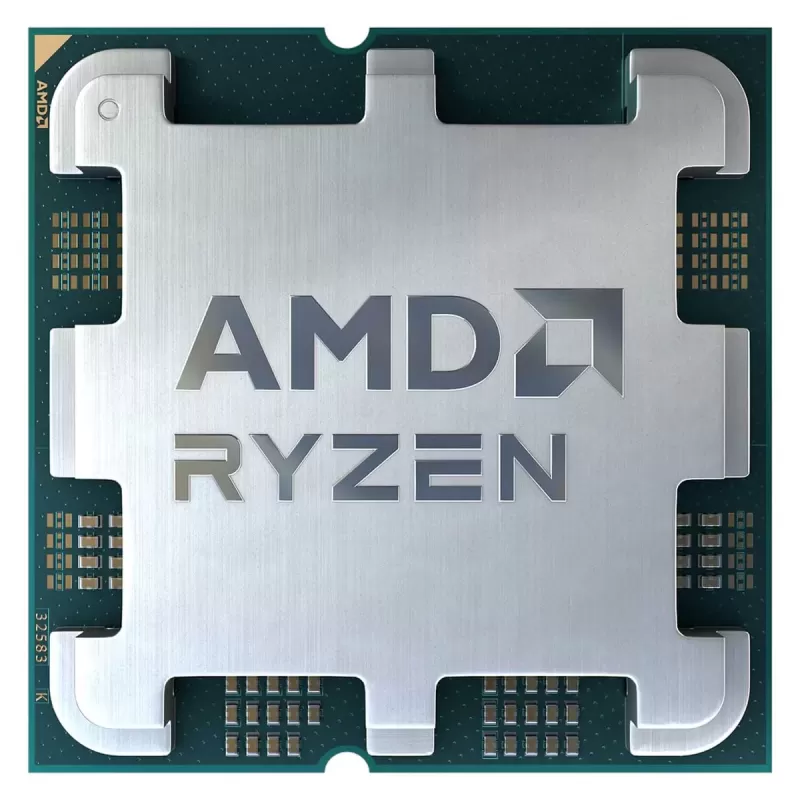

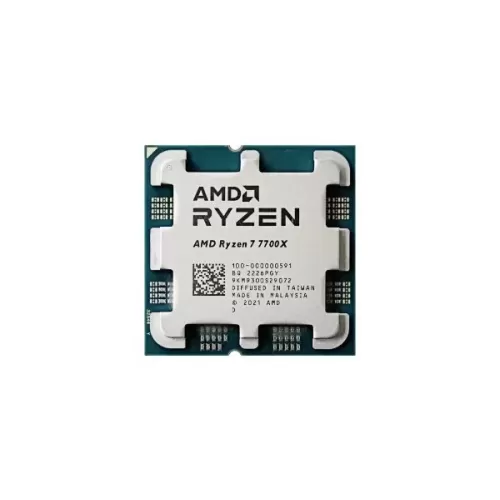

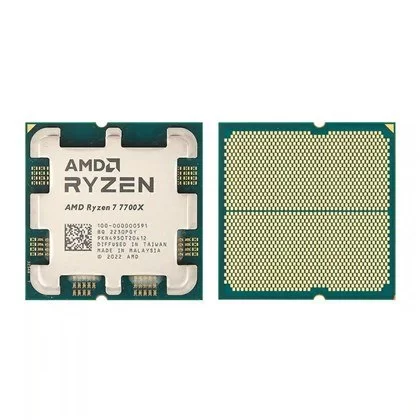

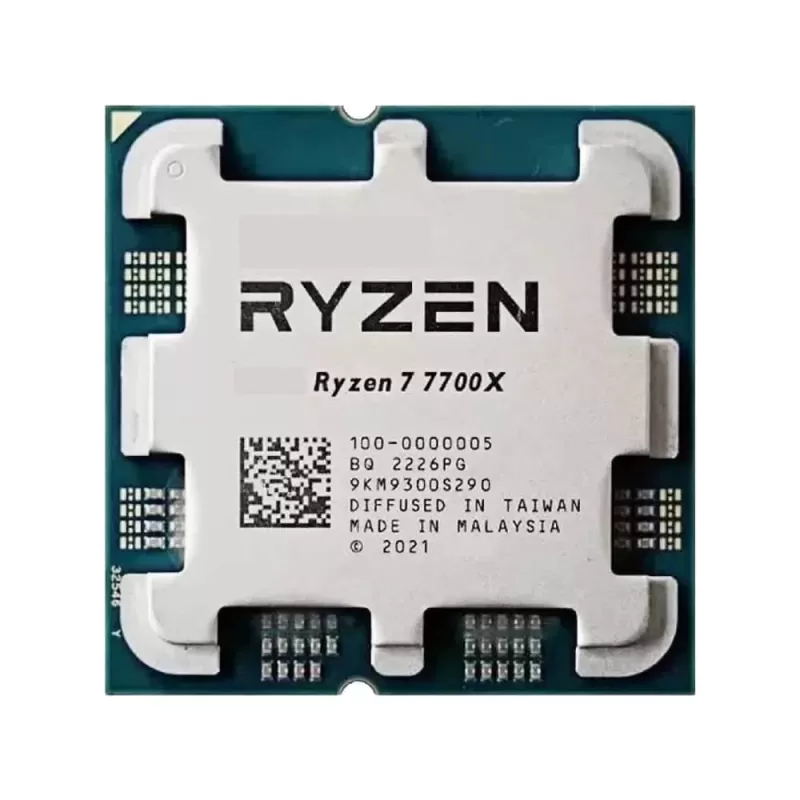

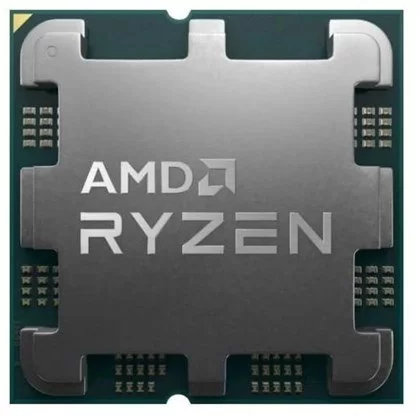

Processor AMD Ryzen 7 7700X AM5

AMD Ryzen 7 7700X Processor

The AMD Ryzen 7 7700X is a Ryzen 7000 series desktop processor (code name Raphael) for the AM5 socket, built on the Zen 4 architecture in TSMC's 5nm process. It has 8 cores and 16 threads, a 4.5GHz base clock and up to 5.4GHz boost, with 8MB of L2 and 32MB of L3 cache, which makes it a fit for gaming, content creation and professional work.

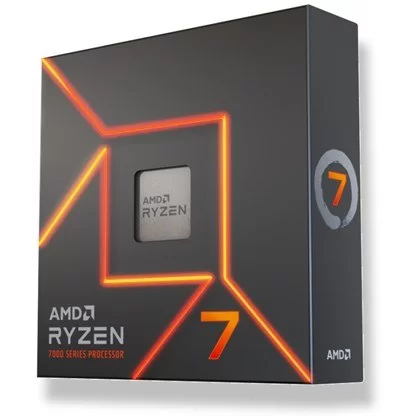

It supports dual-channel DDR5 memory, PCIe 5.0 for a graphics card and fast NVMe drives, and AMD EXPO memory overclocking. Integrated AMD Radeon Graphics with 2 graphics cores is built in, and the default TDP is 105W. The tray version comes without a box and without a cooler, and AMD recommends a premium air cooler.

Key features

• 8 Zen 4 cores up to 5.4GHz - 8 cores and 16 threads with a 4.5GHz base clock and up to 5.4GHz boost deliver high performance in games and multitasking.
• Large cache - 512KB of L1, 8MB of L2 and 32MB of L3 cache shorten data access times.
• DDR5 and PCIe 5.0 - Dual-channel DDR5 at up to DDR5-5200 and up to 128GB, plus 28 PCIe 5.0 lanes (24 usable) for a graphics card and NVMe drives.
• Integrated graphics - AMD Radeon Graphics with 2 graphics cores at 2200MHz lets the PC run without a discrete graphics card and supports DisplayPort over USB-C on supporting motherboards.
• Unlocked for overclocking - The processor is unlocked and supports Precision Boost Overdrive, Curve Optimizer, AMD EXPO and AMD Ryzen Master.
• AM5 platform - Compatible with motherboards based on the A620, B650, B650E, X670, X670E, B840, B850, X870 and X870E chipsets. Default TDP is 105W, and no cooler is included.
