Processor Intel Core i5 12600KF LGA1700

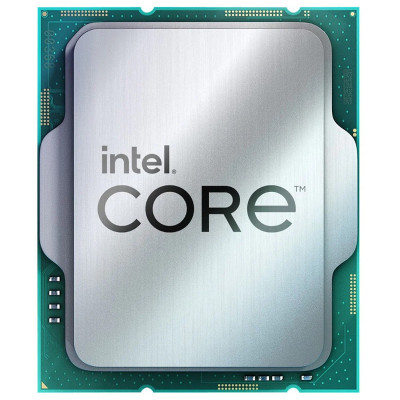

Intel Core i5 12600KF Processor

The Intel Core i5-12600KF is a 12th generation Intel Core desktop processor (code name Alder Lake) for the LGA1700 socket, made in the Intel 7 process. It combines 6 Performance-cores and 4 Efficient-cores for a total of 10 cores and 16 threads, with up to 4.9GHz turbo and 20MB of Intel Smart Cache.

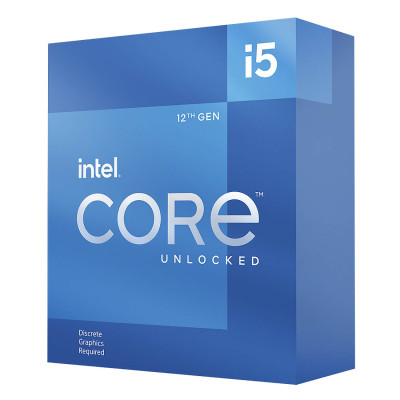

It supports both DDR5 up to 4800MT/s and DDR4 up to 3200MT/s, plus PCIe 5.0 and 4.0 lanes. The KF version is unlocked and has no integrated graphics, so a discrete graphics card is required. Base power is 125W and maximum turbo power is 150W. Part number CM8071504555228 is the tray version, which comes without a box and without a cooler.

Key features

• Hybrid architecture - 6 Performance-cores with up to 4.9GHz turbo and 4 Efficient-cores with up to 3.6GHz turbo combine high performance with efficient multitasking.
• DDR5 or DDR4 - Dual-channel DDR5 up to 4800MT/s or DDR4 up to 3200MT/s, up to 128GB, so you can pick a motherboard to fit your budget.
• PCIe 5.0 - Up to 20 PCIe 5.0 and 4.0 lanes for a graphics card and fast NVMe drives.
• Unlocked - The K suffix means an unlocked multiplier for overclocking on supporting motherboards.
• No integrated graphics - The F suffix means the processor has no integrated graphics, so a discrete graphics card is required.
• LGA1700 socket - Fits LGA1700 motherboards (Intel 600 and 700 series chipsets). 125W base power and 150W maximum turbo power.

Specifications
