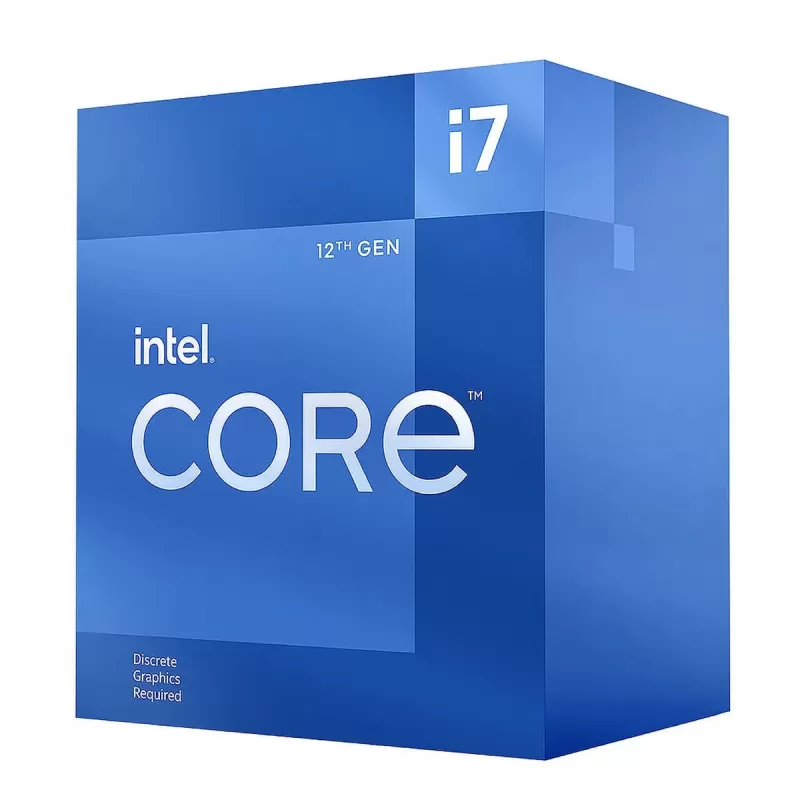

Processor Intel Core i7 12700F LGA1700

Intel Core i7 12700F Processor

The Intel Core i7 12700F is a 12th Gen Intel (Alder Lake) desktop processor with a hybrid architecture that combines 8 Performance-cores and 4 Efficient-cores. Together they deliver 20 threads, a turbo frequency of up to 4.9GHz and 25MB of Intel Smart Cache for gaming, heavy office work and multitasking.

The processor fits the LGA1700 socket, supports DDR5 memory up to 4800 MT/s or DDR4 up to 3200 MT/s, and offers PCI Express 5.0. The F model has no integrated graphics, so a discrete graphics card is required. Processor base power is just 65W, with maximum turbo power of 180W.

Key features

• Hybrid architecture - 8 Performance-cores handle games and demanding tasks, while 4 Efficient-cores run secondary work in the background. Intel Thread Director helps the operating system place each task on the right core.
• Up to 4.9GHz - Performance-cores run at a 2.1GHz base frequency and boost up to 4.8GHz, and the processor's max turbo frequency reaches 4.9GHz. 25MB of cache and 12MB of L2 cache shorten data access times.
• DDR5 or DDR4 - The memory controller supports both DDR5 up to 4800 MT/s and DDR4 up to 3200 MT/s in two channels, with up to 128GB, so the motherboard and memory can be chosen to fit the budget.
• PCI Express 5.0 - 20 PCIe 5.0 and 4.0 lanes from the processor, in 1x16+4 or 2x8+4 configurations, for a fast graphics card and an NVMe drive connected directly to the CPU.
• Efficient power use - A processor base power of just 65W, with maximum turbo power of 180W, makes it possible to build a strong PC even in a mid-size case. Because there is no integrated graphics, a separate graphics card must be installed.

Specifications
