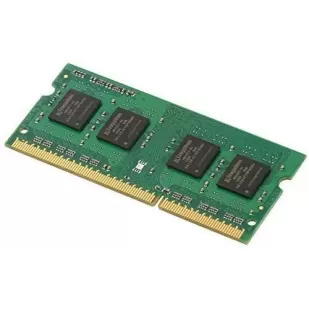

SODIMM memory Kingston KVR16LS11/4 4GB DDR3L SO-DIMM 1600MHz 1.35V

SODIMM Memory Kingston KVR16LS11/4

The Kingston ValueRAM KVR16LS11/4 is a 4GB DDR3L SO-DIMM memory module running at 1600 MT/s (PC3L-12800) with CL11 (11-11-11) latency. It is organised as 512M x 64-bit, single rank (1Rx8), built from eight 512M x 8-bit FBGA chips.

It is meant for upgrading and repairing laptops, all-in-one PCs and small form factor computers that use DDR3L SO-DIMM memory, for example to add memory for smoother browsing and Office work or to replace a faulty module.

The SPD is programmed to JEDEC DDR3-1600 timings at both 1.35V and 1.5V, so the module also runs in systems that supply the standard 1.5V DDR3 voltage. It has gold contact fingers, a 30 mm PCB height and is RoHS compliant.

Key features

• DDR3L-1600 at CL11 - 1600 MT/s (PC3L-12800) with 11-11-11 timings to the JEDEC standard.
• Dual voltage: 1.35V and 1.5V - Low 1.35V operation for lower power and heat, plus 1.5V support for standard DDR3 systems.
• 4GB single rank - 512M x 64-bit, 1Rx8, built from eight 512M x 8-bit FBGA components.
• 204-pin SO-DIMM - Standard size for laptops and small PCs, Non-ECC Unbuffered, with gold contact fingers.
• JEDEC compatibility - Kingston ValueRAM is built to JEDEC specifications, with programmable CAS latency 5 to 11 and On Die Termination.
