Server Memory Samsung LRDIMM DDR4 2933MT/s ECC 64GB M386A8K40CM2-CVF 64GB DDR4 ECC REG 2933MHz CL21 1.2V

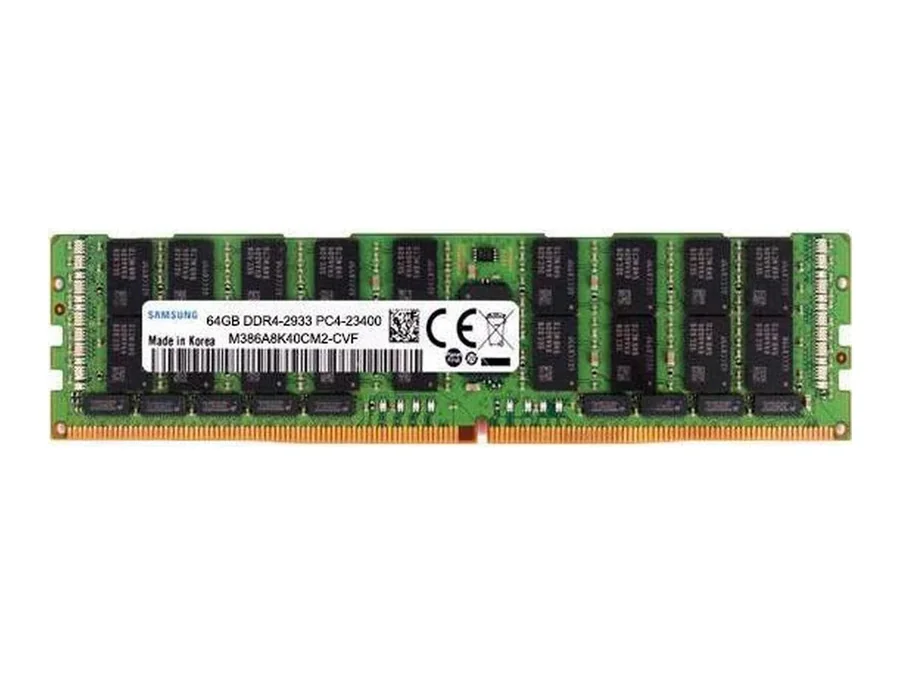

Samsung LRDIMM DDR4 2933MT/s ECC 64GB Server Memory

The Samsung M386A8K40CM2-CVF is a 64GB DDR4 Load-Reduced (LRDIMM) module with ECC error correction for servers and workstations. It runs at 2933MT/s (PC4-23400) with CL21 timing at 1.2V and has 288 pins.

The module uses a 4DRx4 (quad rank) organization. Data buffer chips on the module isolate the DRAM from the memory controller and reduce the electrical load, which allows very large memory capacities per server, while ECC detects and corrects data errors to keep the system stable.

Key features

• DDR4-2933 LRDIMM - A load-reduced module at 2933MT/s (PC4-23400) with CL21 timing for server platforms that support DDR4 LRDIMM.
• ECC error correction - Detects and corrects data errors on the fly, essential for servers that run around the clock.
• 64GB, 4DRx4 - A quad rank module that provides 64GB per memory slot.
• 1.2V - Standard DDR4 operating voltage for relatively low power and heat.
• Data buffers - Buffer chips on the module reduce the load on the memory controller and enable large capacities.
