Server Memory Samsung UDIMM DDR4 2666MT/s ECC 16GB M391A2K43BB1-CTD 16GB DDR4, ECC 2666MHz 1.2V

Samsung UDIMM DDR4 2666MT/s ECC 16GB Server Memory

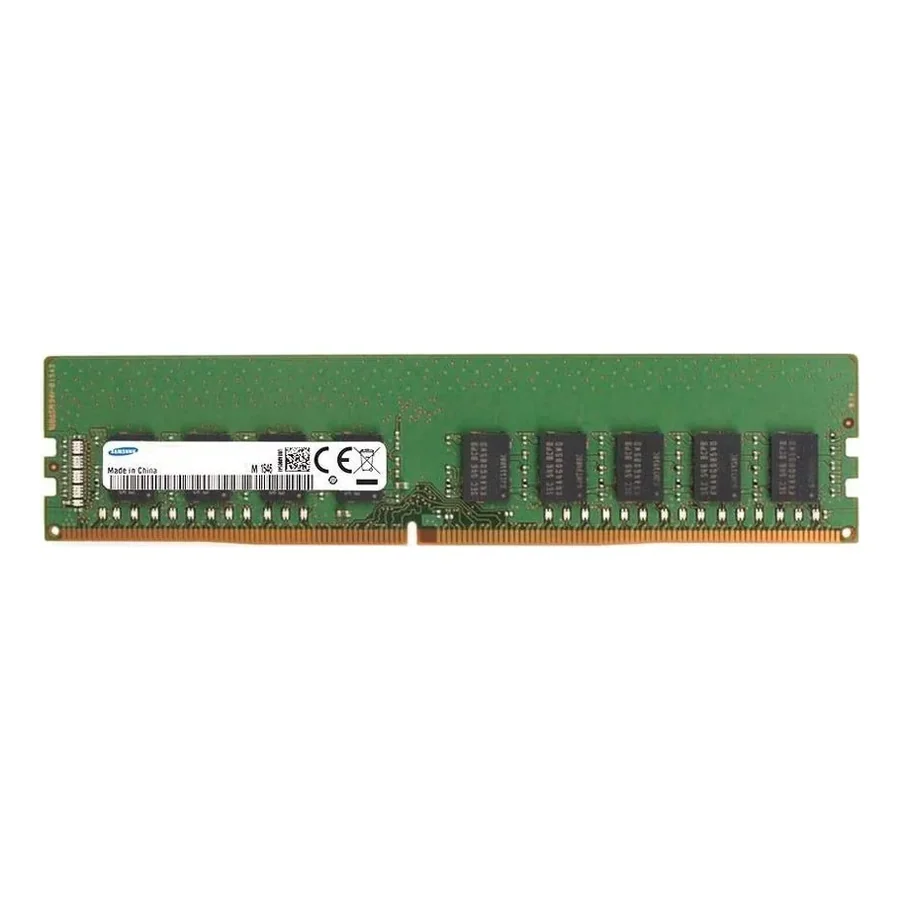

The Samsung M391A2K43BB1-CTD is a DDR4 ECC UDIMM memory module with 16GB of capacity, intended for servers and workstations that support unbuffered ECC memory. The module runs at 2666MT/s (PC4-21300) and 1.2V.

The module has two ranks (2Rx8) and uses a 288-pin DIMM connection with ECC error correction for better stability and reliability.

Key features

• 16GB in the ECC UDIMM format - A single 16GB module with ECC error correction, unbuffered, for systems that support this memory type.
• 2666MT/s speed - DDR4-2666 (PC4-21300) speed with CL19 latency.
• 1.2V operating voltage - The standard 1.2V operating voltage of DDR4 memory.
• ECC error correction - A 72-bit organization (64 data bits plus 8 ECC bits) allows memory errors to be detected and corrected.
• Dual-rank configuration - The module is built in a 2Rx8 configuration with 18 memory components.

Specifications
