SSD Disk Samsung 990 EVO Plus 1TB MZ-V9S1T0BW M.2 2280

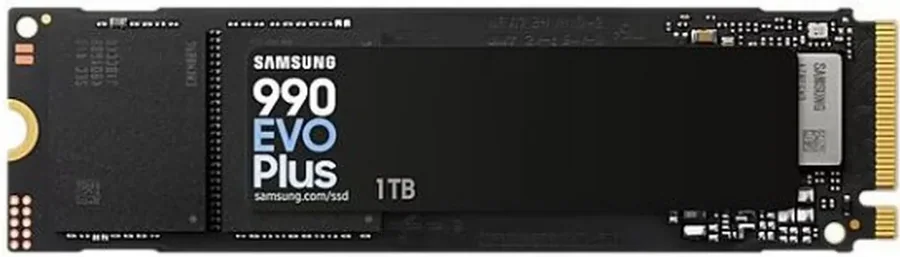

Samsung 990 EVO Plus 1TB SSD

The Samsung 990 EVO Plus is an M.2 2280 SSD that runs over PCIe 4.0 x4 or PCIe 5.0 x2 with the NVMe 2.0 protocol. At 1TB it reaches sequential reads of up to 7,150MB/s and writes of up to 6,300MB/s, using Samsung V-NAND TLC and a Samsung in-house controller.

The drive is DRAM-less and uses HMB (Host Memory Buffer) technology, while a nickel-coated controller improves performance per watt by up to 73% over the previous model. It suits laptop and desktop upgrades, and Samsung Magician software helps you migrate data, monitor the drive and update firmware.

Key features

• Fast PCIe 4.0 performance - Sequential reads of up to 7,150MB/s and writes of up to 6,300MB/s at 1TB, with random performance of up to 850K IOPS read and 1,350K IOPS write.
• PCIe 4.0 x4 or PCIe 5.0 x2 - The drive supports a four-lane PCIe 4.0 link or a two-lane PCIe 5.0 link, with the NVMe 2.0 protocol.
• Intelligent TurboWrite 2.0 - An enlarged TurboWrite region speeds up writing large files and handling heavy graphics.
• Power efficiency - The nickel-coated controller improves throughput per watt by up to 73% over the previous model. Average power is 4.3W for reads and 4.2W for writes, and about 60mW at idle.
• Encryption and reliability - AES 256-bit hardware encryption (Class 0) with TCG/Opal and IEEE1667 support, and an MTBF of 1.5 million hours.
• Samsung Magician software - A management tool for migrating data to the new drive, tracking drive health and getting firmware updates.

Specifications
