Storage Server Terramaster U8-500 Plus

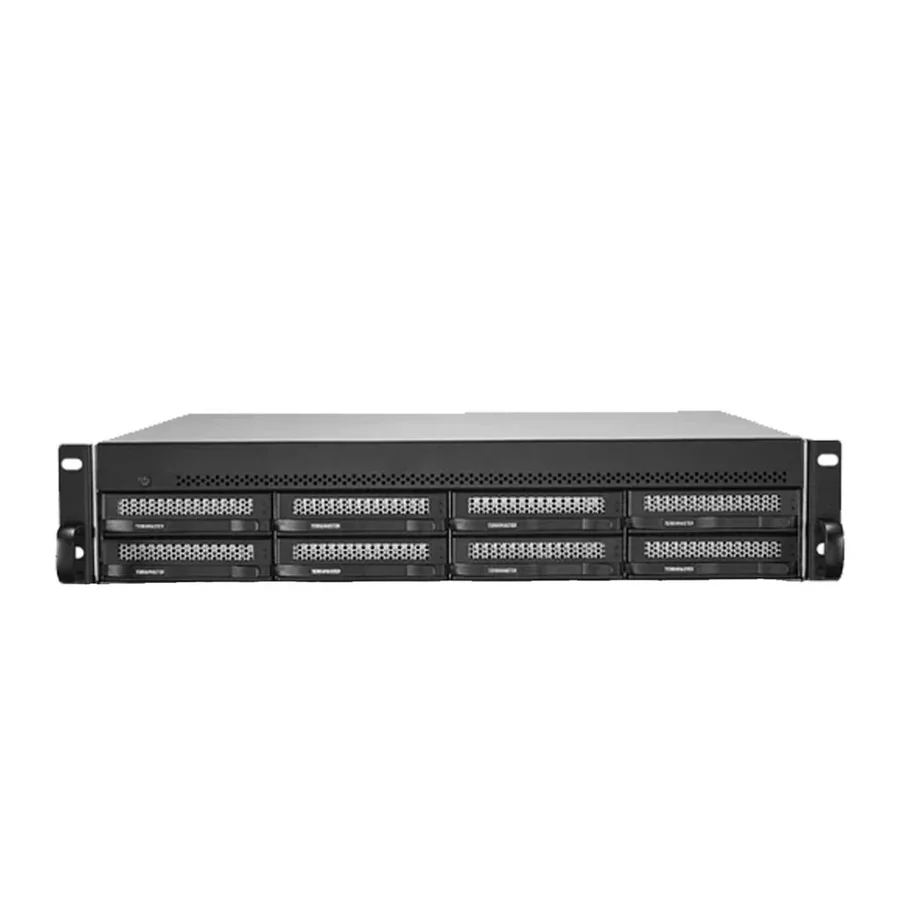

TerraMaster U8-500 Plus 8-Bay Rackmount NAS

The TerraMaster U8-500 Plus is a 2U rackmount network storage server (NAS) with 8 bays for 3.5-inch and 2.5-inch drives. It runs on a 10-core, 12-thread Intel Core i7-1255U with turbo up to 4.7GHz and 16GB of DDR5 memory, expandable to 64GB.

Two 10GbE ports provide up to 20Gbps of bandwidth, and two M.2 2280 NVMe slots add SSD caching. The TOS operating system supports RAID, snapshots, backup, Docker and media servers, and the 384 mm depth fits shorter racks in small offices.

Key features

• Intel Core i7-1255U - 10 cores and 12 threads up to 4.7GHz, Intel Iris Xe graphics, AES-NI hardware encryption and hardware transcoding up to 4K 60fps.
• 8 bays in 2U - Hot-swappable 3.5-inch and 2.5-inch SATA drives, up to 176TB raw with eight 22TB drives.
• Dual 10GbE - Up to 20Gbps with link aggregation, and sequential writes of up to 2090MB/s according to TerraMaster.
• M.2 NVMe cache - Two M.2 2280 NVMe slots (PCIe 4.0 x4) for SSD cache, and DDR5 memory expandable to 64GB across two slots.
• TOS operating system - RAID 0/1/5/6/10, TRAID and TRAID+, Btrfs and EXT4, snapshots, iSCSI, Docker, Plex and Emby.
• 384 mm depth - A compact 88 x 440 x 384 mm chassis with three 80 mm fans and a 250W power supply.

Specifications

In the box

• U8-500 Plus unit
• Power cord
• RJ-45 network cable
• Quick installation guide
• Screws
