ASRock Radeon RX 6800 XT Phantom Gaming D 16G OC Graphics Card

The ASRock Radeon RX 6800 XT Phantom Gaming D 16G OC is built on the AMD Radeon RX 6800 XT GPU with the RDNA 2 architecture on a 7nm process, with 72 compute units and 4608 stream processors. It carries 16GB of GDDR6 memory on a 256-bit bus and supports hardware ray tracing.

This is the OC edition, with a boost clock of up to 2310MHz. The card is cooled by the three-fan Phantom Gaming 3X system and has a reinforced metal frame and a metal backplate. It is 330 mm long and takes 2.8 slots, so check that your case has enough room.

Key features

• RDNA 2 and ray tracing - 72 compute units, 4608 stream processors and DirectX 12 Ultimate support with hardware ray tracing.
• 16GB GDDR6 - 16GB of memory on a 256-bit bus at 16Gbps, well suited to gaming at high resolutions.

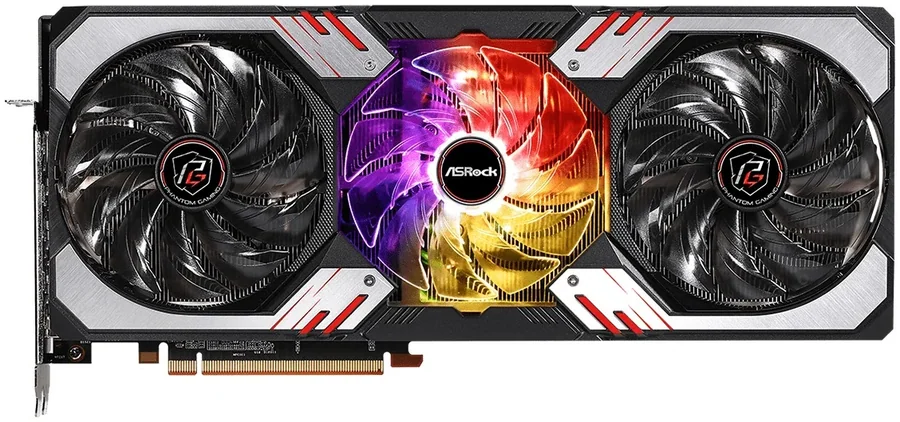

• Phantom Gaming 3X cooling - Three Striped Axial Fans, air-deflecting fins, consolidated heatpipes and a nickel-plated copper base. With 0dB Silent Cooling the fans stop when temperatures are low.

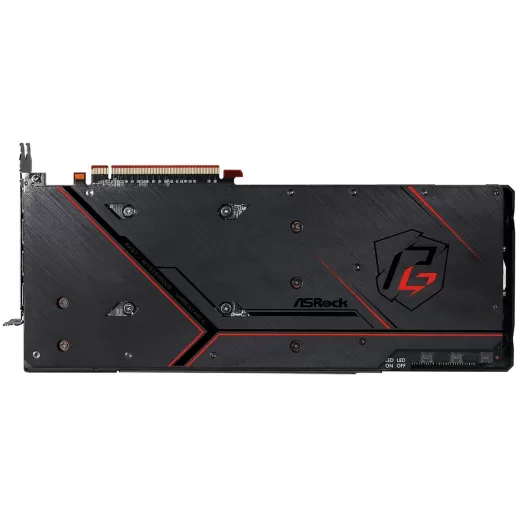

• Solid build - A reinforced metal frame and a metal backplate prevent the card from bending, and Dr.MOS power stages deliver steady current to the GPU.
• Polychrome SYNC lighting - Built-in ARGB lighting with an on/off switch, sync with ASRock motherboards and an ARGB header for extra LED strips.

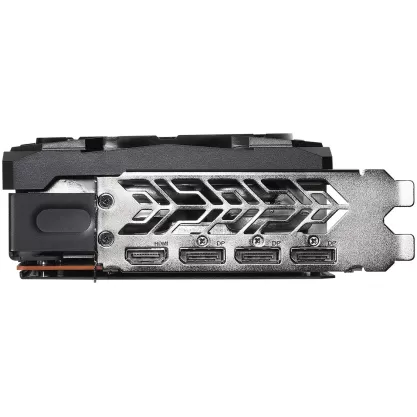

• Up to four displays - One HDMI 2.1 port with VRR and three DisplayPort 1.4 ports with DSC, at resolutions up to 7680 x 4320.

Specifications

In the box

• ASRock Radeon RX 6800 XT Phantom Gaming D 16G OC graphics card
• Quick installation guide
