Video Card Zotac GAMING GeForce RTX 5060 AMP Core 8GB ZT-B50600F2-10M

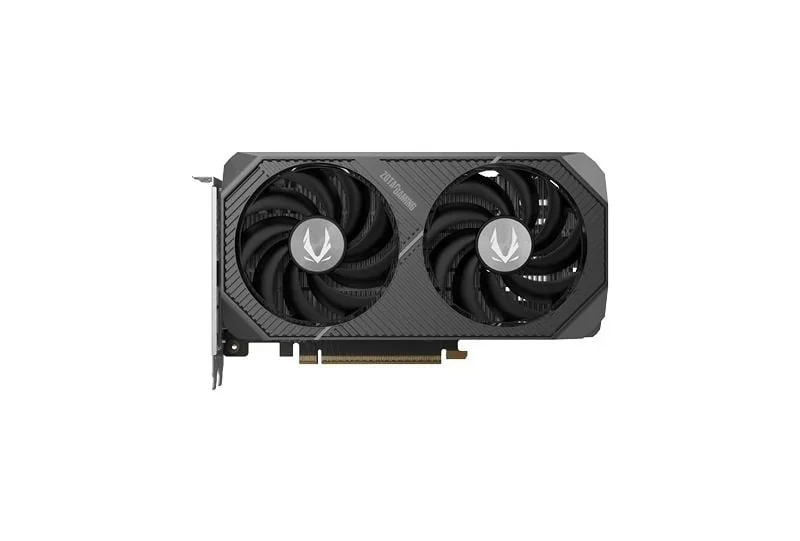

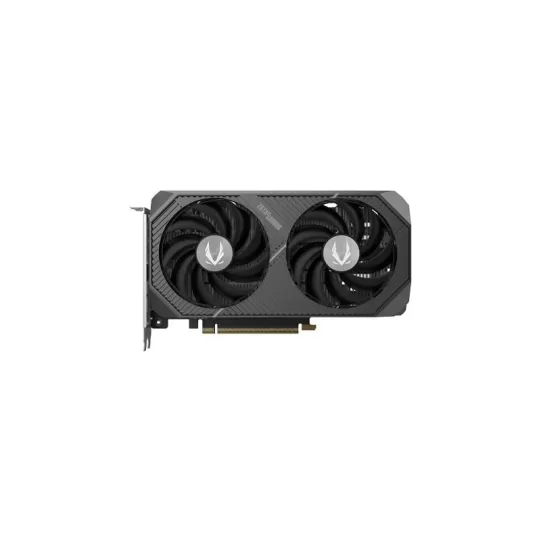

Zotac GAMING GeForce RTX 5060 AMP Core 8GB Graphics Card

The Zotac GAMING GeForce RTX 5060 AMP Core is a compact graphics card based on the NVIDIA Blackwell architecture, with 8GB of GDDR7 memory and DLSS 4.5 support. According to Zotac, it comes with a factory overclock and improved cooling compared with the GeForce RTX 5060 AMP.

The card is 220.5 mm long and two slots thick, so it also fits small cases. It draws 145W through a single 8-pin connector, and Zotac recommends a 550W power supply.

Key features

• Blackwell and DLSS 4.5 - 3840 CUDA cores and 614 AI TOPS for gaming with DLSS and ray tracing and for AI applications.
• 8GB GDDR7 - GDDR7 memory on a 128-bit bus at 28Gbps.
• Factory overclock - A 2587MHz engine clock out of the box, with no extra tuning needed.
• Quiet cooling - BladeLink fans and Freeze Fan Stop, which stops the fans at light load. The FireStorm utility lets you monitor and tune the card.
• Ready for small cases - An SFF-Ready card measuring 220.5 x 120.25 x 41.6 mm in a two-slot design.

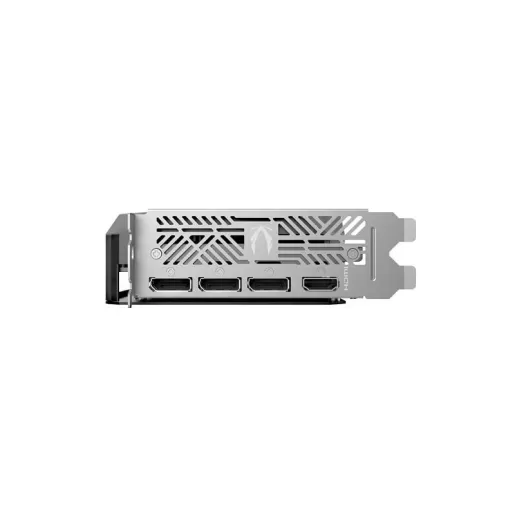

• Up to four displays - 3 x DisplayPort 2.1b with UHBR20 and 1 x HDMI 2.1b. Up to 4K 480Hz or 8K 165Hz with DSC, and up to 4 displays at once.

Specifications

In the box

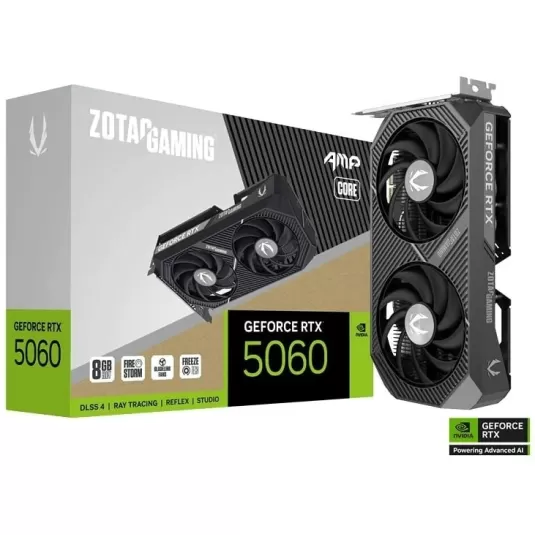

• Zotac GAMING GeForce RTX 5060 AMP Core graphics card
• User manual
