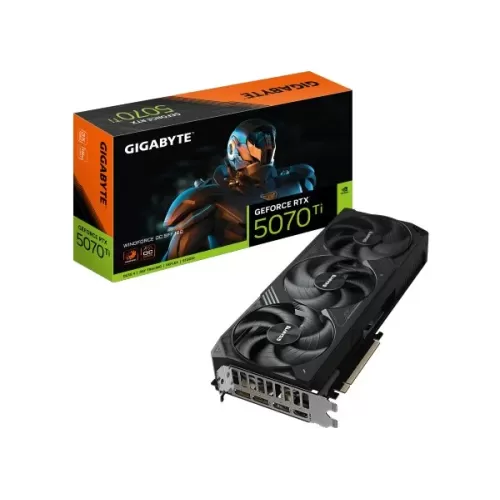

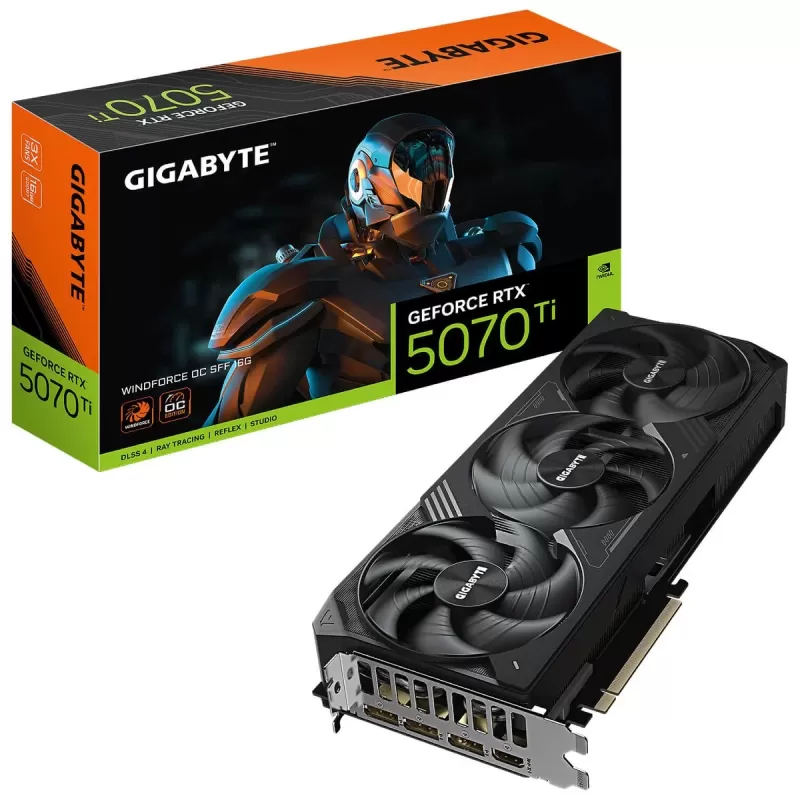

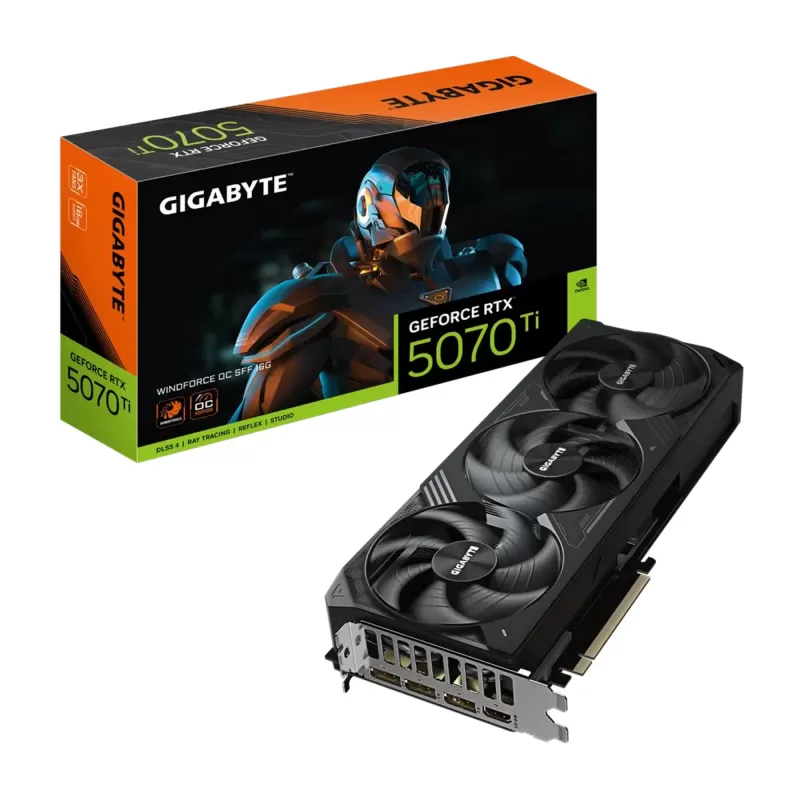

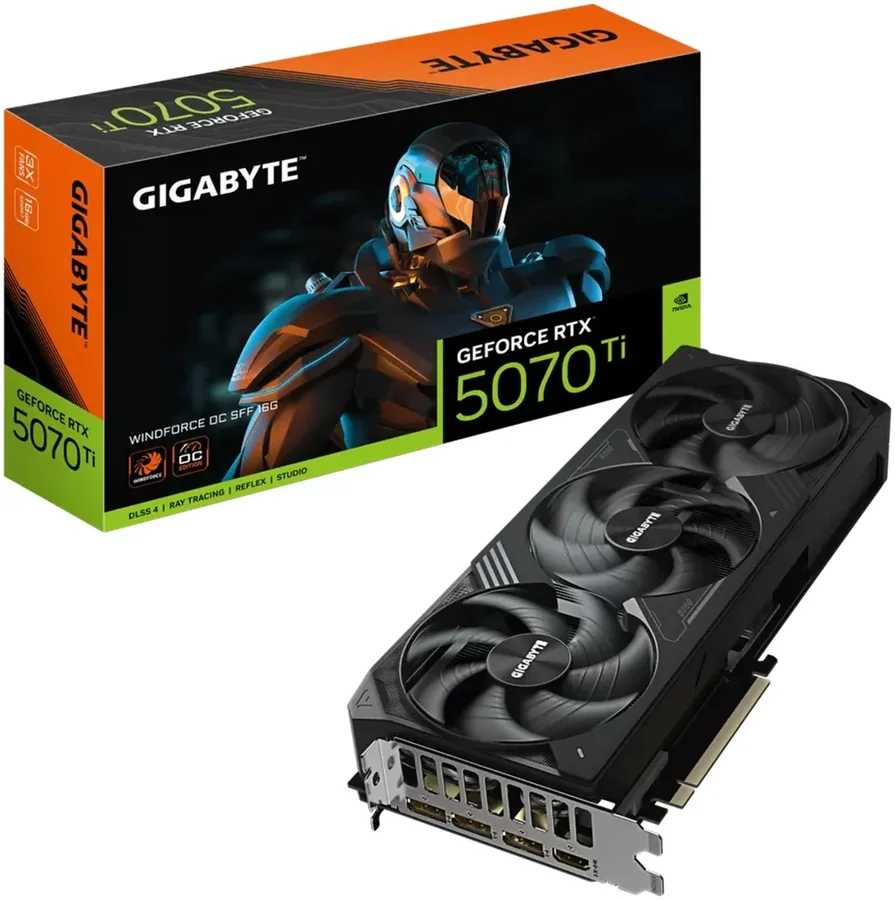

Gigabyte GeForce RTX 5070 Ti WINDFORCE OC SFF 16G Graphics Card

The Gigabyte GeForce RTX 5070 Ti WINDFORCE OC SFF 16G is a compact graphics card built on the GeForce RTX 5070 Ti and the NVIDIA Blackwell architecture. It has 16GB of GDDR7 memory at 28 Gbps on a 256-bit interface and a 2497 MHz core clock, and at 304 mm long and 50 mm thick it meets NVIDIA's SFF-ready specification.

The WINDFORCE cooler combines three Hawk fans, a large copper plate, composite copper heat pipes and server-grade thermal gel. The card has a Dual BIOS switch and a reinforced backplate, and the box includes a 12V-2x6 to 2x PCIe 8-pin adapter and a VGA holder.

Key features

• NVIDIA Blackwell and DLSS 4.5 - Fifth-gen Tensor Cores and fourth-gen Ray Tracing Cores enable full ray tracing with neural rendering. DLSS 4.5 with Dynamic Multi Frame Generation uses AI to raise frame rates, and NVIDIA Reflex cuts latency in competitive games.
• 16GB GDDR7 and 2497 MHz core clock - 16GB of GDDR7 memory runs at 28 Gbps on a 256-bit interface. The core is factory-clocked at 2497 MHz versus 2452 MHz on the NVIDIA reference card, with no extra tuning required.
• NVIDIA SFF-ready - The card meets NVIDIA's small form factor specification at just 304 mm long and 50 mm thick, so a GeForce RTX 5070 Ti fits even in a compact case without giving up performance.

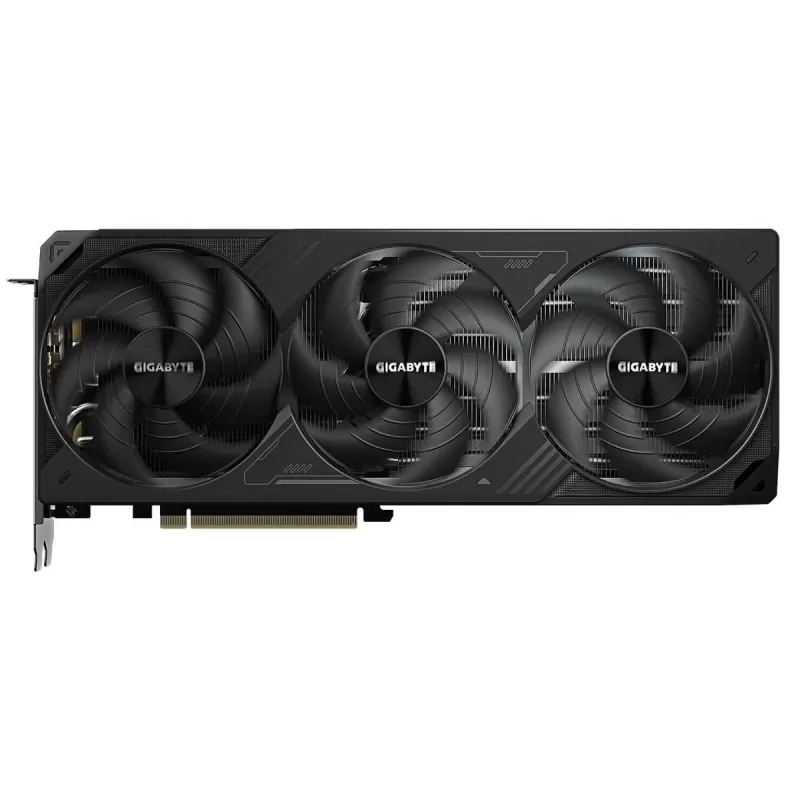

• WINDFORCE cooling - Three Hawk fans with blades inspired by an eagle's wing spin in alternate directions to reduce turbulence and raise air pressure. A large copper plate contacts the GPU directly, composite copper heat pipes carry the heat to the heatsink, and the fans stop completely under light load (3D Active Fan).
• Server-grade thermal conductive gel - The memory chips and MOSFETs are cooled with a thermal gel that keeps full contact on uneven surfaces and does not deform during shipping or long-term use, unlike ordinary thermal pads. The extended heatsink lets air pass straight through (Screen Cooling), and graphene nano lubricant extends fan life.

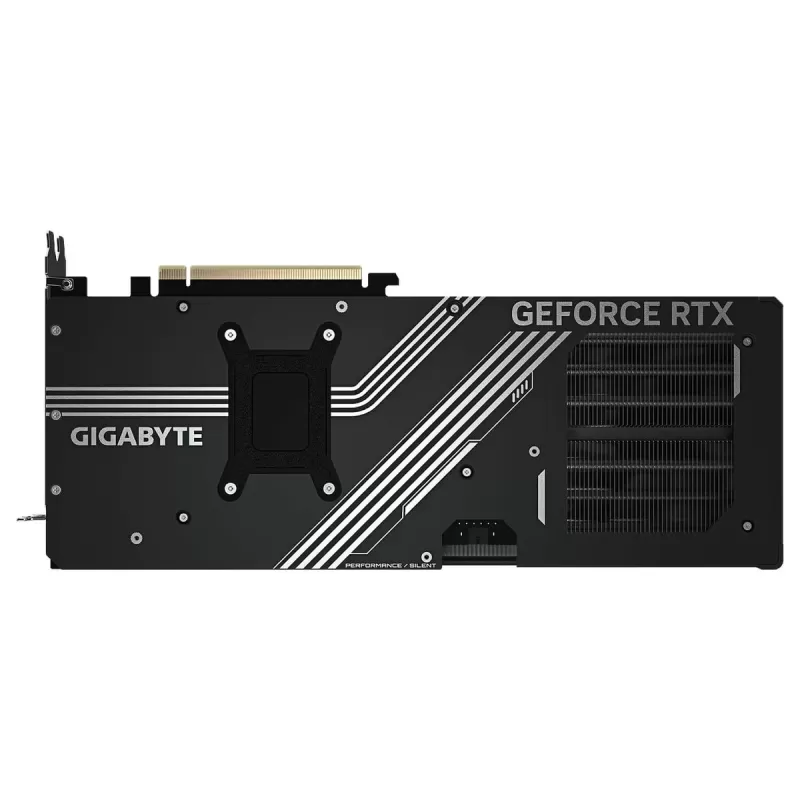

• Dual BIOS and reinforced structure - A Dual BIOS switch toggles between Performance and the quieter Silent mode. A metal backplate with a bent edge is fastened to the I/O bracket, and the included VGA holder with dozens of mounting options keeps the card from sagging.

Specifications

In the box

• Gigabyte GeForce RTX 5070 Ti WINDFORCE OC SFF 16G graphics card
• VGA manual
• 12V-2x6 to 2x PCIe 8-pin adapter
• Versatile VGA holder with manual
