Video Card Gigabyte GeForce RTX 5060 WINDFORCE OC 8G GV-N5060WF2OC-8GD - official importer

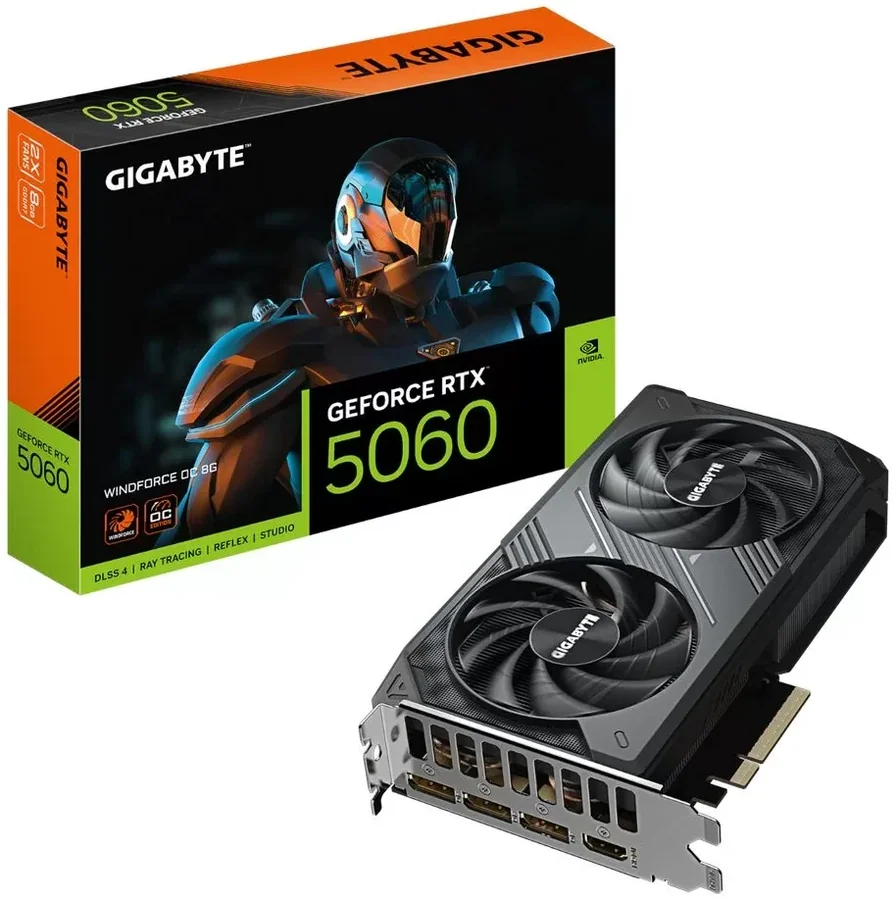

Graphics Card Gigabyte GeForce RTX 5060 WINDFORCE OC 8G

The Gigabyte GeForce RTX 5060 WINDFORCE OC 8G is a dual-fan graphics card built on the NVIDIA Blackwell architecture, with 3840 CUDA cores, 8GB of GDDR7 memory on a 128-bit bus at 28 Gbps and a factory core clock of 2512 MHz (reference card: 2497 MHz).

It targets Full HD and QHD gaming with ray tracing and DLSS 4.5, as well as streaming and content creation thanks to the ninth-generation NVIDIA Encoder. At 199 mm long and 40 mm thick it fits compact cases and small form factor builds where longer cards do not.

The WINDFORCE cooler combines a copper plate, composite copper heat pipes, server-grade thermal conductive gel on the VRAM and MOSFETs and two Hawk fans with alternate spinning, while a reinforced backplate fastened to the I/O bracket keeps the card rigid.

Key features

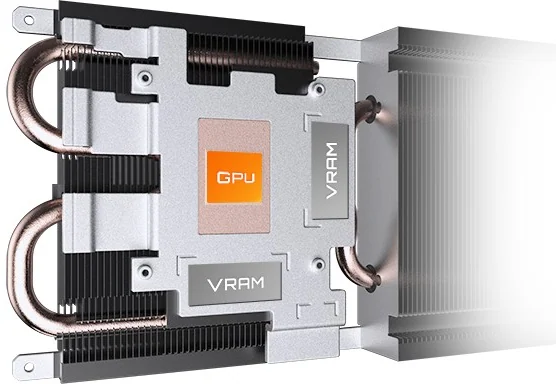

• Copper plate and composite copper heat pipes - A copper plate contacts the GPU directly and composite copper heat pipes quickly carry heat from the GPU and VRAM to the heatsink. This is the core of the WINDFORCE cooling system.

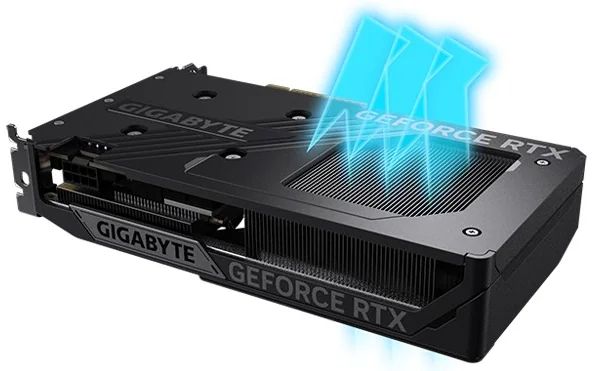

• Screen cooling - The extended heatsink lets air pass straight through the card instead of being trapped, giving better heat dissipation in a short 199 mm design.

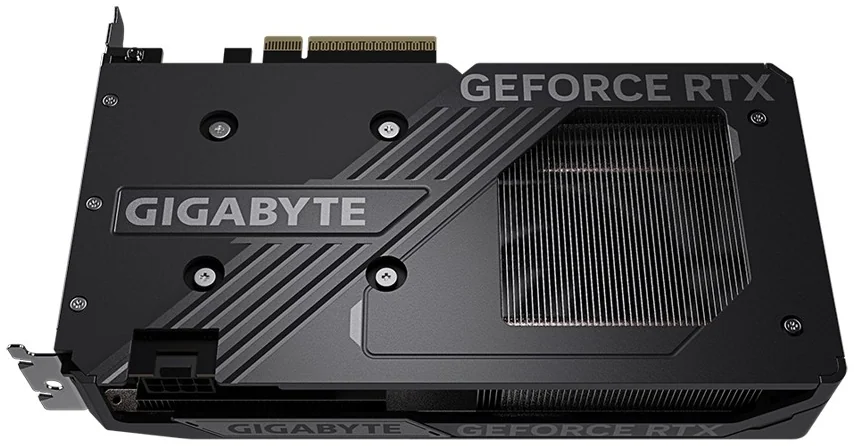

• Reinforced structure - The reinforced backplate is securely fastened to the I/O bracket, giving the card strong structural integrity and protecting the PCB.

• Hawk fans with alternate spinning - The blade design is inspired by the aerodynamics of an eagle wing: up to 53.6% more air pressure and 12.5% more air volume without extra noise. The two fans spin in opposite directions to reduce turbulence and increase airflow pressure.
• 3D Active Fan and graphene nano lubricant - Semi-passive cooling: the fans stay off at low load or in light games for silent operation. Graphene nano lubricant extends the life of the sleeve bearing fans by 2.1 times and keeps them quieter.
• Server-grade thermal conductive gel - Instead of traditional thermal pads, a highly deformable non-fluid gel cools the VRAM and MOSFETs, keeps full contact on uneven surfaces and resists deformation from transport or long-term use.

• NVIDIA Blackwell, DLSS 4.5 and ray tracing - Fifth-generation Tensor Cores and fourth-generation RT Cores power DLSS 4.5 with Dynamic Multi Frame Generation, full ray tracing with neural rendering, NVIDIA Reflex low latency and NVIDIA Studio and Broadcast tools.

Specifications

In the box

• Graphics card
• Quick guide
