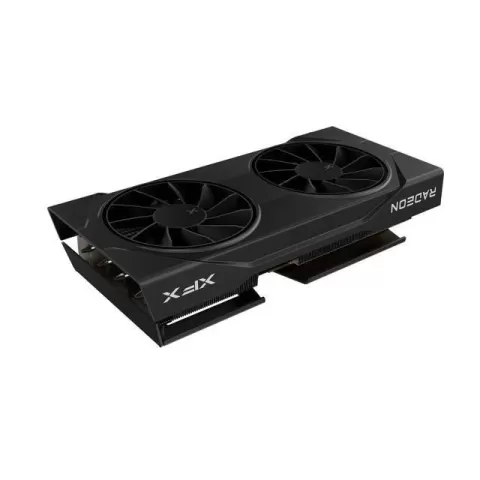

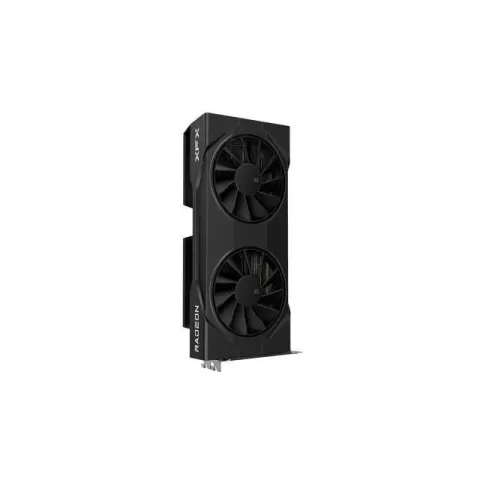

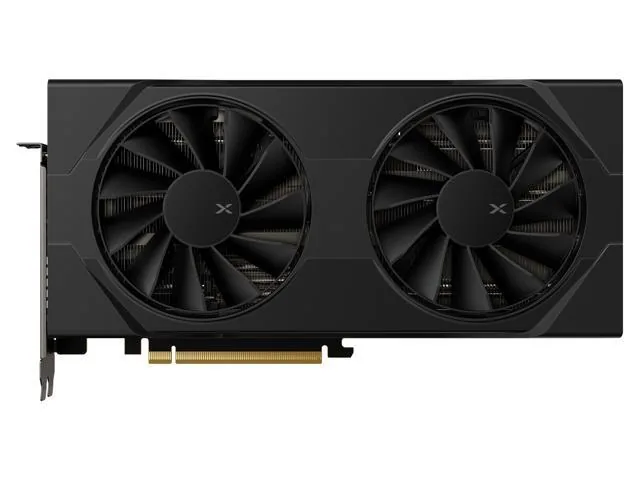

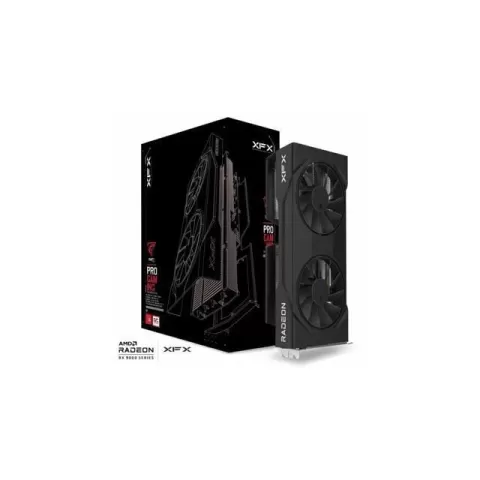

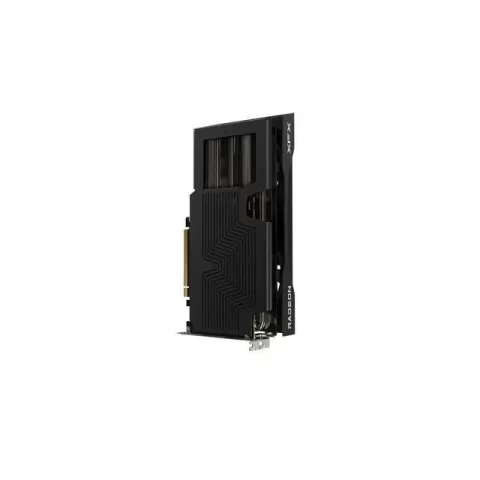

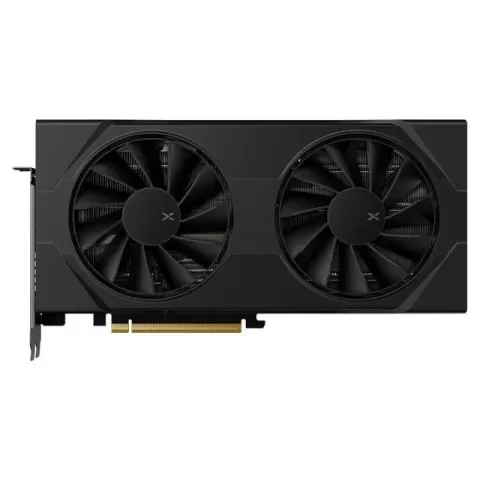

Video Card XFX Swift Radeon RX 9060 XT OC Gaming Edition black RX-96TSW16BQ

XFX Swift Radeon RX 9060 XT OC 16GB GDDR6 Graphics Card

The XFX Swift Radeon RX 9060 XT OC is a gaming graphics card on the AMD RDNA 4 architecture with 16GB of GDDR6 memory, in a compact dual-fan design. It delivers smooth 1080p and 1440p gaming with FidelityFX Super Resolution 4 and HYPR-RX support, and a low power draw that allows a 550W PSU.

Architecture & performance

The card is built on the AMD Radeon RX 9060 XT GPU on the RDNA 4 architecture with 2048 stream processors and 32 compute units that include Ray Tracing and AI accelerators. The Game Clock is 2780MHz and the Boost Clock reaches up to 3320MHz. Enabling AMD HYPR-RX in one click combines all performance-boosting and latency-reducing technologies.

Memory & connectivity

It is equipped with 16GB of GDDR6 memory on a 128-bit interface at 20Gbps, with 340 GB/s of bandwidth and AMD Infinity Cache technology. The display array includes two DisplayPort 2.1 ports and one HDMI 2.1 port. The card runs on a PCI Express 5.0 interface.

Compact Swift cooling

The Swift cooling system uses dual fans with double ball bearings, a nickel-plated copper cold plate and 6mm heat pipes for efficient heat dissipation. The Zero dB system stops the fans under light loads for silent operation. The compact two-slot design fits a wide range of systems.

AMD technologies

The card supports AMD FidelityFX Super Resolution 4 for AI-based upscaling, AMD Radeon Anti-Lag, AMD Freesync, Microsoft DirectX 12 Ultimate and AV1 encode/decode. A 550W or higher power supply is recommended.
