Video Card Intel Arc Pro A50 6GB GDDR6 23P6PC00BA10P

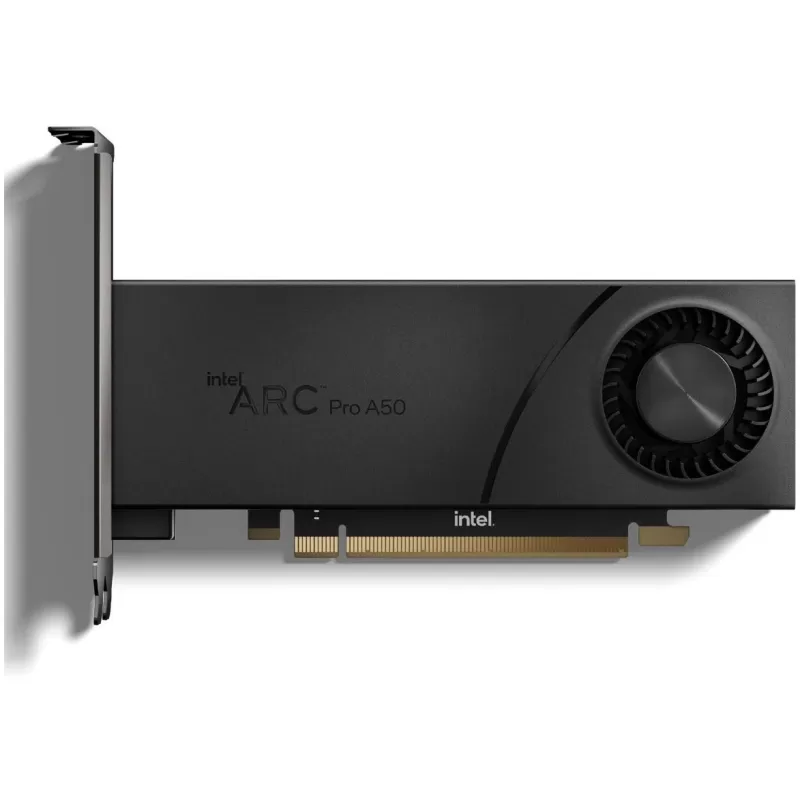

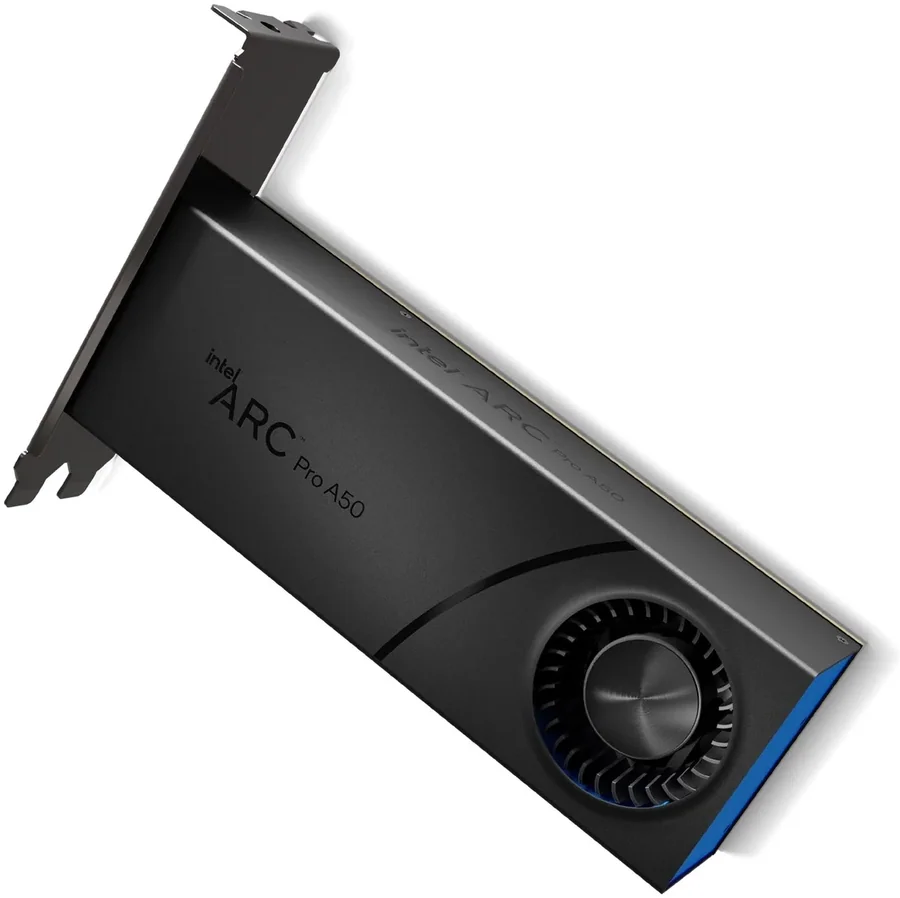

Intel Arc Pro A50 6GB GDDR6 Graphics Card

The Intel Arc Pro A50 is a professional workstation graphics card based on the Xe HPG (Alchemist) architecture. It targets 2D and 3D CAD/BIM, design, image and video editing and real-time rendering, and carries software certifications from professional application vendors.

The card has 8 Xe-cores with ray tracing units and XMX AI engines, 6GB of GDDR6 memory and four mini-DisplayPort 2.0 outputs. It draws only up to 75W, needs no extra power connector, and its low-profile dual-slot design also fits compact workstations.

Key features

• Four high-resolution displays - Four mini-DisplayPort 2.0 outputs with audio and latching: up to 4 x 4K displays at 60Hz, or 2 x 8K displays at 60Hz.
• Ray tracing and AI acceleration - 8 ray tracing units and 128 XMX engines accelerate realistic rendering and AI workloads, with up to 5.02 TFLOPS of FP32 performance.
• 6GB GDDR6 - 6GB of GDDR6 memory on a 96-bit interface with 192GB/s bandwidth for large models and projects.
• Hardware AV1 encoding - Full hardware encode and decode of AV1, HEVC, H.264 and VP9 speeds up video editing and export.
• 75W, no power cable - Peak total board power of 75W, no auxiliary power connector, and a minimum 350W system PSU.
• Compact form factor - A low-profile dual-slot card, 168 mm long, with additional end brackets from Intel to fit a wide range of systems.

Specifications

In the box

• Intel Arc Pro A50 graphics card
• Additional end brackets
