Video Card Nvidia L40S 48GB GDDR6 Passive PCIe 900-2G133-0080-000

Graphics Card Nvidia L40S 48GB GDDR6 Passive PCIe

The NVIDIA L40S is a universal data center GPU based on the Ada Lovelace architecture. It combines AI, graphics and media performance and suits LLM and generative AI training and inference, 3D rendering, NVIDIA Omniverse and virtual workstations.

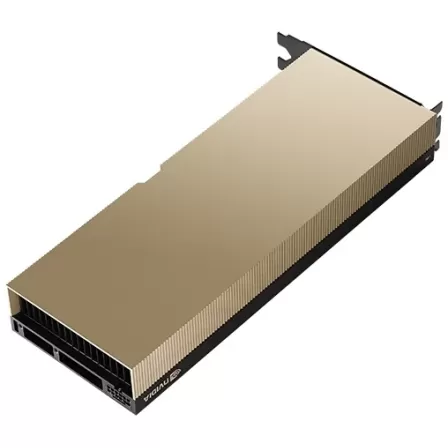

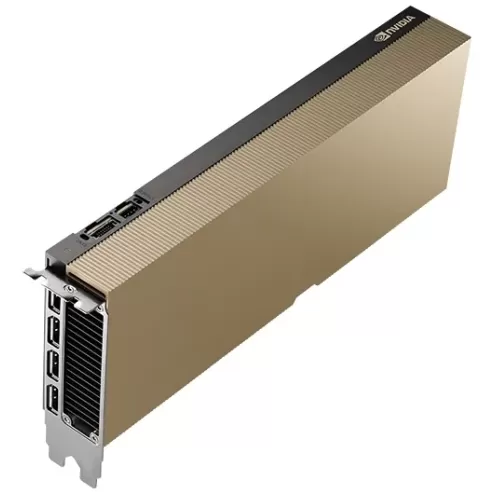

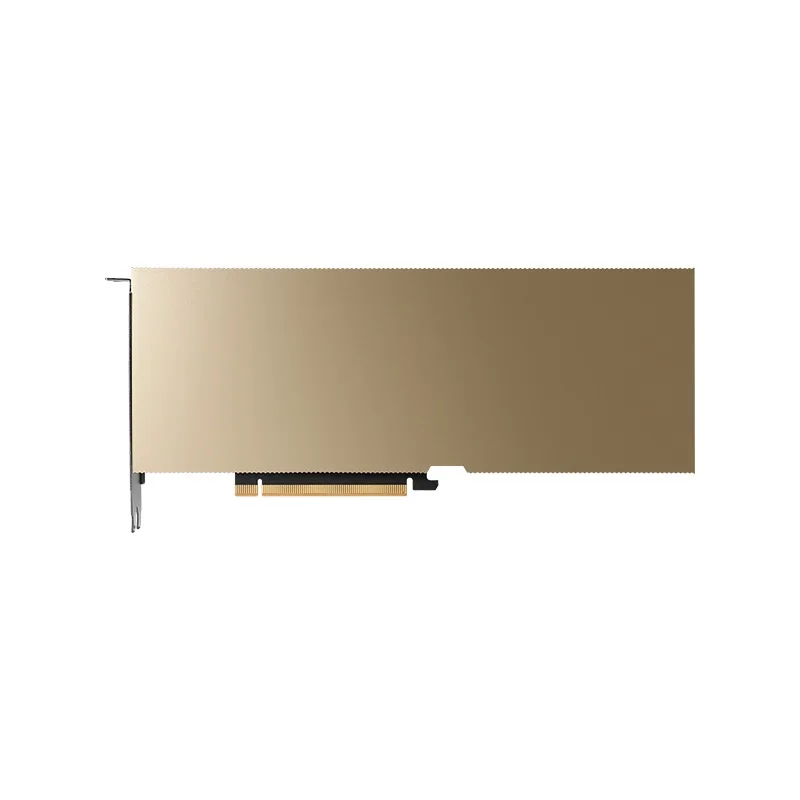

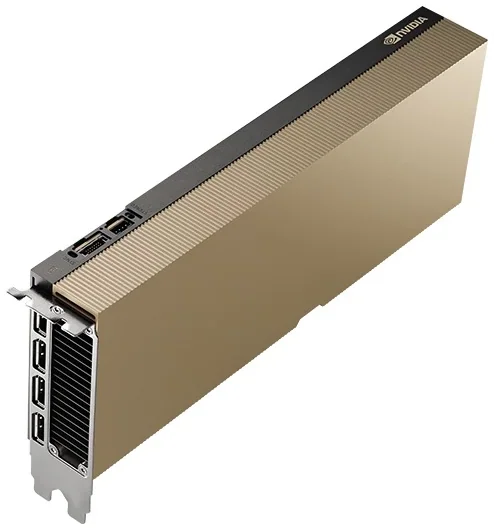

The card is full-height and 10.5 inches long, takes two slots and connects over PCIe Gen4 x16. It draws up to 350W through a 16-pin connector and is passively cooled, relying on server airflow.

Key features

• 48GB of memory - 48GB of GDDR6 with ECC on a 384-bit interface and 864GB/s of bandwidth for large models and complex scenes.
• Fourth-generation Tensor Cores - 568 Tensor Cores with FP8 support: up to 1,466 TFLOPS FP8 and 733 TFLOPS FP16 (with sparsity) for training and inference.
• Rendering and ray tracing - 142 third-generation RT Cores with 212 TFLOPS, and 18,176 CUDA cores with 91.6 TFLOPS FP32.
• Media - 3 NVENC encoders and 3 NVDEC decoders with AV1 support.
• Virtualization and security - Support for NVIDIA vGPU and SR-IOV with 32 virtual functions, Secure Boot with Root of Trust and NEBS Level 3.

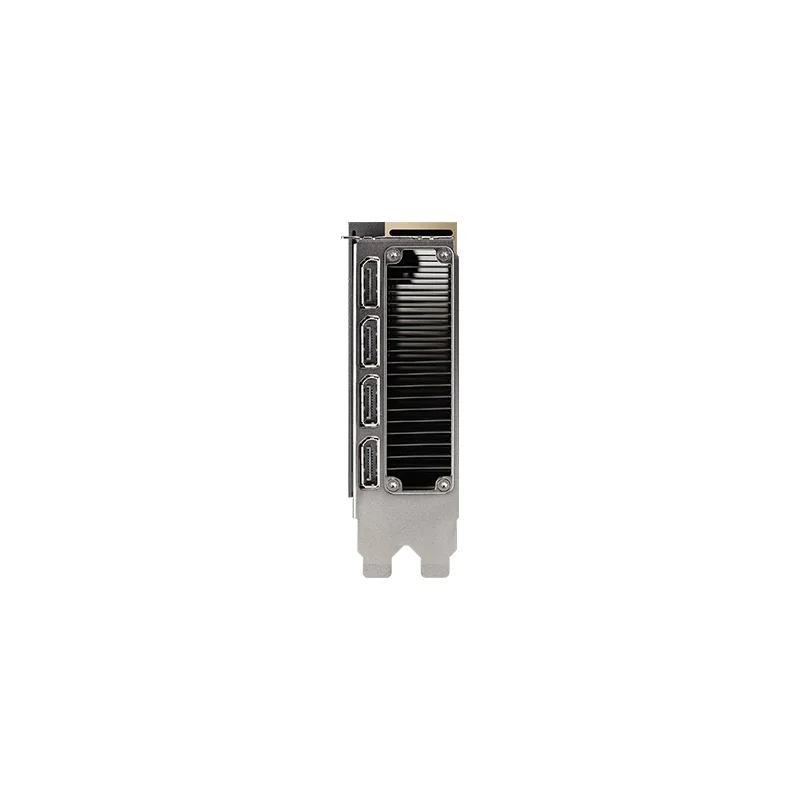

• Four DisplayPort outputs - Four DisplayPort 1.4a outputs. Display is off in the default mode and can be enabled by configuration.

Specifications
