Siklu AX-SRG-10G

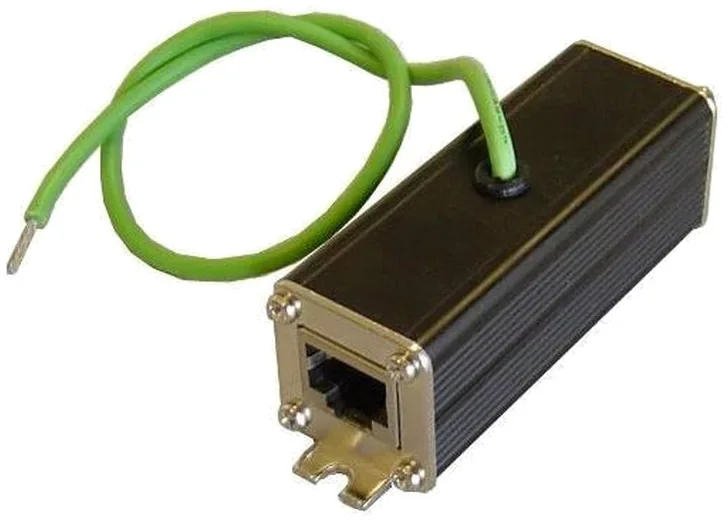

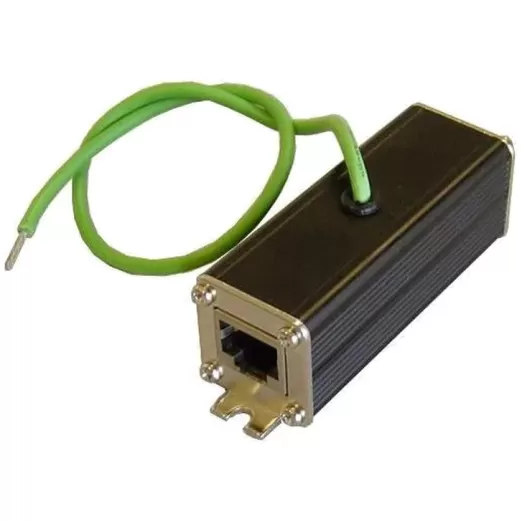

Siklu AX-SRG-10G Indoor Network Surge Protector

The Siklu AX-SRG-10G is an Ethernet/PoE surge protector for indoor installation, between the outdoor radio cable and the switch or PoE injector. It protects the indoor equipment from surges coming from the radio and the rooftop cable.

The protector supports 1Gbps and 10Gbps over CAT5e, CAT6 and CAT6a cables and passes PoE power to IEEE 802.3af, at and bt. The cast aluminum housing with shielded RJ-45 jacks suppresses noise, and it has integrated mounting brackets, DIN rail compatibility and UL 497B approval.

Key features

• 10Gbps and PoE - 1Gbps and 10Gbps over CAT5e, CAT6 and CAT6a cables, with PoE pass-through to IEEE 802.3af, at and bt.
• Per-pair protection - Over-current protection on each pair (1,2/3,6 and 4,5/7,8), 2.5A nominal current per pair and up to 10kA discharge current line to ground.
• Shielded housing - Cast aluminum housing and shielded RJ-45 jacks for EMI noise suppression, with an attached ground wire.
• Flexible installation - Integrated mounting brackets, DIN rail compatibility and UL 497B approval.

Specifications
