GESHER Siklu EtherHaul 1200FX ODU TX Low EH-1200FX-ODU-L-EXT Color:white

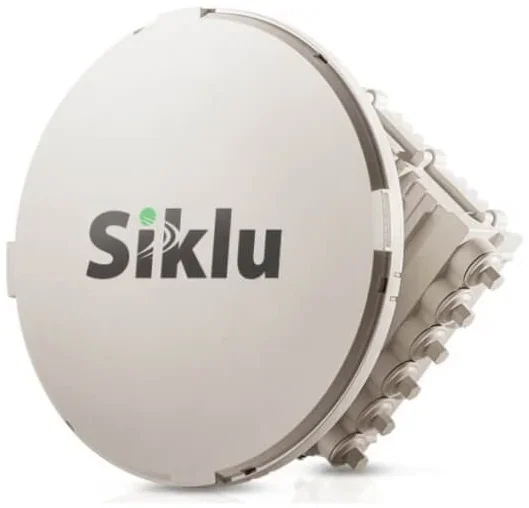

Siklu EtherHaul 1200FX ODU TX Low Wireless Bridge Unit

The Siklu EtherHaul 1200FX is a millimetre-wave radio for point-to-point links in the 71-76GHz and 81-86GHz E-band using FDD. It delivers up to 1000Mbps full duplex and suits backhaul, fibre extension, building-to-building links, security camera networks and business broadband connectivity.

This unit is the TX Low side of the link (transmitting at 71-76GHz), with an adapter for an external antenna. A complete link needs a matching TX High unit (EH-1200FX-ODU-H-EXT) and an antenna for each side, sold separately. The unit offers 2 GbE ports, PoE+ power, AES encryption and an IP67 enclosure for operation from -45 to +55°C.

Key features

• 1Gbps E-band link - Operates at 71-76GHz and 81-86GHz with FDD, 1000Mbps full duplex.
• TX Low side - Transmits in the 71-76GHz band, works with a matching TX High unit.
• Adaptive modulation - Hitless adaptive bandwidth, coding and modulation from QPSK to QAM64 with up to 25dB gain boost.
• Ethernet features - 802.1d transparent bridging, QoS, jumbo frames up to 16K, ring, daisy chain and mesh topologies.
• Security - AES 128 and 256-bit encryption of link traffic.
• Easy management - Web GUI managing both ends of the link, CLI, SNMPv2/3, TACACS+ and RADIUS.
