Cable SFP+ DAC Omada TL-SM5220-1M 10G 1m TL-SM5220-1M Color:black

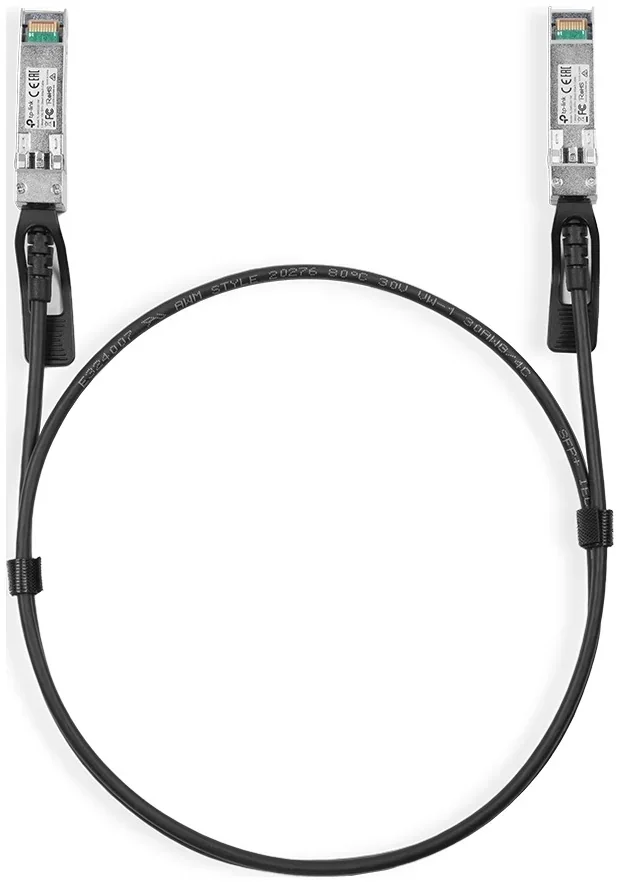

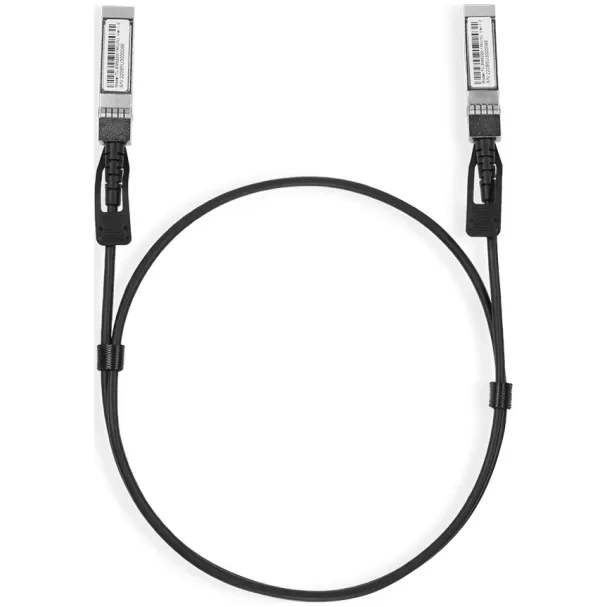

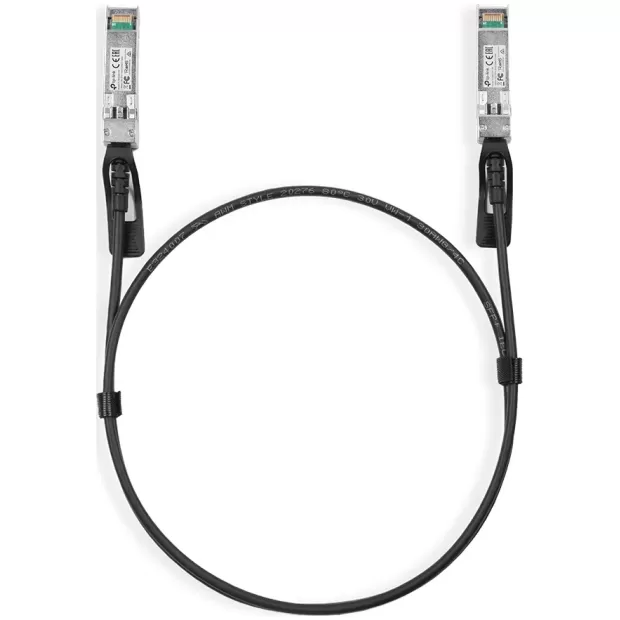

Omada TL-SM5220-1M 10G SFP+ DAC Cable 1m

The Omada TL-SM5220-1M by TP-Link is a passive twinax DAC cable 1 m long with an SFP+ connector built into each end. It carries 10 Gigabit Ethernet without separate optical modules or fiber patch cords, which makes it a cost-effective option for short links.

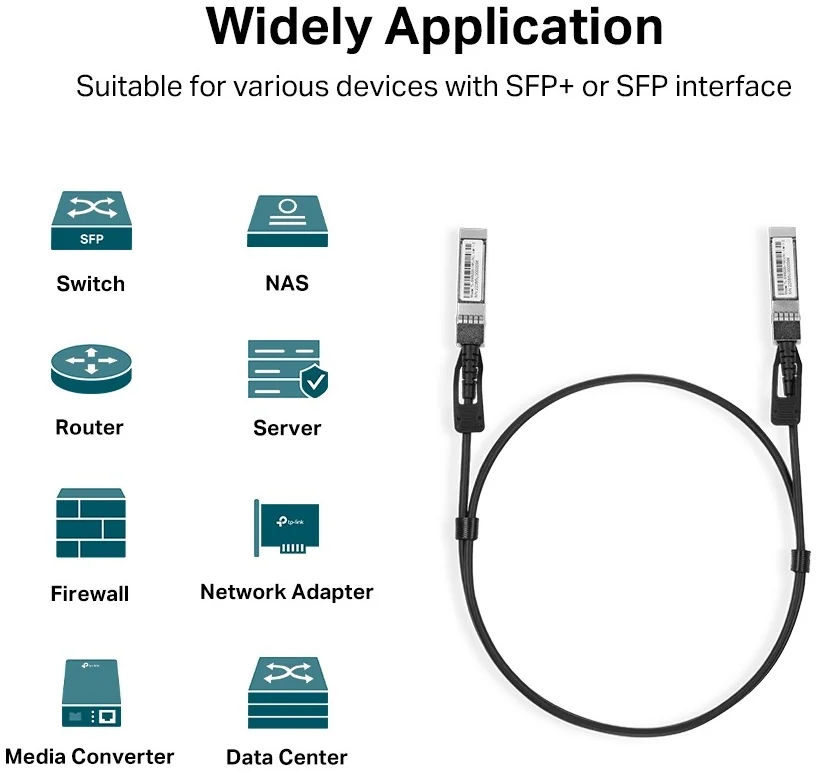

The cable connects switches, servers, NAS units, routers and network cards with SFP+ ports inside a rack or across adjacent racks. The conductor is silver-plated copper, and the cable operates at 0 to 70 degrees Celsius.

Key features

• SFP+ on both ends - Built-in SFP+ connectors on both sides, with no optical modules or fiber cable needed.
• 10Gbps for short runs - 1 m length for connections within a rack or to an adjacent rack.
• Easy to plug and unplug - Hot-swap and plug-and-play support, a sturdy connector that prevents accidental unplugging and a pull tab for easy removal.

• Silver-plated copper - Passive twinax conductor made of silver-plated copper in a bend-resistant cable.

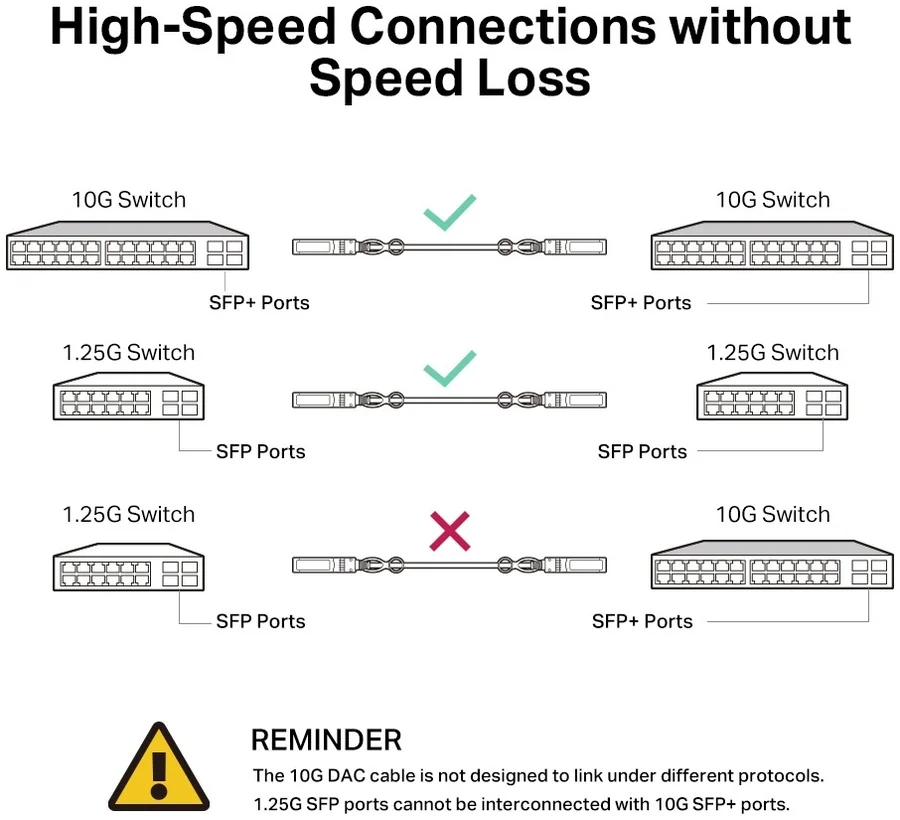

• Good to know - According to the manufacturer, a 10G DAC cable is not designed to link a 1.25G SFP port to a 10G SFP+ port. Both ends should run at the same rate.

Specifications
