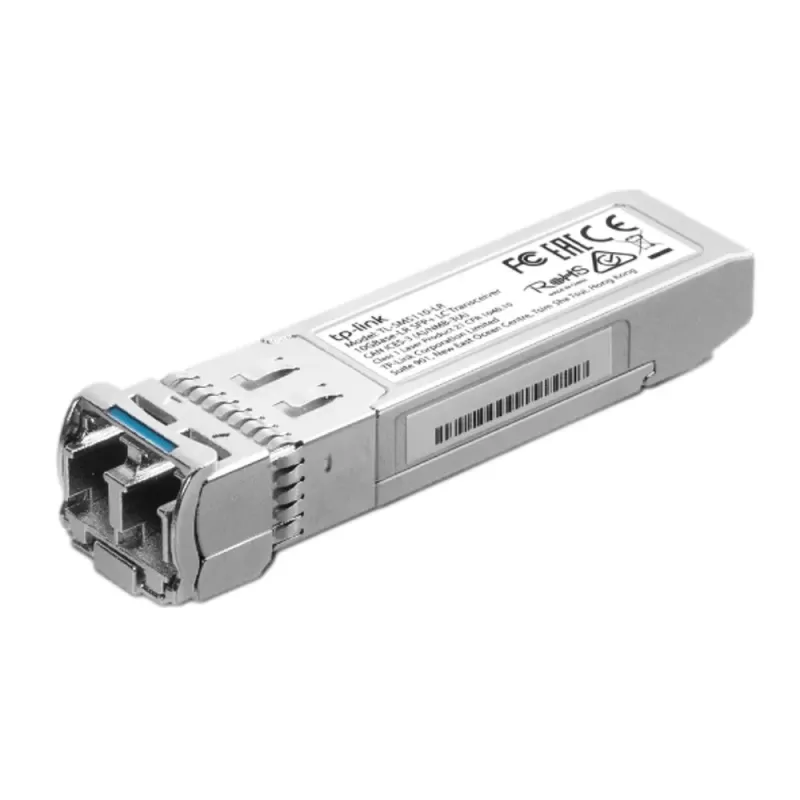

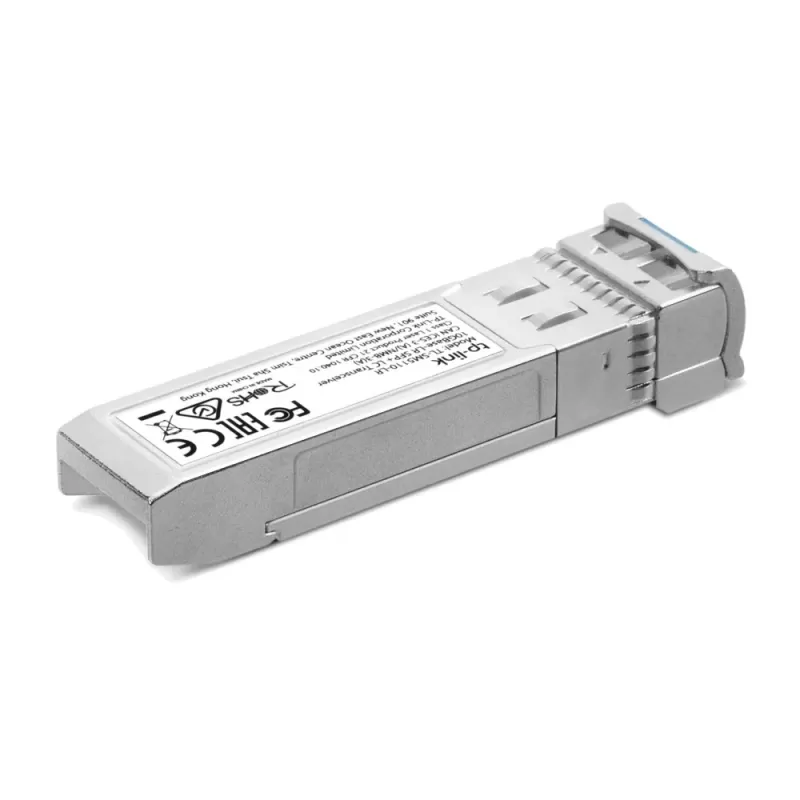

SFP module TP-Link TL-SM5110-LR SFP+ LC Transceiver SM5110-LR

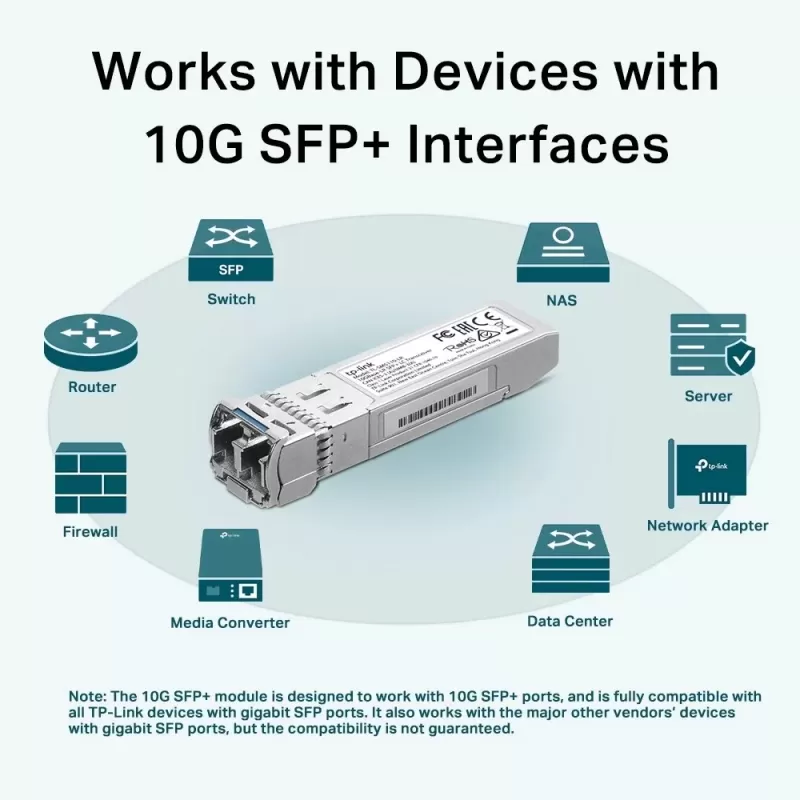

The TL-SM5110-LR is an SFP+ module for exceptionally fast communication at 10Gbps, over single-mode fiber for distances of up to 10 km. Compatible with the SFP+ MSA standard, supports DDM, and works with switches featuring 10G ports such as the TL-SG3428X and the JetStream series. An ideal solution for linking enterprise environments, server farms, and remote communication sites.

• SFP+ module at 10Gbps speed – exceptionally fast communication
• Impressive range of up to 10 km – for single-mode 9/125μm fiber
• Compliant with the IEEE 802.3ae standard – seamless connectivity with a wide range of switches and equipment
• Transmission at 1310nm wavelength – stable and reliable over long distances
• Full DDM support – smart monitoring of operating parameters
• Hot Swappable – replacement during operation with no downtime required
• Compact and SFP+ MSA compliant – suited to most enterprise systems

• Standards: IEEE 802.3ae
• Protocol: TCP/IP
• Wavelength: 1310nm
• Maximum range: up to 10 km
• Speed: 10Gbps
• Fiber type: single-mode (9/125μm)
• Connector: LC Duplex
• Hardware features: DDM, Hot Swappable, SFP+ MSA compliant
• Power supply: 3.3V
• Dimensions: 56.7×13.9×10.35 mm
• Operating temperature: 0°C to 70°C
• Warranty: 3 years

Package includes:

• TL-SM5110-LR SFP+ module
• Installation guide
