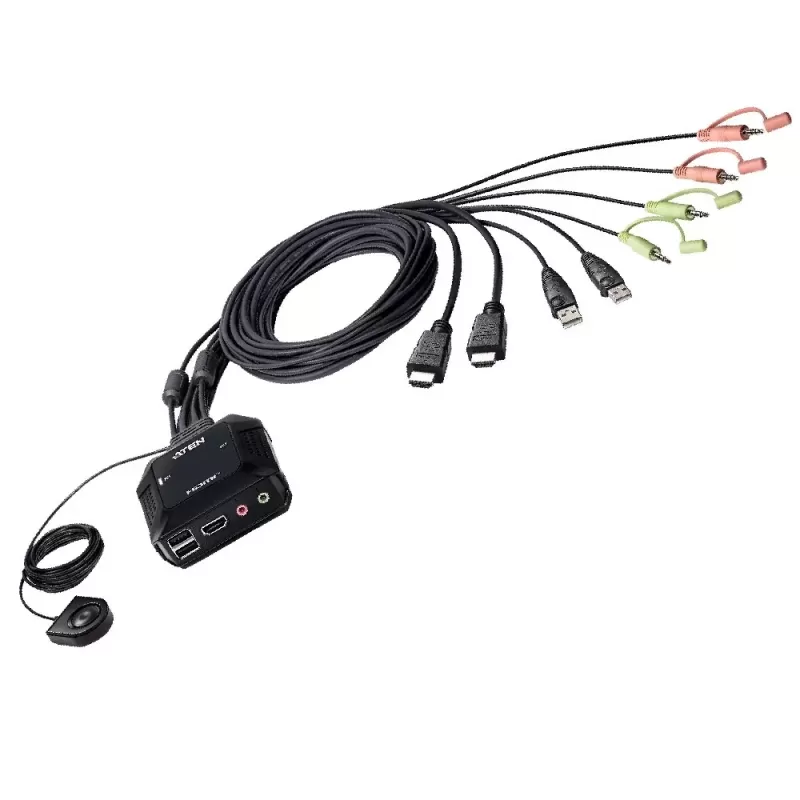

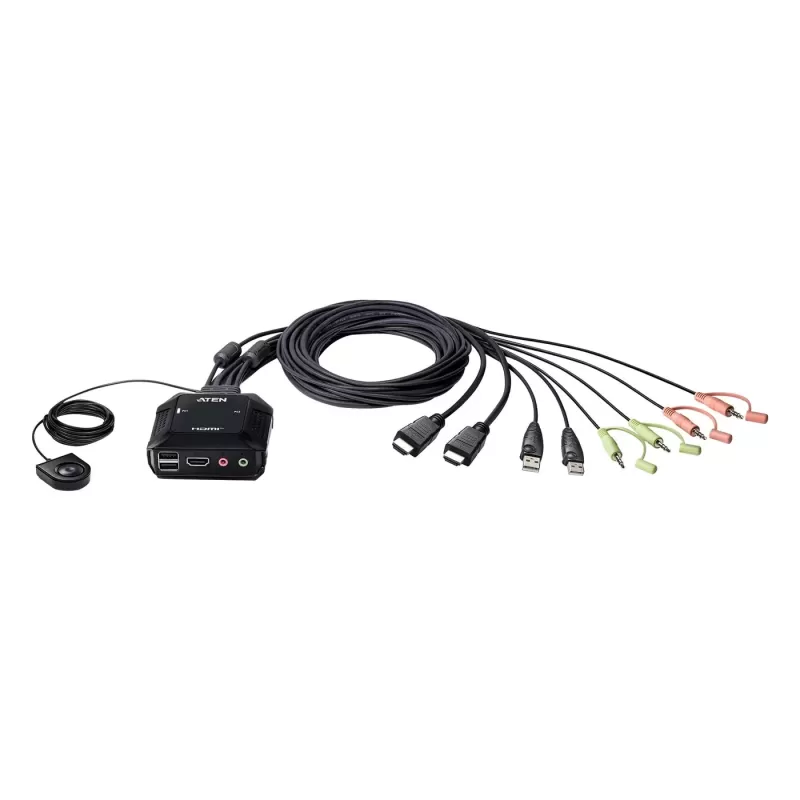

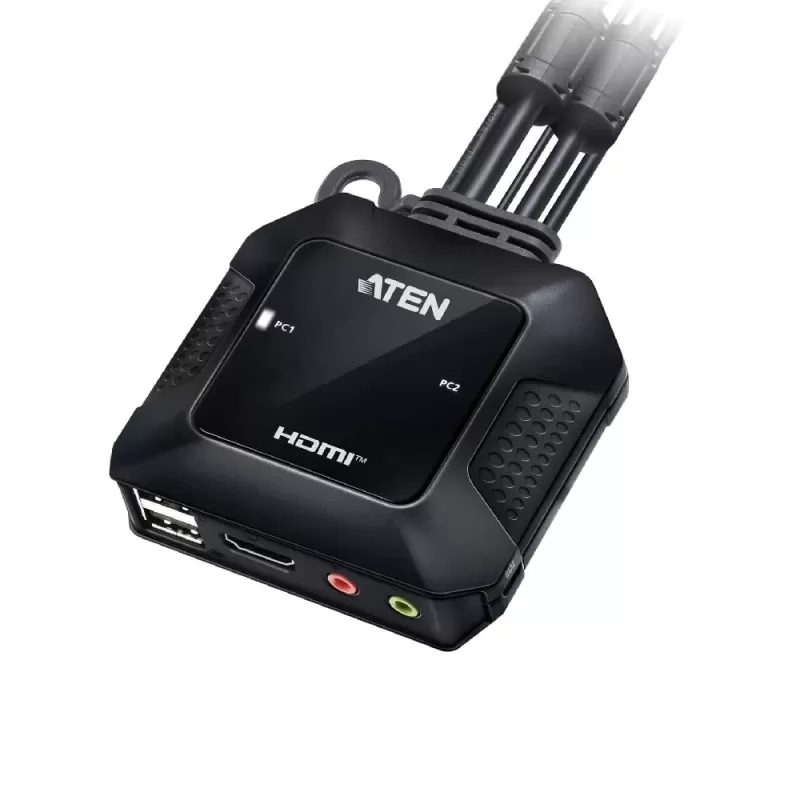

KVM switch ATEN CS22H 2 Port 4K HDMI USB KVM CS22H Color:black

The ATEN CS22H is a smart, cost-effective KVM solution that combines control of two Computers with HDMI output, using a single keyboard, mouse, and monitor. It supports true 4K, includes two-channel audio, and comes with built-in cables and an external control switch for maximum convenience. Its compact design with a desktop clip is ideal for tidy, efficient work environments.

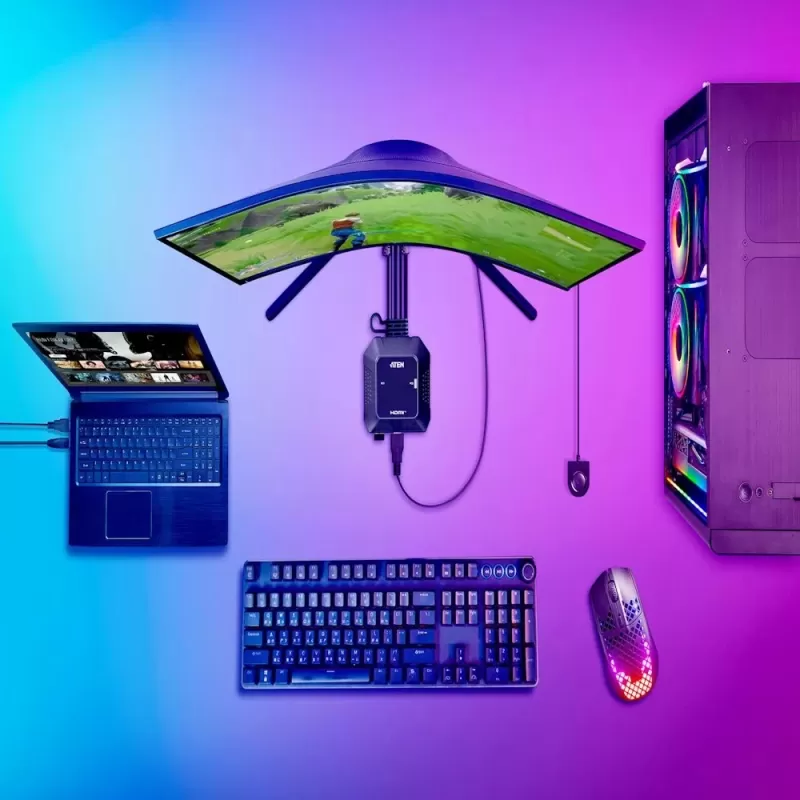

• Control two Computers with HDMI – via a single monitor, keyboard, and mouse
• Maximum video quality: 4K DCI (4096×2160 @ 60Hz)
• Convenient control via external switch (1.8m)
• Audio support – including microphone input and headphone output

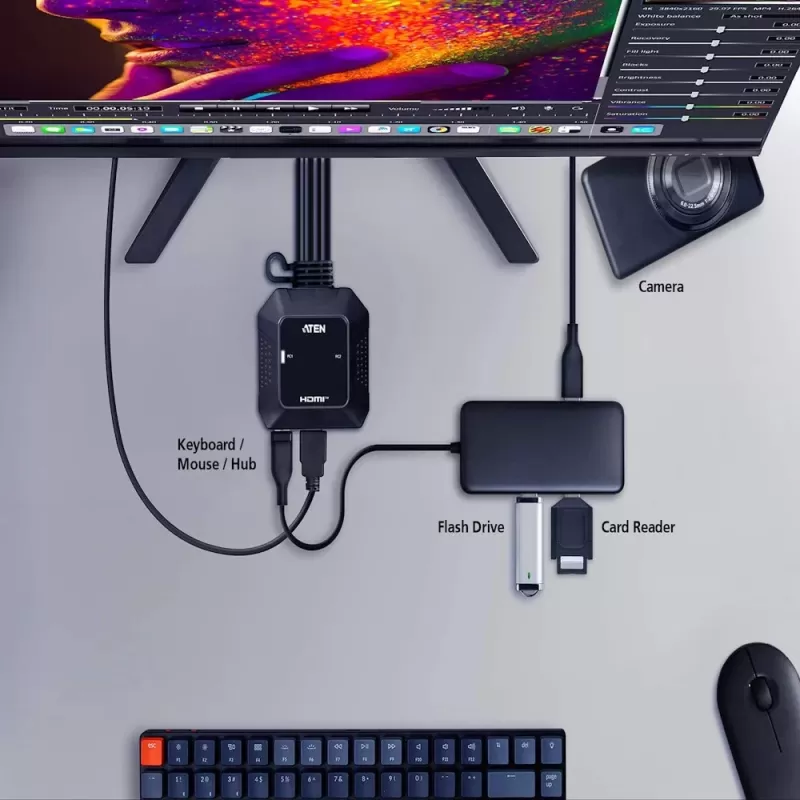

• USB Sharing support – peripherals available to both Computers
• Full compatibility with Windows, Mac, and Linux
• Bus: powered design – no external power supply required

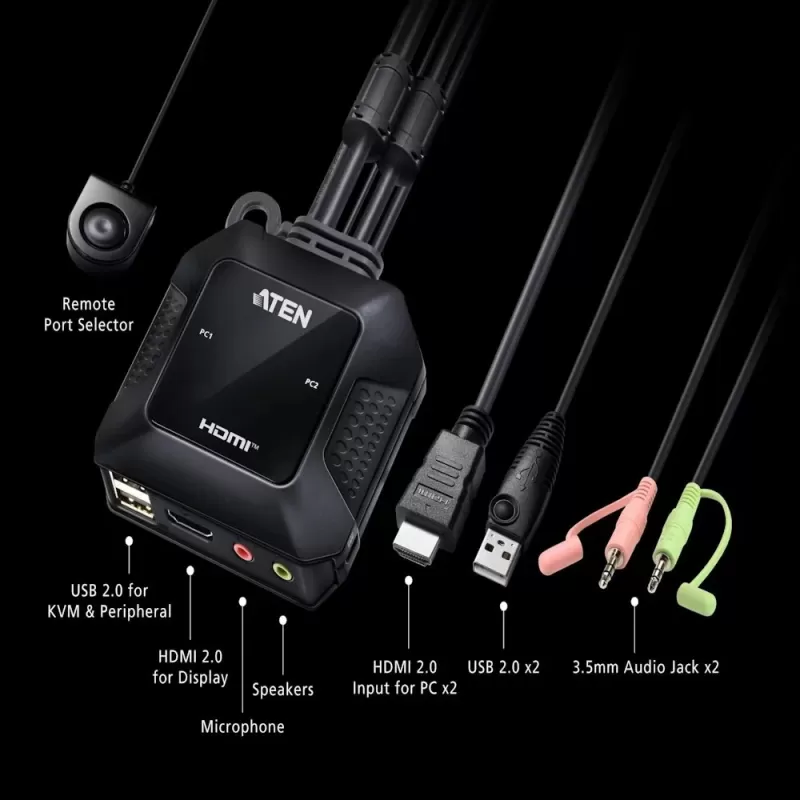

Connections – console

• HDMI: 1 x female
• USB: 2 x Type-A female (keyboard and mouse)
• Audio: 1 x 3.5mm speaker (green), 1 x 3.5mm microphone (pink)Connections – Computers (KVM)
• HDMI: 2 x male
• USB: 2 x Type-A male
• Audio: 2 x 3.5mm (speaker + microphone)Computer selection
• External switch (1.8m)
• Keyboard/mouse controlVideo support
• Up to 4096×2160 @ 60Hz
• Also supports 2560×1440 @ 144Hz
• HDMI and HDCP compliantPower consumption
• DC 5V: 1.4W
• Option to connect an external power supply via USB Micro-BDimensions and weight
• Dimensions: 8.34 × 8.42 × 3.04cm
• Weight: 0.34kg
• Material: PlasticOperating temperature
• Operation: 0–50°C
• Storage: -20–60°C
• Humidity: 0–80% RH
• Warranty: 1 year

Package includes:

• CS22H KVM switch with built-in cables
• External remote selector
• Installation guide
