KVM switch ATEN KL1516Ai 16P CAT5 19"-LCD KVM KL1516Ai 16P CAT5 LCD KVM ATEN

The ATEN KL1516AiN is a smart KVM switch for centralized management of up to 16 servers via a 19-inch LCD screen, local console, or remote IP connection. With a space-saving Dual Rail structure, support for all platforms, high security, and intuitive operation – it's the ideal solution for managing professional server rooms.

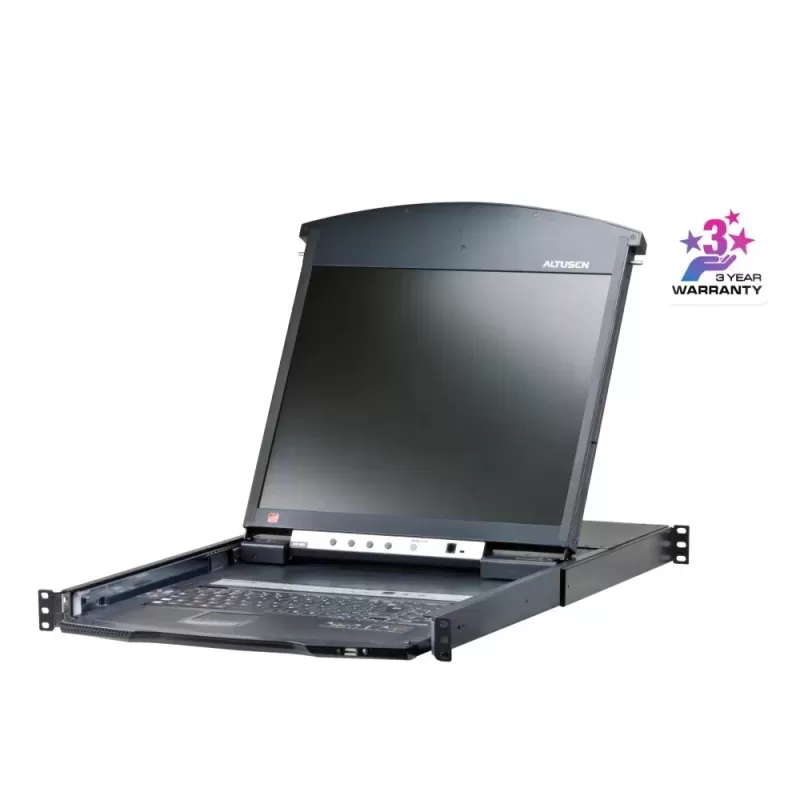

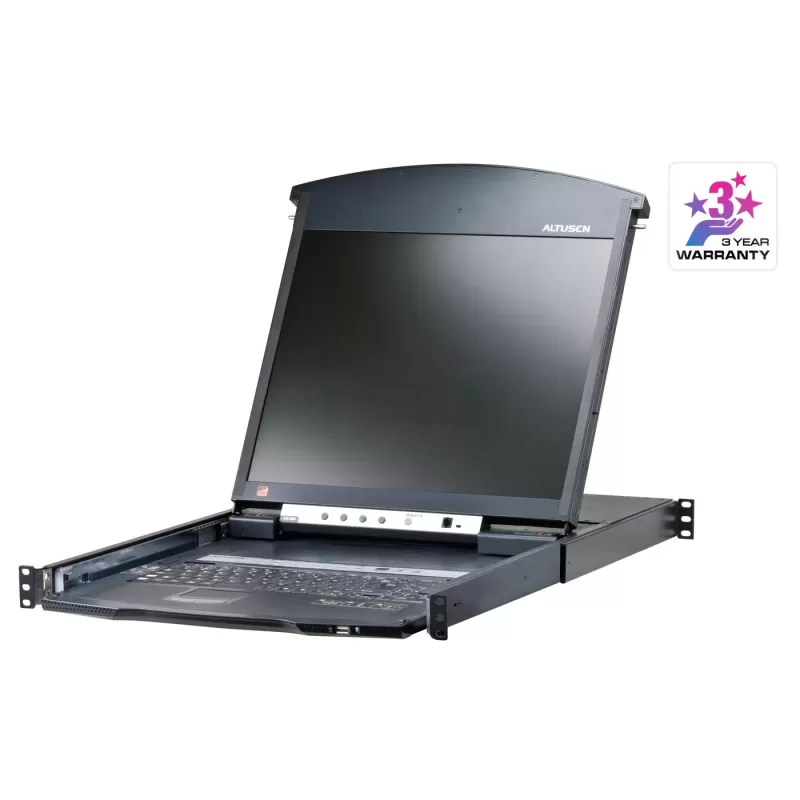

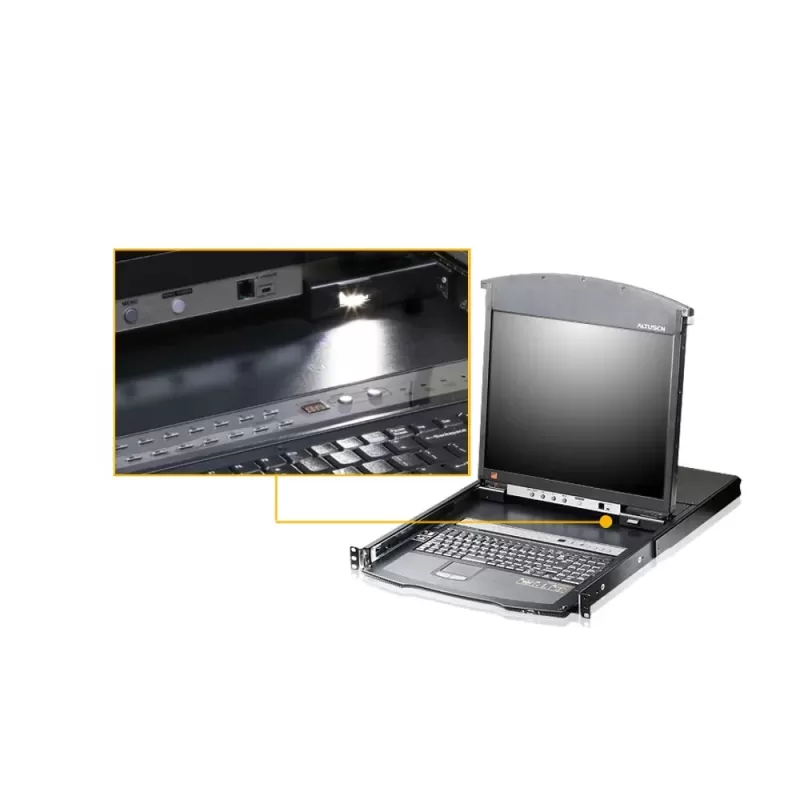

• Built: in 19" LCD screen with keyboard and touchpad – in a slide-out Dual Rail structure
• Control up to 16 servers via a local interface or secure IP access
• Panel Array Mode display – for simultaneous viewing of all servers
• Compact Cat5e/6 connection – with support for USB, PS/2, Serial, and Sun
• Secure access with TLS 1.2 encryption, LDAP, RADIUS, AD authentication
• User: friendly operation via a Java-free web interface – including real-time notifications
• Support for 64 user accounts, 32 simultaneous connections, logging, and centralized management

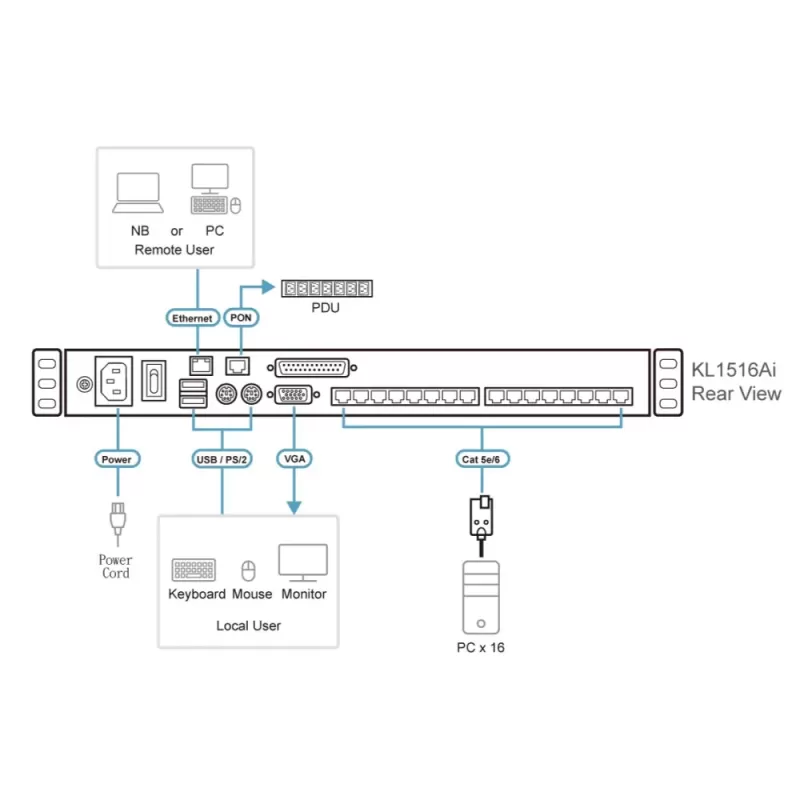

• Number of ports: 16 × RJ-45 (Cat 5e/6 to servers via adapters)
• Access: 1 local + 1 remote (IP)
• 19" TFT-LCD
• Resolution: 1280×1024 @75Hz
• Brightness: 250cd/m²
• Contrast: 1000:1
• Viewing angle: 170° horizontal, 160° vertical
• 1920×1200 @60Hz (up to 30m)
• 1600×1200 @60Hz (up to 40m)
• 1280×1024 @75Hz (up to 50m)
• External console: VGA + USB/PS2 + USB port for mouse
• Web GUI
• OSD / Hotkeys / Pushbuttons
• Support for eco DC / CC2000
• Port Share / Adapter ID / Log Server
• TLS 1.2, RSA 2048-bit
• External authentication: RADIUS, LDAP, AD
• MAC/IP filtering, per-user permission management
• Approx. 25.4W @220V
• Dimensions: 48.00 × 70.12 × 4.40cm
• Weight: 15.40kg
• Operating temperature: 0–40°C
• Storage temperature: -20–60°C
• Humidity: up to 80%, non-condensing
• Warranty: 1 year

Package includes:

• KL1516AiN unit with 19" screen
• Power cable
• Rack cabinet mounting kit
• User manual
• Management software disc
