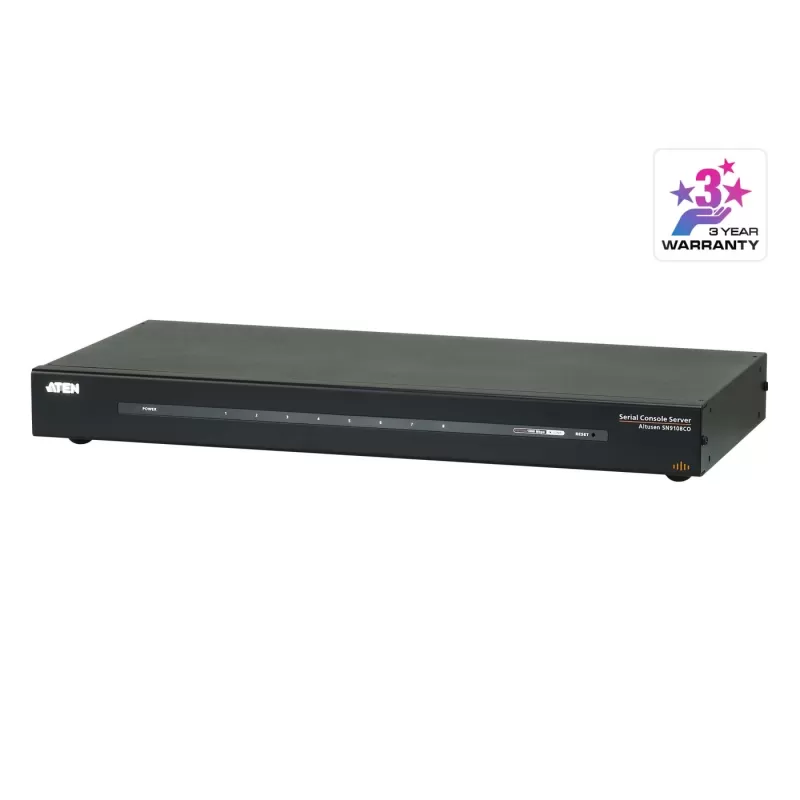

KVM switch ATEN SN9108CO 8-PORT SERIAL CONSOL SN9108CO Color:black

The SN9108CO from ATEN is a sophisticated serial console server that enables remote control of 8 serial devices (RS-232) over an IP network. It includes an intuitive interface, support for secure protocols (SSH, TLS 1.2, SNMP, and more), and operation in Console Direct, Virtual Modem, Real COM, and other modes. It's especially well suited for monitoring and managing communication equipment, servers, security systems, UPS units, and industrial equipment – even when the main network is unavailable.

• Control of 8 RS-232 devices over the network (In-Band / Out-of-Band)
• Support for management protocols: Telnet, SSH, Web GUI, Virtual Modem
• Automatic DTE / DCE detection and Cisco configuration support
• Multilingual Web interface + CLI + SNMP and Syslog support
• User and permission management by port, including various access mode controls
• Advanced encryption and security: TLS 1.2, RSA 2048-bit, IP/MAC Filter, FIPS 140-2
• Compact 1U form factor, Cat 5 (RJ-45) connection, low power consumption

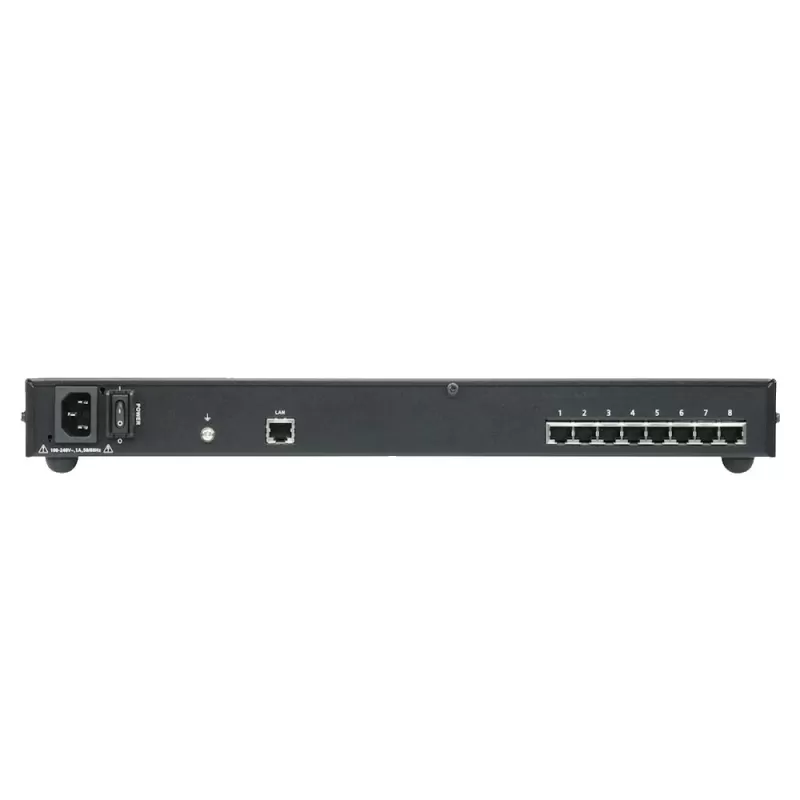

Connections

• Serial ports: 8 × RJ-45
• Network: 1 × RJ-45 10/100/1000 Mbps
• Power: 1 × IEC 60320/C14
• Buttons: Power + ResetSupported operating modes
• Console Management
• Console Direct
• Real COM
• TCP / UDP Server / Client
• Virtual ModemRemote access
• Web GUI (including support for modern browsers)
• Telnet / SSH
• Java Viewer / WebClient
• CLI
• Up to 16 simultaneous connections per portSecurity features
• TLS 1.2, RSA 2048
• Authentication: RADIUS, TACACS+, LDAP / Active Directory, Kerberos
• FIPS 140-2
• IP/MAC Filtering
• Policy: based security level configurationInterface and management
• System management via browser / SSH / Telnet
• SNMP v1/2c/3 support
• Email / SNMP Trap alerts
• NTP / Syslog
• Configuration backup/restore, firmware updateStatus verification and monitoring
• Online/Offline port detection
• Response Check display
• Alert Strings support
• Command restriction by userAdditional features
• Sun Break Safe support
• Internal log view, copy/paste, macros
• Real COM support for Windows and Real TTY for LinuxPhysical and environment
• Build: metal
• Dimensions: 43.72 × 21.76 × 4.40 cm
• Weight: 3.12 kg
• Operating temperature: 0–40°C
• Storage temperature: -20–60°C
• Humidity: up to 80%, non-condensing
• Power consumption: 4.9W @ 110V, 4.8W @ 220V
• Warranty: one year

Package includes:

• SN9108CO unit
• Power cable
• Rack installation kit
• Installation guide
