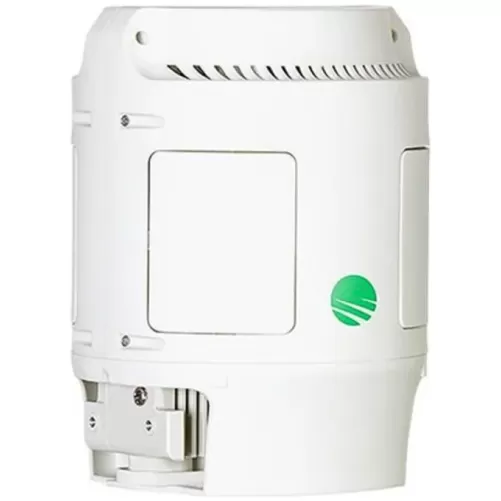

Siklu MultiHaul TG N366 MH-N366-CCP-PoE-MWB

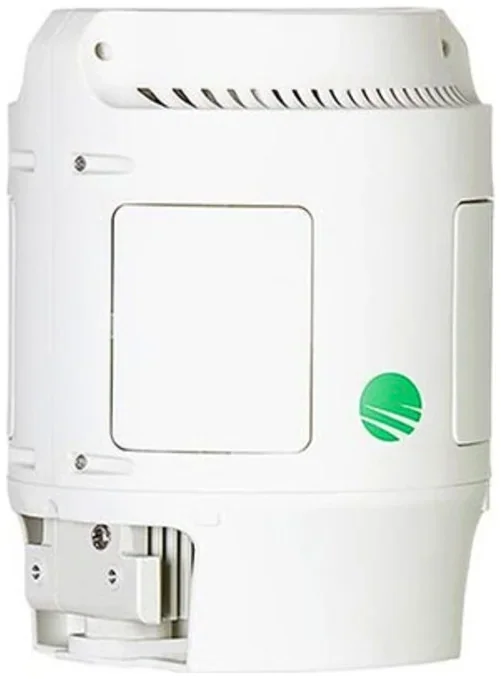

Siklu MultiHaul TG N366 60GHz 360 Degree Distribution Node

The Siklu MultiHaul TG N366 is a distribution node from Siklu's third-generation 60GHz point-to-multipoint family, Terragraph certified. One unit carries four independent 90 degree sectors with scanning antennas, covering 360 degrees and connecting to Terminal Units or other nodes in a mesh. Each sector delivers over 3,800Mbps, and a full node over 16Gbps. It is built for fixed wireless access, safe city and surveillance networks, Wi-Fi hotspot backhaul and building-to-building links.

The antennas align automatically with other units, and installation is designed for a single person. The node has an RJ45 port up to 10GbE with PoE input, a 1GbE RJ45 port with PoE output to power nearby equipment and a 10GbE SFP+ port, plus on-board GPS. Over-the-air traffic is AES-128 encrypted, and management is via web GUI, CLI or NETCONF. The enclosure is IP67 rated and operates from -45 to 55°C.

Key features

• 360 degree coverage - Four 90 degree sectors with 90 degree horizontal and 50 degree vertical scanning.
• Multi-gigabit capacity - Over 3,800Mbps per sector and over 16Gbps per node on 2160MHz channels.
• Terragraph and mesh - Terragraph certified, Layer 2 mesh with redundant paths for high reliability.
• Three ports - RJ45 up to 10GbE with PoE in, 1GbE RJ45 with PoE out and 10GbE SFP+.
• Interference immune - Narrow 60GHz beams and AES-128 encryption for secure links.
• Built for outdoors - IP67 enclosure and -45 to 55°C operating range.
