Module SFP+ D-Link DEM-432XT

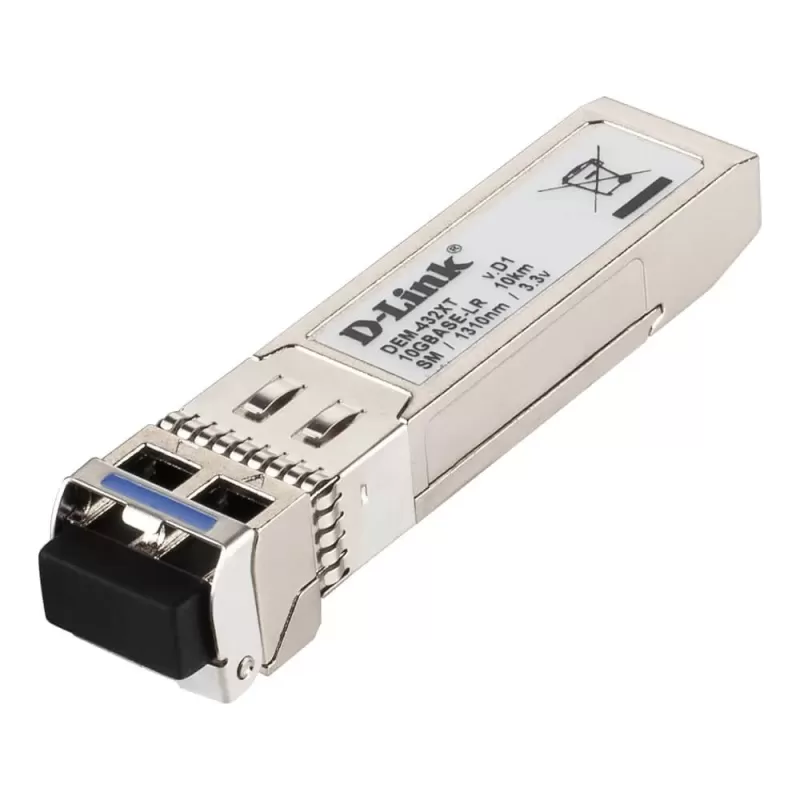

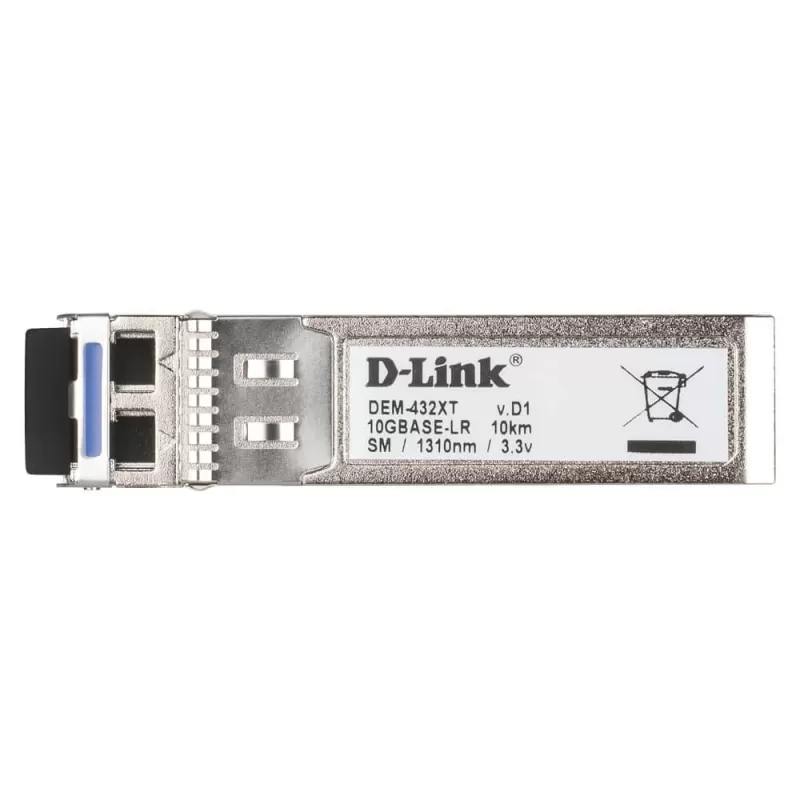

D-Link DEM-432XT 10GBASE-LR SFP+ Transceiver

The D-Link DEM-432XT is a 10GBASE-LR SFP+ optical transceiver that plugs into an SFP+ slot on a switch or server and provides a 10 Gigabit link over single-mode fibre. It works at 1310nm, uses a duplex LC connector and reaches up to 10 km, which suits links between buildings, floors and wiring closets.

The SFP+ form factor is smaller than older formats such as XFP and X2, uses less power and allows higher port density on the switch. The module is hot-pluggable and complies with IEEE 802.3ae and the MSA agreement.

Key features

• 10Gbps up to 10 km - 10GBASE-LR over 9/125 micron single-mode fibre gives a fast link over long distances across a campus or between nearby sites.
• Compact SFP+ form factor - The module is smaller than older XFP and X2 formats, uses less power and lets you fit more 10G ports on one switch.
• Hot-pluggable - You can insert or remove the module while the switch is running, without powering it down or interrupting the network.
• Standards compliance - Compliant with IEEE 802.3ae, the MSA agreement and Fibre Channel FC-PI 1200-SM-LL-L, and RoHS compliant.
• Easy identification - The blue bail latch makes LR modules easy to tell apart from other transceivers in the switch.
• High reliability - An MTBF of 4,650,000 hours and an operating range of 0 to 70 degrees Celsius.

Specifications
