optical D-Link SFP+ 10GBASE-SR 300M DDM DEM-431XT-DD

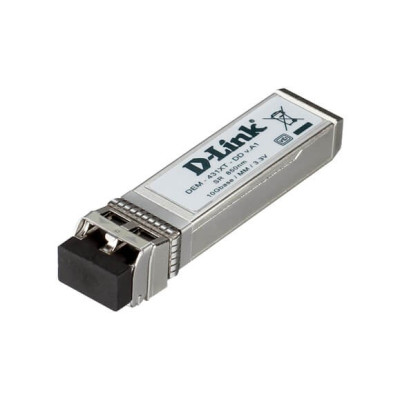

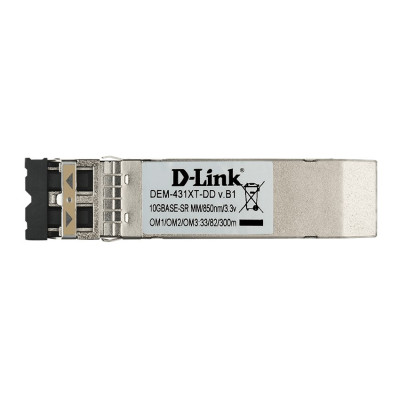

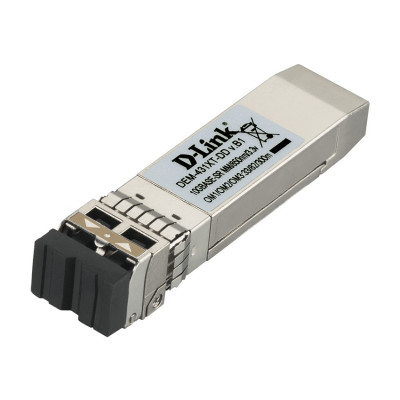

D-Link DEM-431XT-DD 10GBASE-SR SFP+ Transceiver with DDM

The D-Link DEM-431XT-DD is an SFP+ optical transceiver built to the 10GBASE-SR standard for 10 Gigabit links over multimode fiber. It has a duplex LC connector and operates at a wavelength of 850nm.

The transceiver supports Digital Diagnostics Monitoring (DDM) for tracking the optical parameters, is hot pluggable and complies with the MSA standard. It fits SFP+ ports in D-Link switches and in enterprise networks and data centers.

Key features

• 10 Gigabit over multimode fiber - The 10GBASE-SR standard (IEEE 802.3ae) delivers 10Gbps over 50/125 or 62.5/125 micron multimode fiber.
• Reach of up to 300 meters - Up to 300 meters over OM3 fiber, 82 meters over OM2 and 33 meters over OM1 (62.5 micron, 200MHz-km).
• DDM monitoring - Digital Diagnostics Monitoring support makes it possible to follow the optical signal levels from the switch.
• Hot pluggable - The transceiver can be replaced while the switch is running, and it complies with the MSA standard and RoHS.
