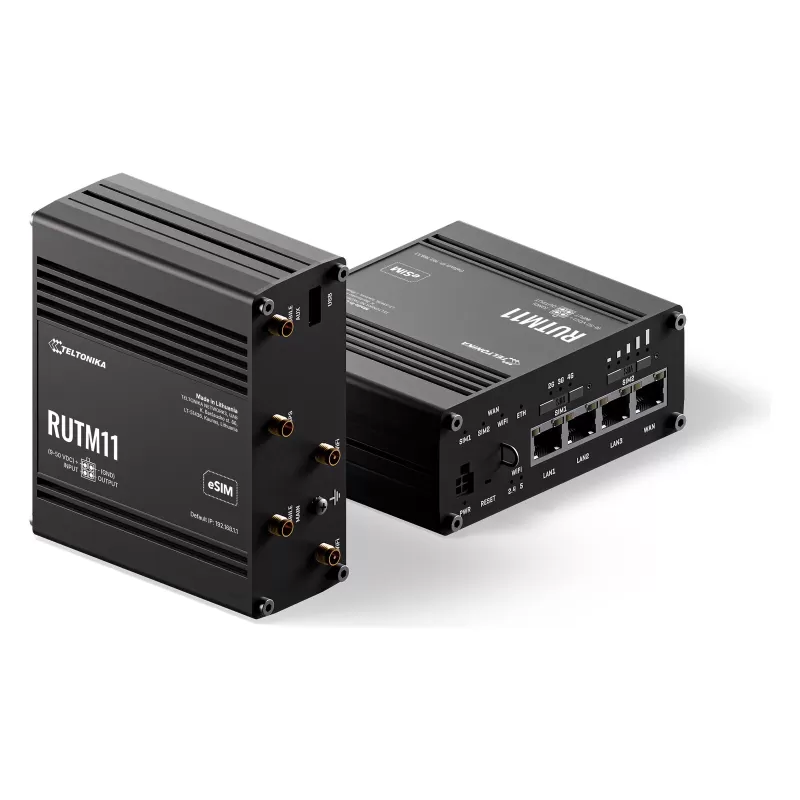

Router Teltonika RUTM11

The Teltonika RUTM11 is an advanced industrial cellular router with support for LTE Cat 6, dual-band Wi-Fi 5 (Wave 2), four Gigabit Ethernet ports, Dual SIM with smart failover, built-in GNSS, and comprehensive VPN capabilities. Ideal for IoT, transportation, agriculture, and smart-industry applications.

LTE Cat 6 – up to 300Mbps download / 50Mbps upload + 3G up to 42Mbps

• Dual SIM – two SIM slots (2FF) with smart failover across multiple scenarios
• Ethernet – 1× WAN + 3× LAN at 1Gbps
• Dual-Band Wi: Fi 5 (2.4GHz + 5GHz) – MU-MIMO, up to 867Mbps, up to 150 simultaneous connections
• GNSS – GPS, GLONASS, BeiDou, Galileo, QZSS + geofencing, NMEA/NTRIP support
• VPN – OpenVPN, WireGuard, IPsec, PPTP, L2TP, DMVPN, GRE, SSTP, ZeroTier, Tinc, Tailscale
• Security – firewall, VLAN, DDoS prevention, access control, web filter, SSL certificates, 802.1x NAC
• Management – Teltonika RMS, Web UI, CLI, SNMP v1/v2/v3, TR-069, JSON-RPC
• I/O – one digital input + one digital output (50V/300mA)
• USB – USB 2.0 port for external storage, a secondary modem, printers, Samba, USB-Serial

Supported networks – 4G LTE Cat 6 (DL up to 300Mbps / UL up to 50Mbps), 3G up to 42Mbps

• SIM – 2× Mini-SIM (2FF), 1.8V/3V
• Ethernet – 4× RJ45 (1× WAN + 3× LAN), 10/100/1000Mbps
• Wi: Fi – 802.11b/g/n/ac Wave 2 (Wi-Fi 5), dual band, MU-MIMO, up to 867Mbps, up to 150 connections
• CPU – MediaTek dual-core 880MHz, MIPS1004Kc
• Memory – 256MB DDR3 RAM
• Storage – 16MB NOR Flash + 256MB NAND Flash
• I/O connectors – 1× digital input (0–6V low / 8–50V high), 1× digital output (50V/300mA)
• USB – USB 2.0 port (HDD, secondary modem, printer, USB-Serial)
• IoT protocols – MQTT, Modbus TCP/RTU, OPC UA (Client/Server), DNP3 (TCP/USB), DLMS/COSEM
• Communication protocols – TCP, UDP, IPv4/IPv6, DNS over HTTPS, VRRP, QoS/SQM, DDNS, VXLAN
• Operating voltage – 9–50V DC, reverse-voltage protection, surge protection >51V
• Power consumption – idle <3.9W / max <12.3W
• PoE – passive PoE (LAN1, 9–50V DC, not compatible with 802.3af/at/bt)
• Dimensions – 115 × 44.2 × 95.1 mm
• Weight – 460g
• Housing – anodized aluminum, IP30 rating
• Mounting – DIN rail / wall / flat (mounting kit required)
• Operating temperature – -40°C to 75°C, humidity 10–90%
• Standards – CE, UKCA, CB, RCM, WEEE, RoHS, REACH
• Warranty – two years

The kit includes:

• Teltonika RUTM11 router
• 18W power supply
• 2 cellular antennas (SMA)
• 2 Wi-Fi antennas (RP-SMA)
• GNSS antenna (SMA, 3m adhesive-mount cable)
• 1.5-meter network cable
• SIM adapter kit
• Quick start guide.
