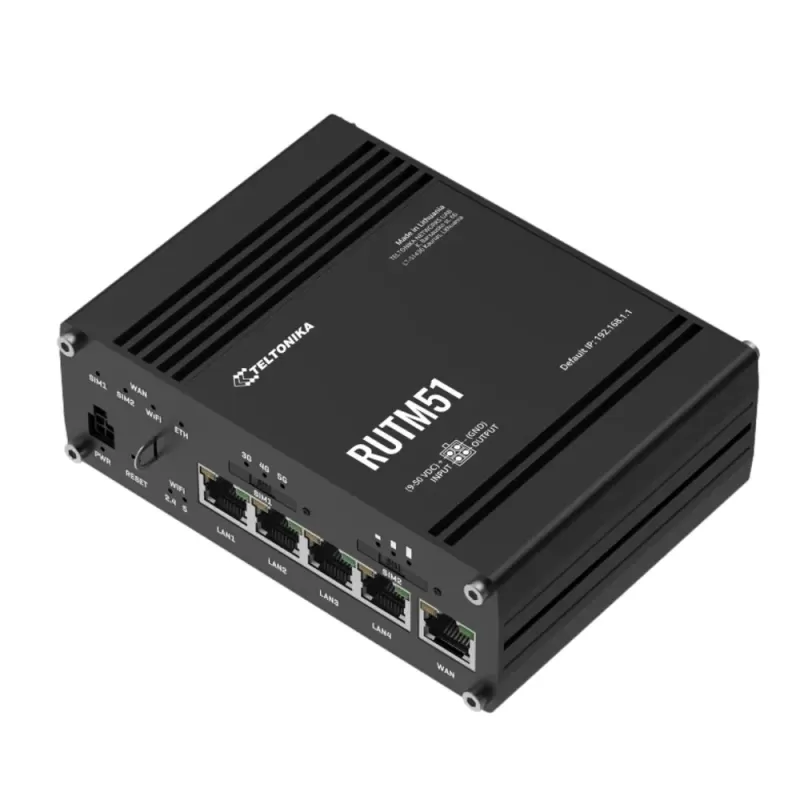

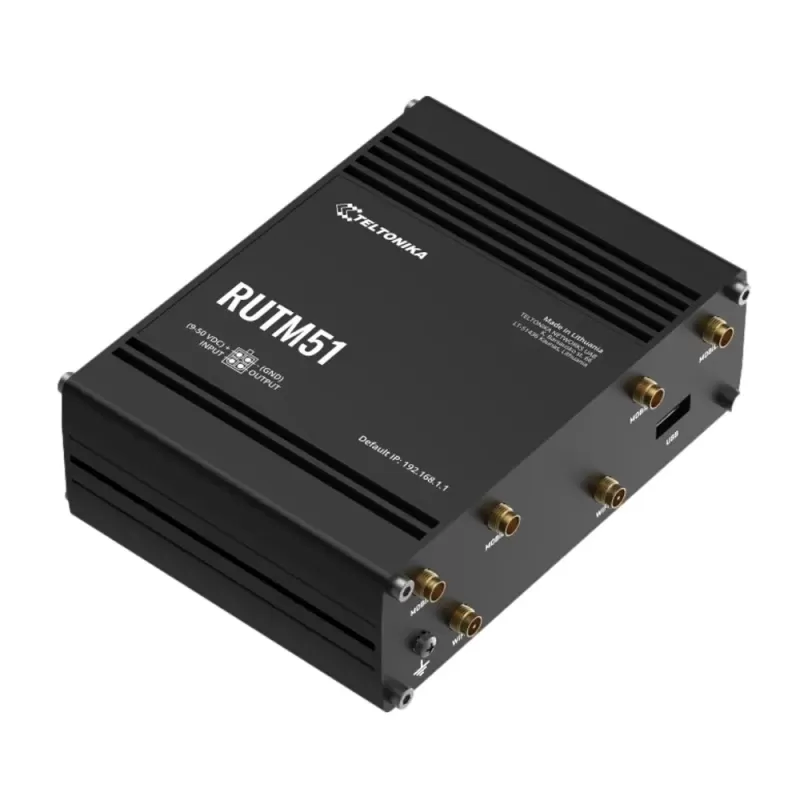

Router Teltonika RUTM51 5G RUTM51

The Teltonika RUTM51 is an advanced industrial cellular router with 5G NR SA/NSA, 4G LTE Cat 12, and Dual Band Wi-Fi 5 (Wave 2) support. It includes five Gigabit Ethernet ports, two SIM cards with Failover, advanced security, smart VPN capabilities, and IoT protocol support. Suited for industrial applications, smart transportation, business networks, and IoT.

• 5G NR Sub-6GHz – speeds up to 2Gbps (SA) / 2.6Gbps (NSA) download, up to 1Gbps upload
• 4G LTE Cat 12 – up to 600Mbps download / Cat 13 up to 150Mbps upload + 3G up to 42Mbps
• Dual Band Wi: Fi 5 (2.4GHz + 5GHz) – MU-MIMO, up to 867Mbps, up to 150 simultaneous connections
• Ethernet – 1× WAN + 4× LAN, all Gigabit (5 RJ45 ports total)
• Dual SIM – two SIM slots (Mini-SIM 2FF) with automatic Failover in various scenarios
• GNSS – GPS, GLONASS, BeiDou, Galileo, QZSS
• VPN – OpenVPN, WireGuard, IPsec, PPTP, L2TP, DMVPN, GRE, SSTP, ZeroTier, Tinc, Tailscale
• Security – Firewall, VLAN, DDOS Prevention, access control, SSL Certificates, 802.1x NAC
• Management – Teltonika RMS, Web UI, CLI, SNMP v1/v2/v3, TR-069, JSON-RPC
• I/O – one digital input + one digital output (50V/300mA)
• USB – USB 2.0 port for external storage, additional modems, printers, USB-Serial

• Cellular modem – 5G NR SA: up to 2Gbps DL / 1Gbps UL; NSA: up to 2.6Gbps DL / 650Mbps UL
• Additional networks – 4G LTE Cat 12/Cat 13, 3G up to 42.2Mbps DL / 11Mbps UL
• SIM – 2× Mini-SIM (2FF), 1.8V/3V
• Ethernet – 5× RJ45 (1× WAN + 4× LAN), 10/100/1000Mbps
• Wi: Fi – 802.11b/g/n/ac Wave 2 (Wi-Fi 5), MU-MIMO, up to 867Mbps, up to 150 users
• Security – Firewall, VPN, VLAN, DDOS Prevention, access control, SSL Certificates
• CPU – MediaTek Dual-Core 880MHz, MIPS1004Kc
• Memory – 256MB DDR3 RAM
• Storage – 16MB NOR Flash + 256MB NAND Flash
• I/O connections – 1× digital input (0–6V Low / 8–50V High), 1× digital output (50V/300mA)
• USB – USB 2.0 port, supports HDD, modem, printer, USB-Serial, Samba Share
• IoT protocols – MQTT, Modbus TCP/RTU, OPC UA (Client/Server), DLMS/COSEM, DNP3
• Communication protocols – TCP, UDP, IPv4/IPv6, DNS over HTTPS, VRRP, QoS/SQM, DDNS, VXLAN
• Operating voltage – 9–50V DC, reverse voltage protection, Surge protection >51V
• Power consumption – Idle: 5W / Max: 18W
• PoE – Passive PoE (LAN1, 9–50V DC, not compatible with 802.3af/at/bt)
• Dimensions – 132 × 44.2 × 95 mm
• Weight – 525g
• Housing – hardened aluminum, IP30 rating
• Installation – DIN Rail / Wall / Flat (installation kit required)
• Operating temperature – -40°C to 75°C, humidity 10–90%
• Standards – CE, UKCA, EAC, UCRF, RCM, CB, UN ECE R10 (E-mark), RoHS, REACH
• Warranty – two years

Package includes:

• RUTM51 router
• 18W power supply
• 4 cellular antennas (SMA)
• 2 Dual-Band Wi-Fi antennas (RP-SMA, magnetic with 1.5m cable)
• 1.5-meter network cable
• SIM adapter kit
• Quick start guide
