Antenna Teltonika PR1KCO28 LTE/Wi-Fi/GNSS PR1KCO28 Color:black

Teltonika PR1KCO28 LTE/Wi-Fi/GNSS Combo Roof Antenna

The Teltonika PR1KCO28 is a 5-in-1 outdoor roof antenna that combines two LTE antennas for MIMO, two dual-band Wi-Fi antennas for MIMO and an active GNSS antenna in one housing. It suits cellular and industrial routers in vehicles, network cabinets and IoT installations, improving mobile reception, Wi-Fi coverage and positioning accuracy.

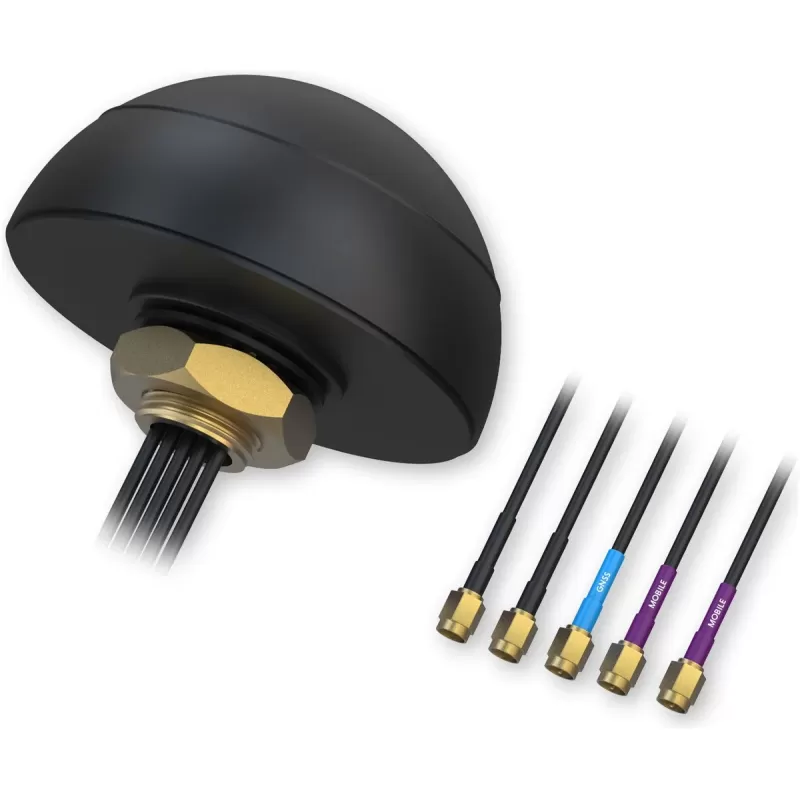

The UV-resistant ABS radome is IP65 rated, mounts with a screw on a roof or surface and operates from -40°C to +85°C. Five built-in RG174 cables, 3 m long, end in SMA and RP-SMA connectors, so they connect straight to the router.

Key features

• 5 antennas in one housing - Two LTE, two Wi-Fi and one GNSS antenna in a single radome for a simple, clean installation.
• LTE MIMO - Covers 698-960 and 1710-2690 MHz with 3.0 dBi gain for better, more stable mobile reception.
• Dual-band Wi-Fi MIMO - 2.4GHz and 5GHz bands with 2.0 dBi gain for a wireless network around the vehicle or site.
• Active GNSS - An LNA with 28±2 dB gain and a low noise figure of up to 1.5 dB with RHCP polarization for accurate positioning.
• Built for outdoors - UV-resistant ABS radome, IP65 rating and operation from -40°C to +85°C.

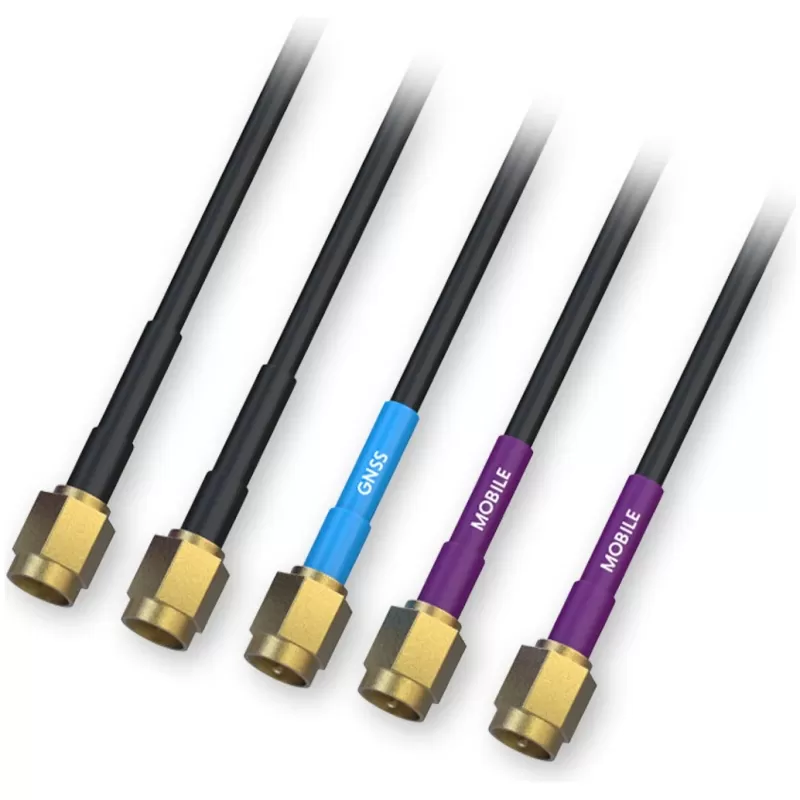

• Built-in cables - 5 RG174 cables of 3 m with SMA and RP-SMA connectors for a direct router connection.

Specifications

In the box

• PR1KCO28 antenna with 5 built-in cables
