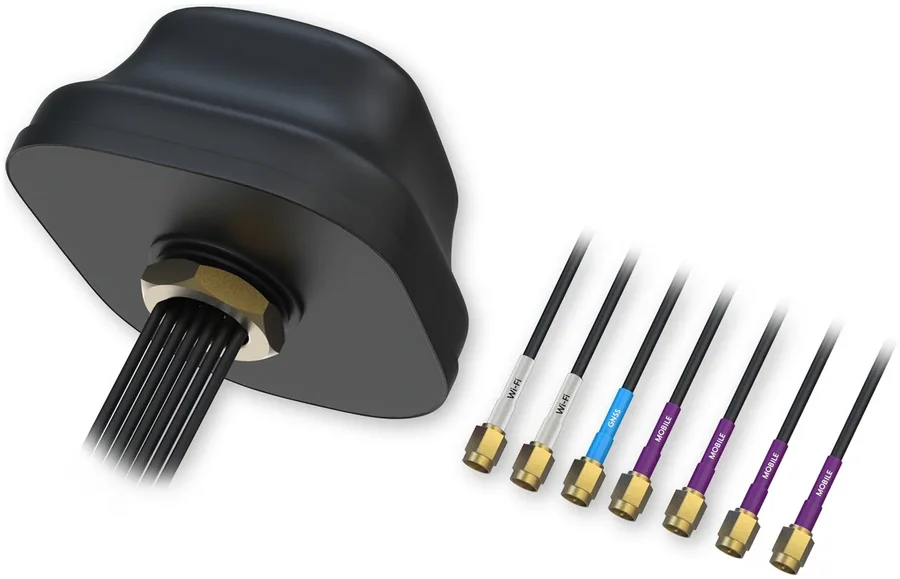

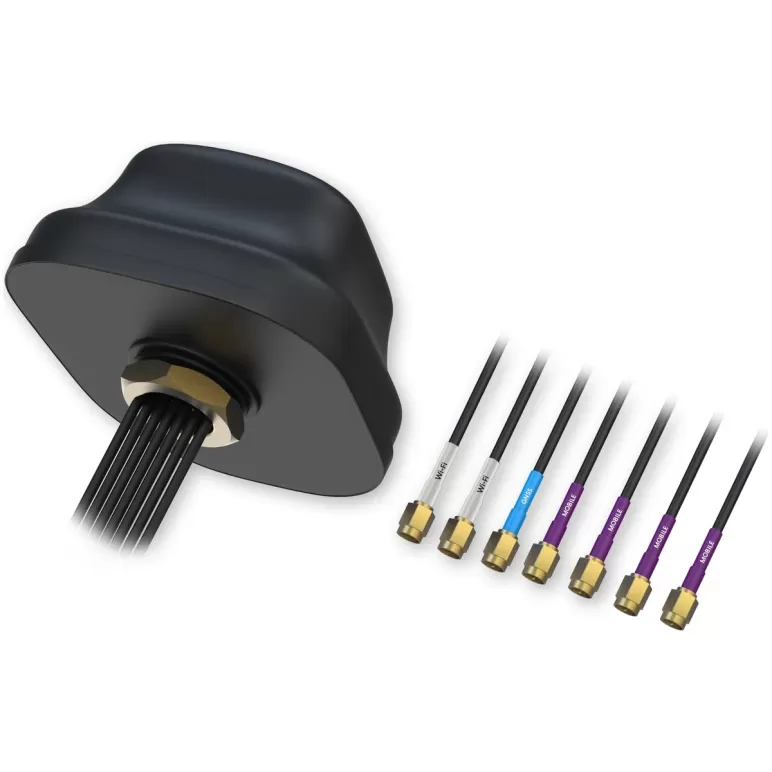

Teltonika PR1KC640 5G/Wi-Fi/GNSS Combo Roof Antenna

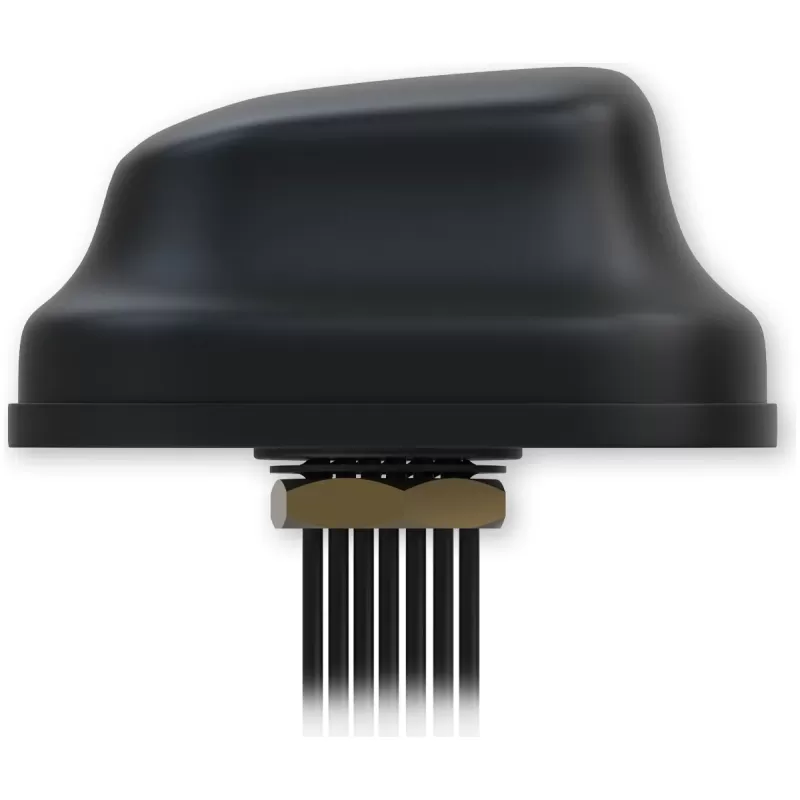

The Teltonika PR1KC640 is a combo roof antenna for outdoor installation that combines four 5G cellular antennas in a MIMO configuration, two Wi-Fi MIMO antennas and a GNSS antenna for positioning and navigation in one housing. It is designed for vehicles and industrial installations and suits Teltonika routers and modems.

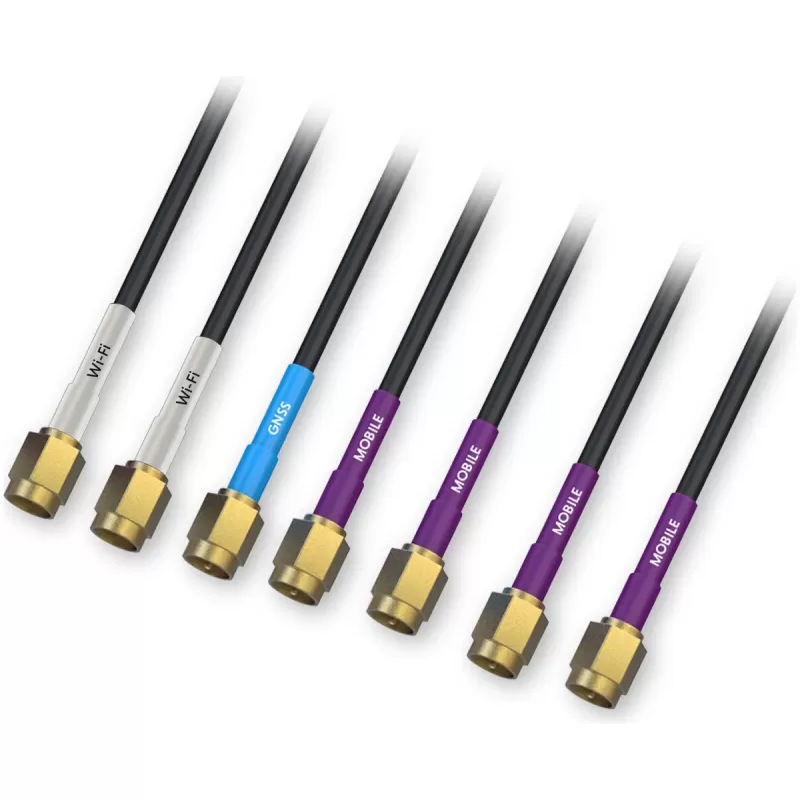

The antenna comes with 7 LMR100 cables, 3 m each, terminated with SMA and RP-SMA connectors. The housing is made of UV-resistant ABS/PC, is IP67 rated (excluding the cable outlet) and operates from -40°C to 85°C.

Key features

• Four-channel 5G MIMO - Four cellular antennas covering 617-960MHz, 1710-2690MHz and 2900-4200MHz, with 4dBi gain and 4 SMA male connectors.
• Dual-band Wi-Fi MIMO - Two Wi-Fi antennas covering 2400-2483.5MHz and 4900-5925MHz, with 4dBi gain and RP-SMA male connectors.
• Active GNSS - A GNSS antenna with a 40±2dB LNA, covering 1164-1300MHz and 1559-1610MHz, RHCP polarization, powered at 3-12V DC.
• Built for outdoor use - UV-resistant ABS/PC radome, IP67 (excluding the cable outlet) and an operating range of -40°C to 85°C.
• Screw mounting - Installs through a 28 mm hole in a panel up to 8 mm thick, with all 7 cables routed through the hole.

Specifications

In the box

• PR1KC640 antenna with 7 attached cables
• Quick installation guide
