TP-Link TL-ANT2424MD 2.4GHz 24dBi 2x2 MIMO TL-ANT2424MD Color:white

TP-Link TL-ANT2424MD 2.4GHz 24dBi 2x2 MIMO Dish Antenna

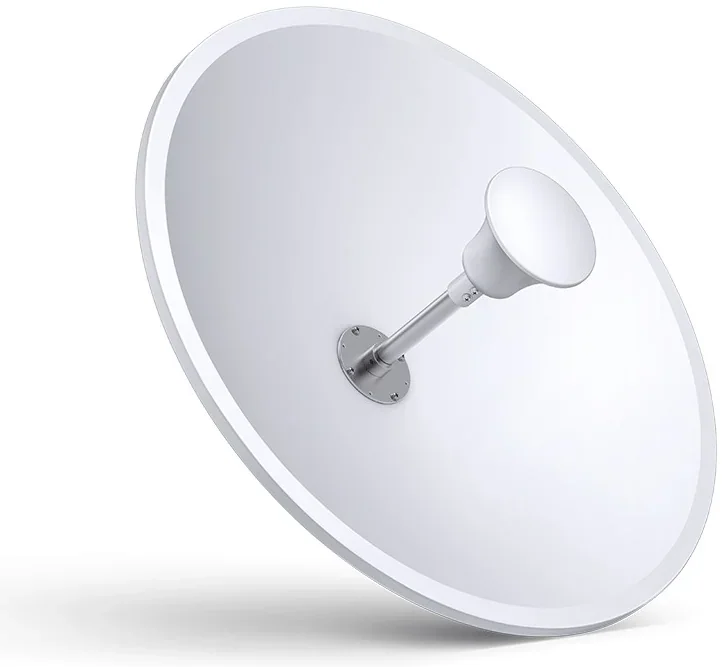

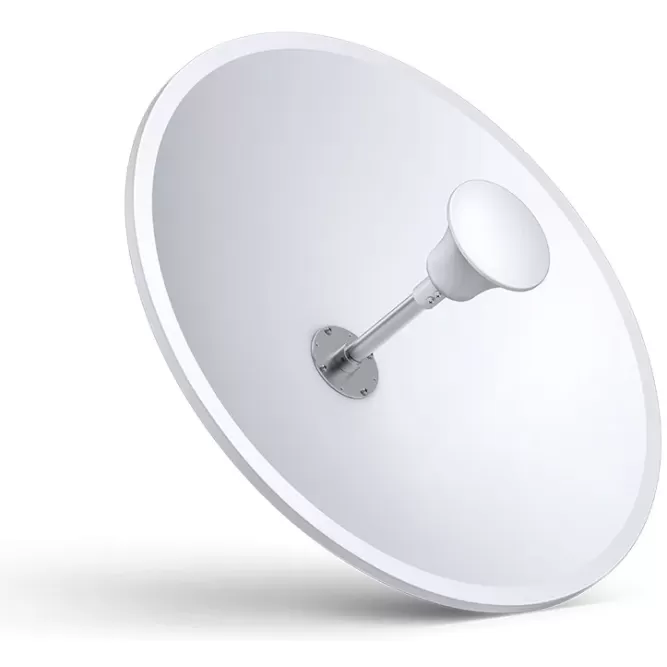

The TP-Link TL-ANT2424MD is an outdoor Pharos dish antenna for the 2.4GHz band with 24dBi of gain. It is highly directional, with a 6-degree beamwidth, and is built for long-distance Point-to-Point bridges and network backhaul.

The antenna supports 2x2 MIMO with horizontal and vertical polarization and is designed to pair with the Pharos WBS210 base station. It mounts on a pole and its weatherproof design withstands harsh conditions and wind speeds of up to 241 km/h.

Key features

• High 24dBi gain - A directional antenna with a 6-degree beamwidth and a front-to-back ratio of at least 32dB for stable long-distance wireless links.
• 2x2 MIMO - Dual horizontal and vertical polarization carries two data streams and increases link throughput.

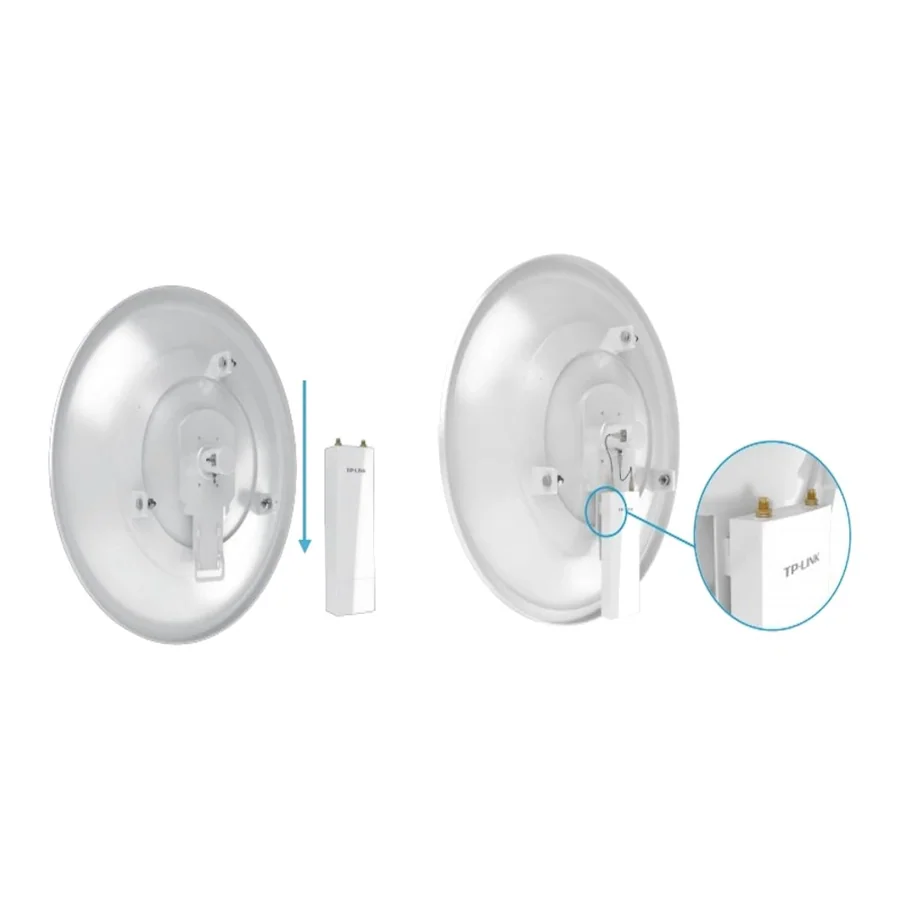

• Pairs with Pharos WBS210 - Designed for the Pharos WBS210 base station, with a built-in mounting apparatus so no tools are needed to attach it.

• Built for outdoors - A weatherproof design rated for wind speeds of up to 241 km/h, installed on a pole.

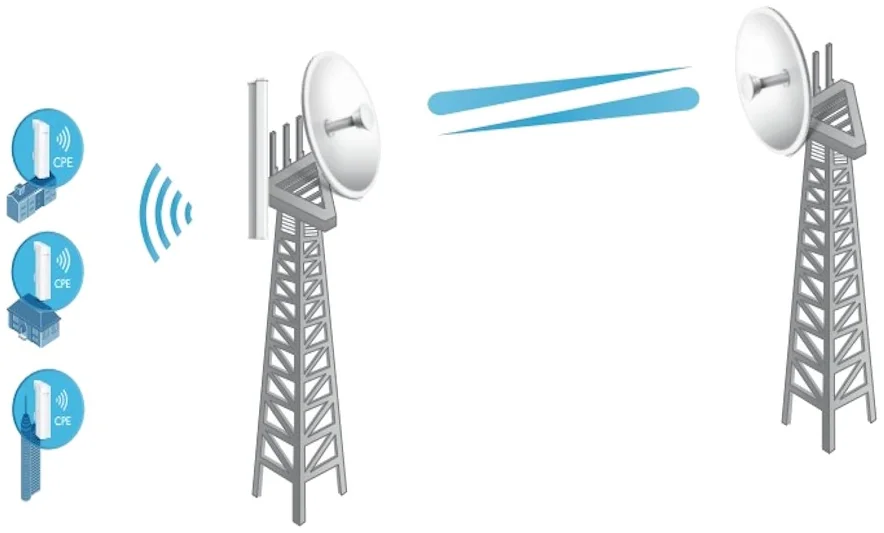

• Point-to-Point and backhaul - A solution for wireless bridges between buildings and long-distance network links, with an antenna placed at each end of the link.

Specifications

In the box

• TL-ANT2424MD antenna
• Pole mounting kit
• Installation guide
