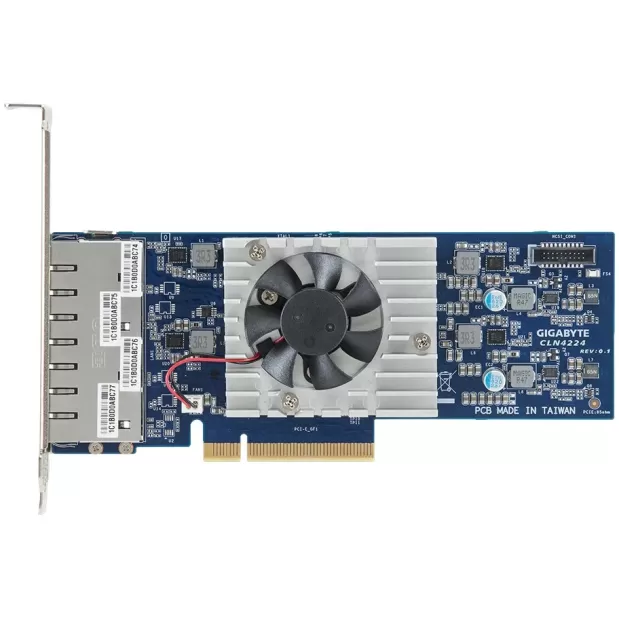

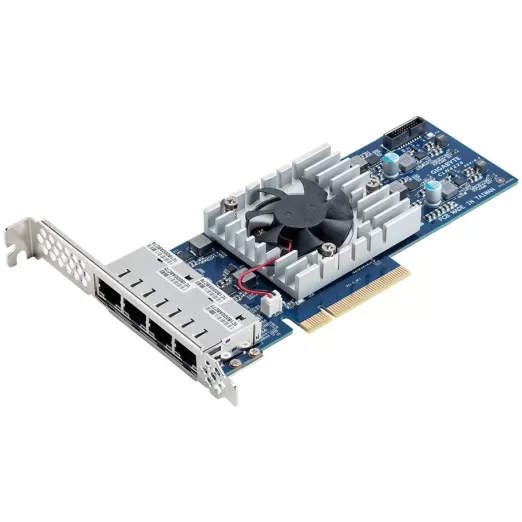

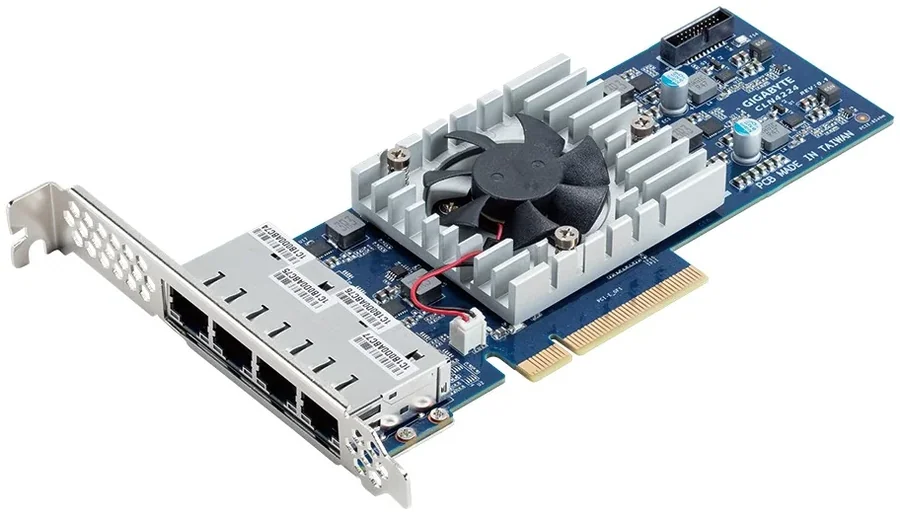

| Revew | Gigabyte CLN4224 Network CardThe GIGABYTE CLN4224 is a server network card with four 10GBASE-T RJ45 ports. Each port supports 10Gb/s or 1Gb/s, and the card is built on two Intel X550-AT2 controllers and installs in a PCIe x8 (Gen3) slot. The card is half-length and low-profile and comes with both a full-height and a low-profile bracket. According to GIGABYTE, it is dedicated for use with GIGABYTE Purley generation server boards and systems only. Part number 9CLN4224NR-00 is the bulk-packaged version.
Key features- Four 10GBASE-T ports - Four RJ45 ports on one card, each running at 10Gb/s or 1Gb/s, for connecting a server to several networks or to high-bandwidth links.
- Two Intel X550-AT2 controllers - Each controller handles two ports, and the card connects through a PCIe x8 Gen3 interface.
- Standard copper cabling - Runs over Category 6 cable up to 55 m and Category 6A cable up to 100 m, with no optical modules needed.
- Low profile with two brackets - A half-length, low-profile card measuring 68.9 x 168 mm, supplied with full-height and low-profile brackets to fit different chassis.
- For GIGABYTE servers - According to the manufacturer, the card is intended for GIGABYTE Purley generation server boards and systems only, so check compatibility before installation.
Specifications| Manufacturer | GIGABYTE | | Model | CLN4224 (Rev. 1.0) | | Part number | 9CLN4224NR-00 | | Ports | 4 x 10GBASE-T RJ45 | | Speed per port | 10Gb/s, 1Gb/s | | Controller | 2 x Intel X550-AT2 | | Interface | PCIe x8 (Gen3 x8) | | Form factor | Half-length, low-profile | | Dimensions | 68.9 x 168 mm | | Cabling | Cat 6 up to 55 m, Cat 6A up to 100 m | | Brackets | Full-height and low-profile | | Compatibility | GIGABYTE Purley generation server boards and systems | | Packaging | Bulk, 12 pcs per carton |
In the box- GIGABYTE CLN4224 network card
- Full-height bracket
- Low-profile bracket
|
