Network Card Gigabyte CLN4752 9CLN4752NR-00

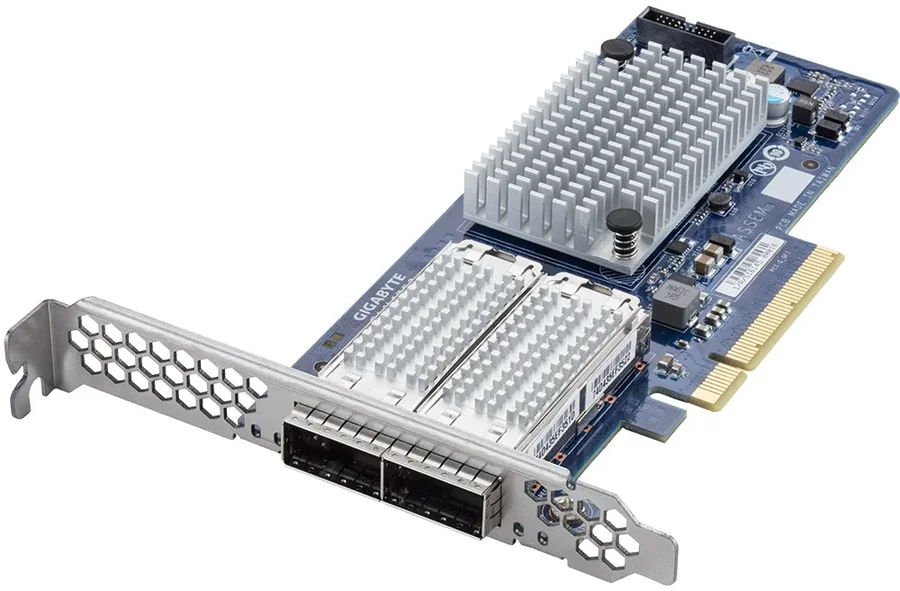

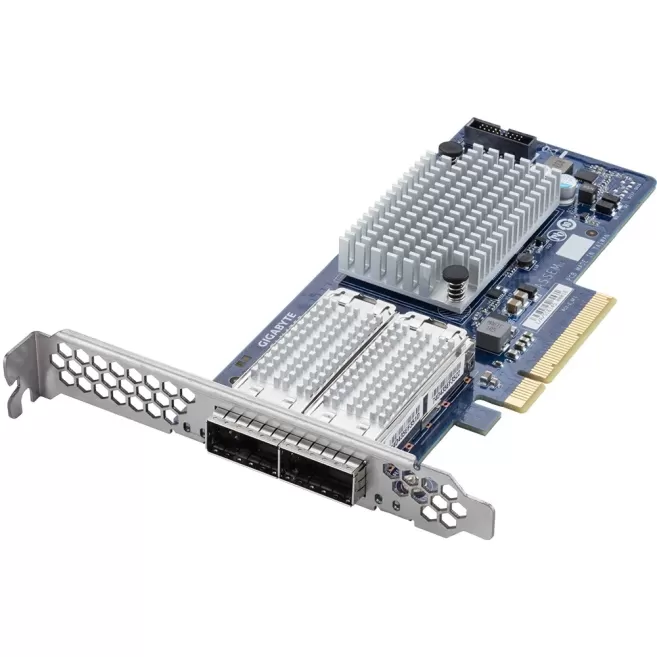

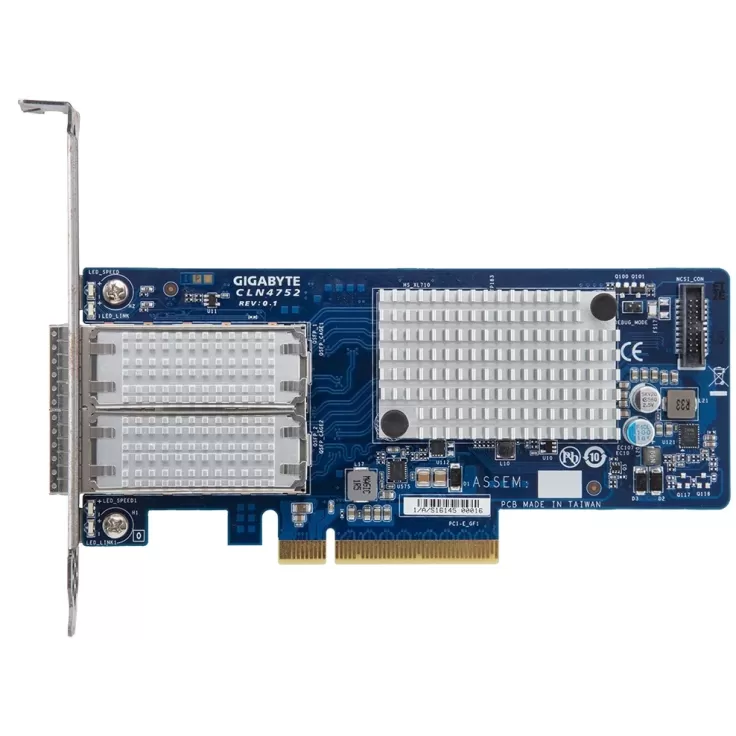

Gigabyte CLN4752 Network Card

The GIGABYTE CLN4752 is a server network card with two QSFP+ ports. Each port supports 40Gb/s, 10Gb/s or 1Gb/s, and the card is built on an Intel XL710-BM2 controller and installs in a PCIe x8 (Gen3) slot.

The card is half-length and low-profile and comes with both a full-height and a low-profile bracket, so it also fits low server chassis. Part number 9CLN4752NR-00.

Key features

• Two QSFP+ ports - Two QSFP+ ports run at up to 40Gb/s each and also support 10Gb/s and 1Gb/s.
• Intel XL710-BM2 controller - A dual-port Intel network controller designed for servers and data centers.
• PCIe 3.0 x8 interface - The card installs in a PCIe x8 slot and runs on a Gen3 x8 bus.
• Compact card with two brackets - A half-length, low-profile card measuring 68.9 x 148.5 mm, supplied with a full-height and a low-profile bracket.

Specifications

In the box

• GIGABYTE CLN4752 network card
• Full-height bracket
• Low-profile bracket
