Network Card Intel Ethernet Converged Network Adapter X520-DA1 X520-DA1

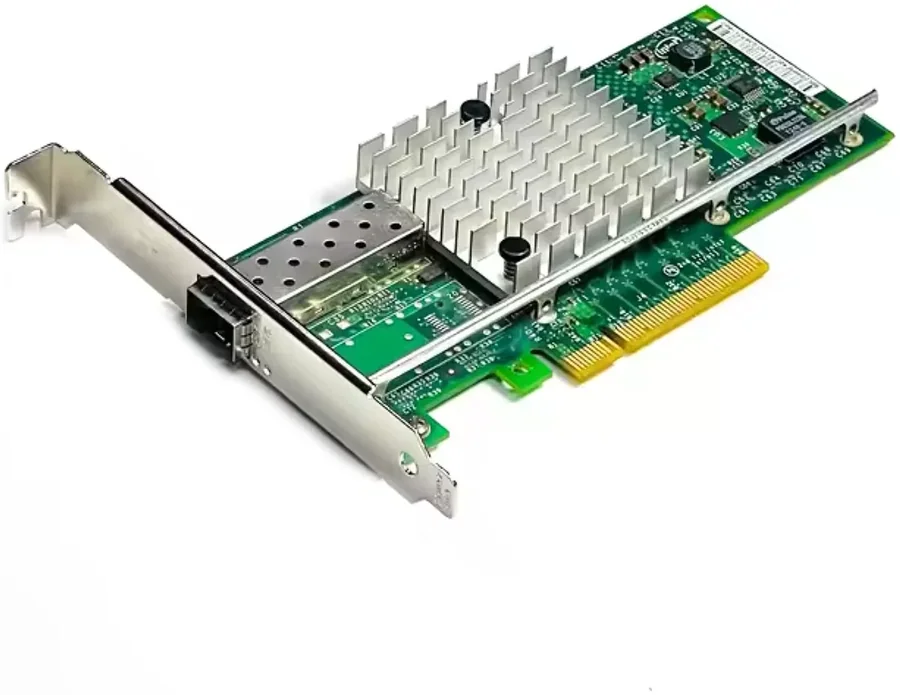

Intel Ethernet Converged Network Adapter X520-DA1

The Intel Ethernet Converged Network Adapter X520-DA1 is a single-port 10 Gigabit Ethernet card with an SFP+ port from the Intel Ethernet Server Adapter X520 family. It is built on the Intel 82599 controller, connects through PCI Express 2.0 x8 and is designed for servers and workstations that need a fast link to the network or to storage.

The port works with SFP+ Direct Attach (twinax) copper cables up to 10 m long. The card supports Intel virtualization technologies such as VMDq, SR-IOV and Flexible Port Partitioning, iSCSI and NFS storage, and fits both full-height and low-profile brackets.

Key features

• 10GbE over SFP+ - One port for SFP+ Direct Attach (twinax) copper cables up to 10 m, for a direct link to a 10 Gigabit switch.
• Intel 82599 controller - Intel's controller delivers stable 10 Gigabit performance with multiple queues, Receive-Side Scaling and MSI-X to spread the load across CPU cores.
• Advanced virtualization - VMDq, SR-IOV and Flexible Port Partitioning assign network resources directly to virtual machines and improve performance on virtualized servers.
• Storage over Ethernet - Support for iSCSI and NFS, including remote boot over iSCSI and PXE.
• Fits any chassis - A PCI Express 2.0 x8 interface and full-height or low-profile bracket support allow installation in standard servers and slim cases.

Specifications
