PCI-E Network Card St-Lab N-314

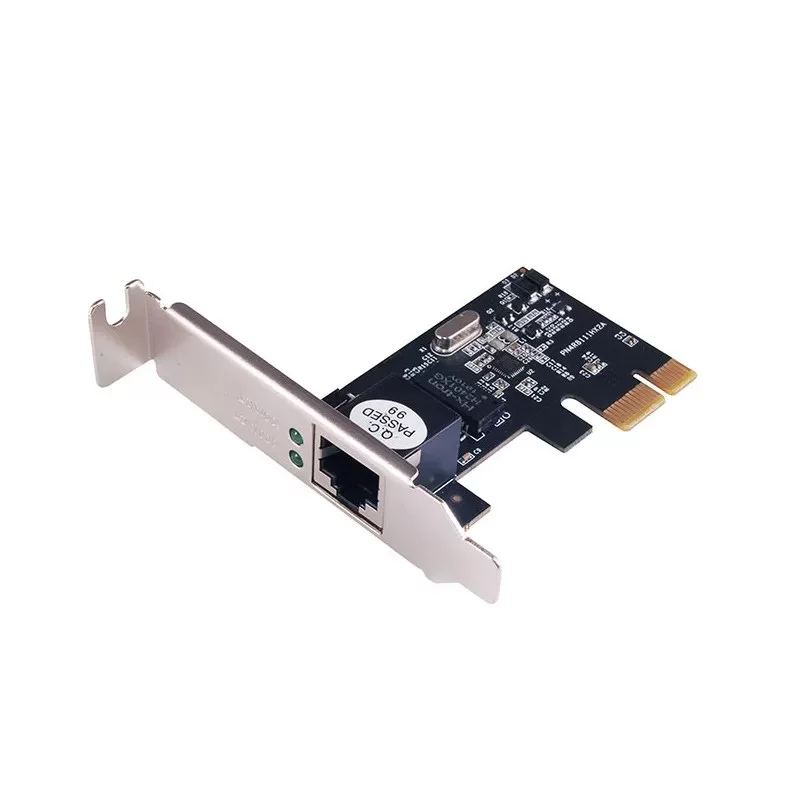

St-Lab N-314 PCIe 1-Port Gigabit Ethernet Adapter

The St-Lab N-314 is a Gigabit Ethernet network card for desktop computers that adds an RJ-45 port at up to 1000Mbps through a free PCI Express slot. It suits adding a wired connection to a computer without a built-in port, replacing a faulty onboard port or adding a second port.

The card is based on the Realtek RTL8111H solution, optimized for maximum throughput with low CPU utilization. It connects to a PCIe x1 slot, runs at 10/100/1000Mbps with auto-negotiation, and supports Windows, Windows Server and Linux.

Key features

• Gigabit Ethernet - One RJ-45 port at 10/100/1000Mbps with auto-negotiation, and full duplex mode that doubles the connection rate.
• Realtek RTL8111H - The Realtek RTL8111H solution delivers maximum throughput with low CPU utilization and full compliance with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab.
• PCIe x1 slot - The card meets PCI Express 1.1a and connects over a single x1 lane at 2.5Gbps.
• Status LEDs and Wake on LAN - LEDs show the data transmission status, and Wake on LAN support helps manage power and lets you power on the computer over the network.
• Operating system support - Drivers for Windows 2000 to Windows 10 in 32-bit and 64-bit editions, Windows Server 2003 to 2012 R2, and Linux.

Specifications

In the box

• St-Lab N-314 network card
• User manual
