PCI-E Network Card St-Lab N-382

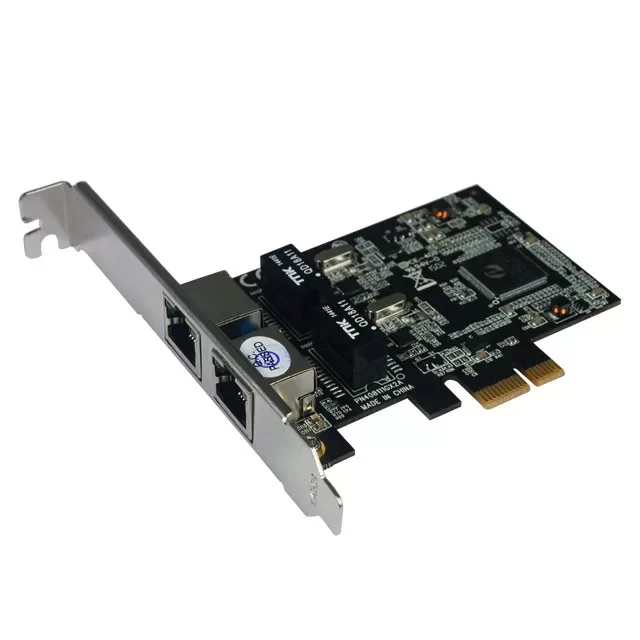

St-Lab N-382 PCIe 2-Port Gigabit Network Adapter

The St-Lab N-382 is a desktop network card that adds two separate Gigabit Ethernet ports through a free PCI Express slot. It is based on the Realtek RTL8111H solution and suits connecting a computer to two separate networks or adding wired network ports to a PC.

The card meets the PCI Express 2.1 specification with an x1 interface and fits any x1, x4, x8 or x16 slot. Each port runs at 10/100/1000Mbps with automatic speed negotiation, and drivers are available for Windows 7 to Windows 11, Windows Server and Linux.

Key features

• Two Gigabit ports - Two RJ-45 ports at 10/100/1000Mbps with auto-negotiation. In full duplex mode the card reaches up to 2000Mbps in total.
• PCIe 2.1 x1 - The card meets PCI Express 2.1 and connects over a single x1 lane at 2.5Gbps. It fits x1, x4, x8 and x16 slots.
• Realtek RTL8111H - The Realtek RTL8111H solution is fully compliant with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab, with automatic MDI/MDIX crossover at all speeds.
• Jumbo frames and Wake on LAN - Jumbo frames up to 9K for efficient transfer of large files, and Wake on LAN to power on the computer remotely over the network.
• Operating system support - Drivers for Windows 7, 8.x, 10 and 11, Windows Server 2008 R2, 2012 R2, 2016 and 2019, and Linux with kernel 2.6.x or later.

Specifications

In the box

• St-Lab N-382 network card
• User manual
