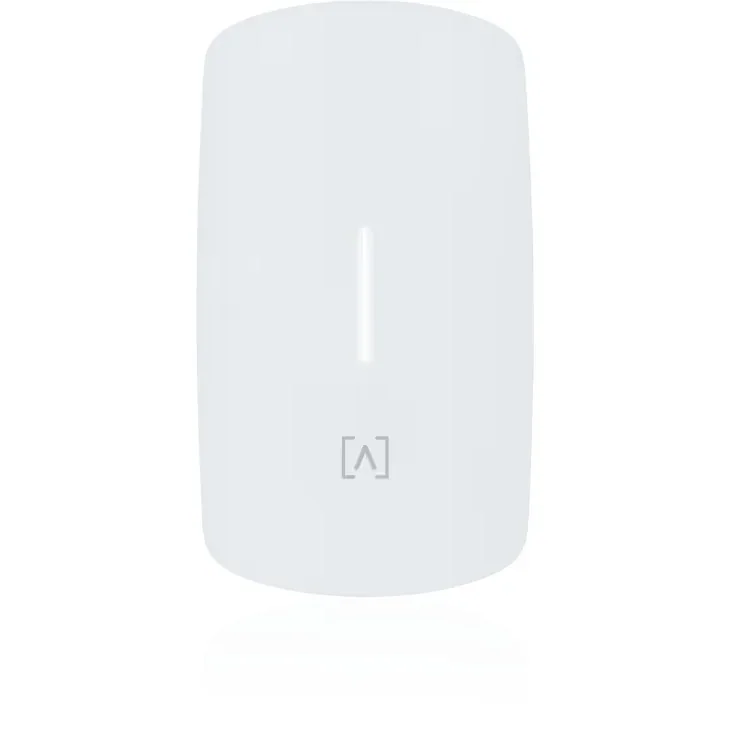

| Revew | Alta Labs AP6W Wi-Fi 6 Wall-Mount Access PointThe Alta Labs AP6W is a compact Wi-Fi 6 access point for mounting on a wall or a junction box, suited to hotels, restaurants, apartment buildings, offices and homes. It is dual-band with 2x2 MIMO on each band, reaching up to 574Mbps on 2.4GHz and up to 2.4Gbps on 5GHz. The access point has three Gigabit ports: a PoE input on the back, a PoE input on the bottom and a PoE OUT port that powers another device, such as a VoIP phone, with up to 15W. Management is done in the cloud and in the Alta Networks app, and initial setup works over Bluetooth.
Key features- 4-stream Wi-Fi 6 - 2x2 MIMO on 2.4GHz and 5GHz, MU-MIMO, up to 574Mbps on 2.4GHz and up to 2.4Gbps on 5GHz, plus Zero Wait DFS.

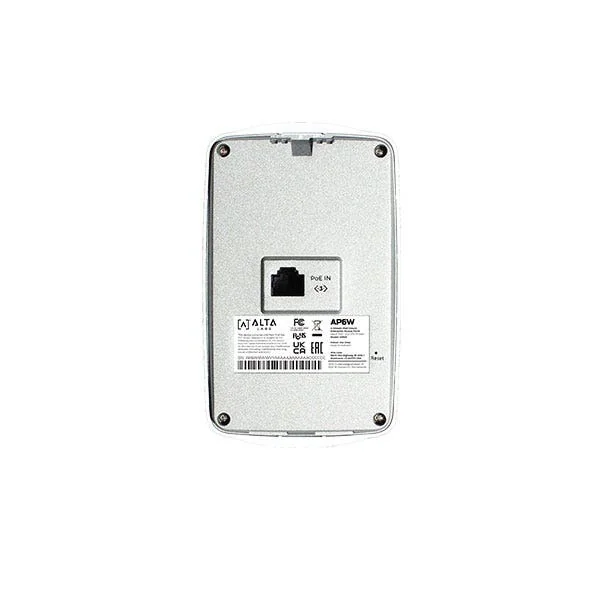

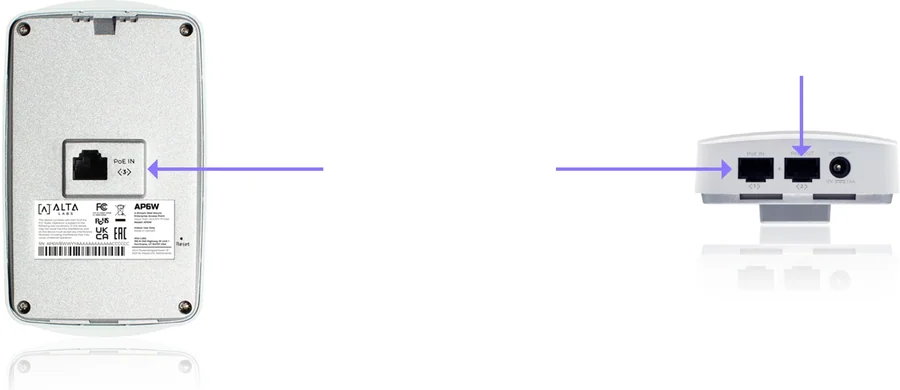

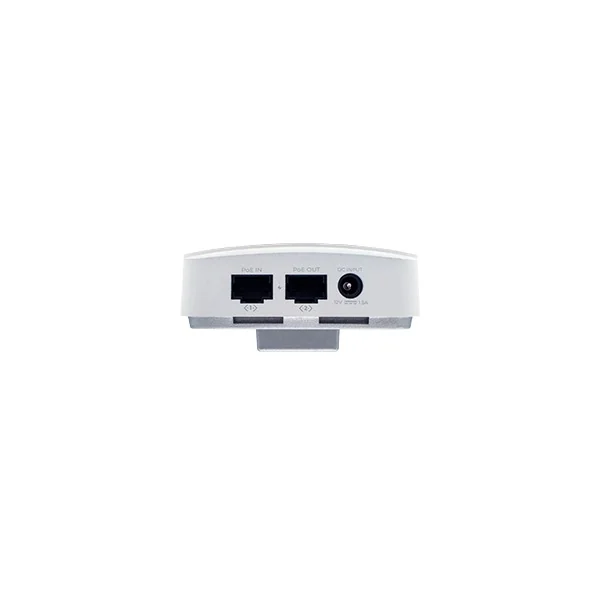

- PoE passthrough - The PoE OUT port powers another device with up to 15W when the access point is powered by PoE+ (802.3at). It can be powered from the PoE input on the back or bottom, or from a 12V adapter (not included).
- AltaPass - Patented technology that allows several passwords on the same SSID, each with its own VLAN, speed limit and hotspot, filter or schedule bypass.
- DPI content filtering - A built-in Deep Packet Inspection engine blocks websites, applications or application types without extra hardware.
- Cloud and app management - Multi-site cloud management, the Alta Networks app, Bluetooth setup, a hotspot with a landing page and changes without a reboot.
- Security and roaming - WPA2 and WPA3 Personal and Enterprise, up to 8 SSIDs per radio, 802.1Q VLANs, 802.11r/k/v roaming and guest traffic isolation.
Specifications| Manufacturer | Alta Labs | | Model | AP6W | | Standard | 802.11a/b/g/n/ac/ax (Wi-Fi 6) | | MIMO | 2x2 on 2.4GHz, 2x2 on 5GHz | | Wireless speed | Up to 574Mbps on 2.4GHz, up to 2.4Gbps on 5GHz | | Transmit power | 20dBm per band | | Antenna gain | Up to 4.0dBi on 2.4GHz, up to 4.1dBi on 5GHz | | Ports | 3 x Gigabit RJ45 (PoE IN on the back, PoE IN and PoE OUT on the bottom) | | Power | PoE 802.3af/at (42.5-57V) or 12V DC 1.5A adapter (not included) | | PoE passthrough | Up to 15W when powered by 802.3at | | Max. power consumption | 14.2W | | Security | WPA2-Personal, WPA3-Personal (SAE), WPA2/WPA3-Enterprise | | SSIDs | Up to 8 per radio | | Concurrent clients | 250+ | | Bluetooth | For initial setup | | Mounting | Wall or junction box | | Dimensions | 156.1 x 90 x 43.9 mm | | Weight | 312 g | | Operating temperature | 0 to 40°C |
In the box- Alta Labs AP6W access point

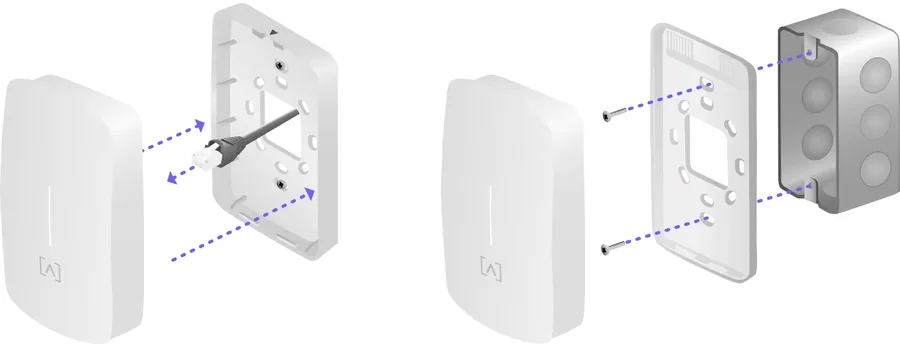

- Wall and junction box mounting hardware
|
