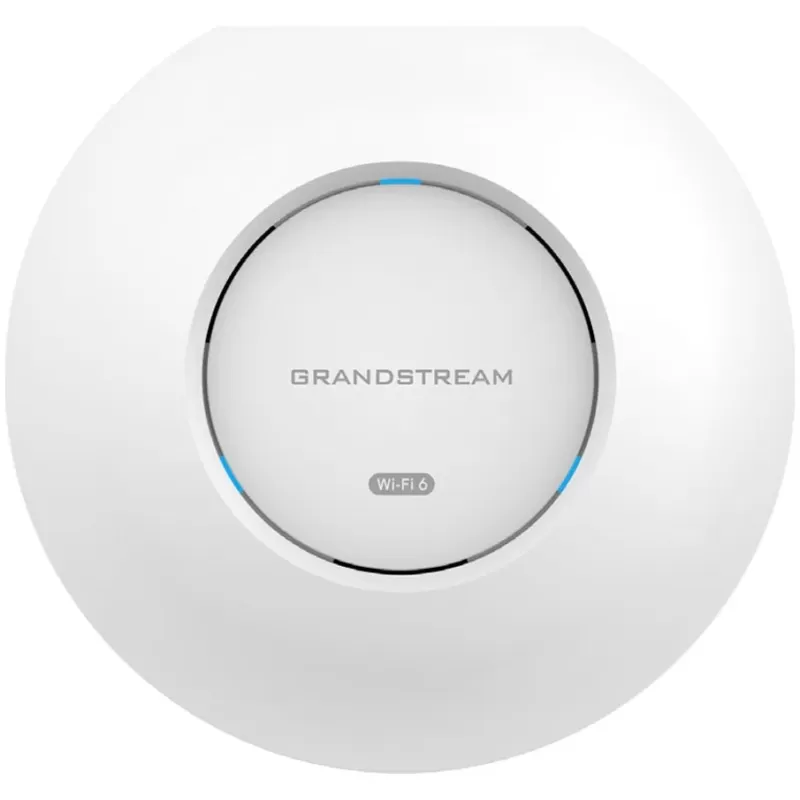

Access point Grandstream GWN7660 Color:white

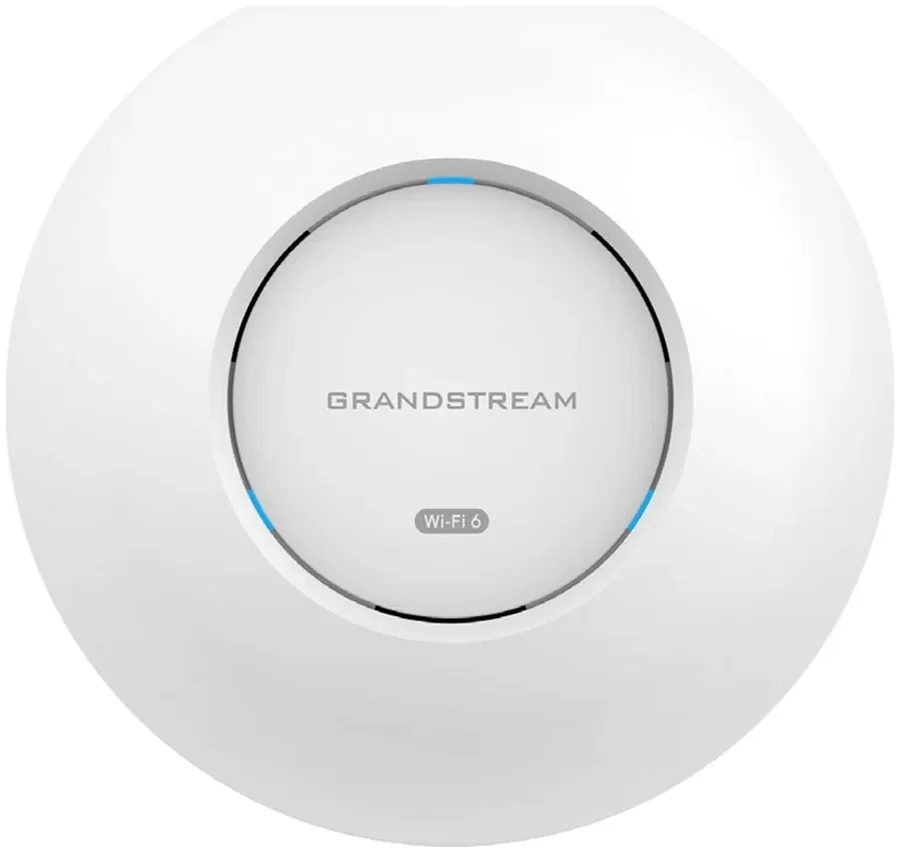

Access Point Grandstream GWN7660

The Grandstream GWN7660 is an enterprise Wi-Fi 6 (802.11ax) access point for building wireless networks in high-density environments. It runs dual-band 2x2:2 MU-MIMO with DL/UL OFDMA, delivering up to 1.77Gbps aggregate wireless throughput and up to 175 m coverage.

The AP has two Gigabit ports and is powered by PoE or PoE+ with automatic adaptation and only 9W maximum consumption. It supports 500+ concurrent clients, 32 SSIDs, mesh networks and captive portals, and is managed via the embedded controller, the GDMS Networking cloud or GWN Manager.

Key features

• Dual-band Wi-Fi 6 - 2x2:2 MU-MIMO with DL/UL OFDMA: up to 1,201Mbps at 5GHz and up to 573.5Mbps at 2.4GHz, up to 1.77Gbps in total.
• 500+ clients - More than 500 concurrent devices and 32 SSIDs, with advanced QoS for voice and real-time applications.
• Two Gigabit ports - Two 10/100/1000 ports with PoE (802.3af) or PoE+ (802.3at) power and 9W maximum consumption.
• Mesh and captive portal - Support for mesh networks, captive portals for guest Wi-Fi and seamless connection with Grandstream Wi-Fi phones.
• Free, flexible management - An embedded controller manages up to 50 local GWN access points, the free GDMS Networking cloud manages an unlimited number, and GWN Manager software handles up to 3,000 APs on premises.
• Enterprise-grade security - WPA3, anti-hacking secure boot, critical data and control lockdown via digital signatures, and a unique security certificate and random default password for every device.

Specifications

In the box

• Grandstream GWN7660 access point
• Mounting kits
• Quick start guide
