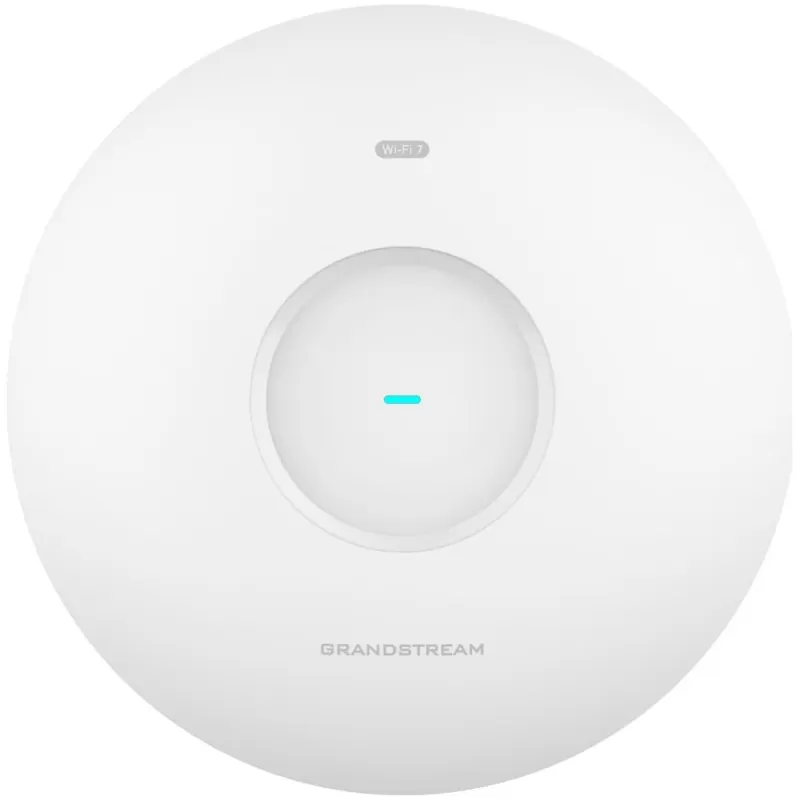

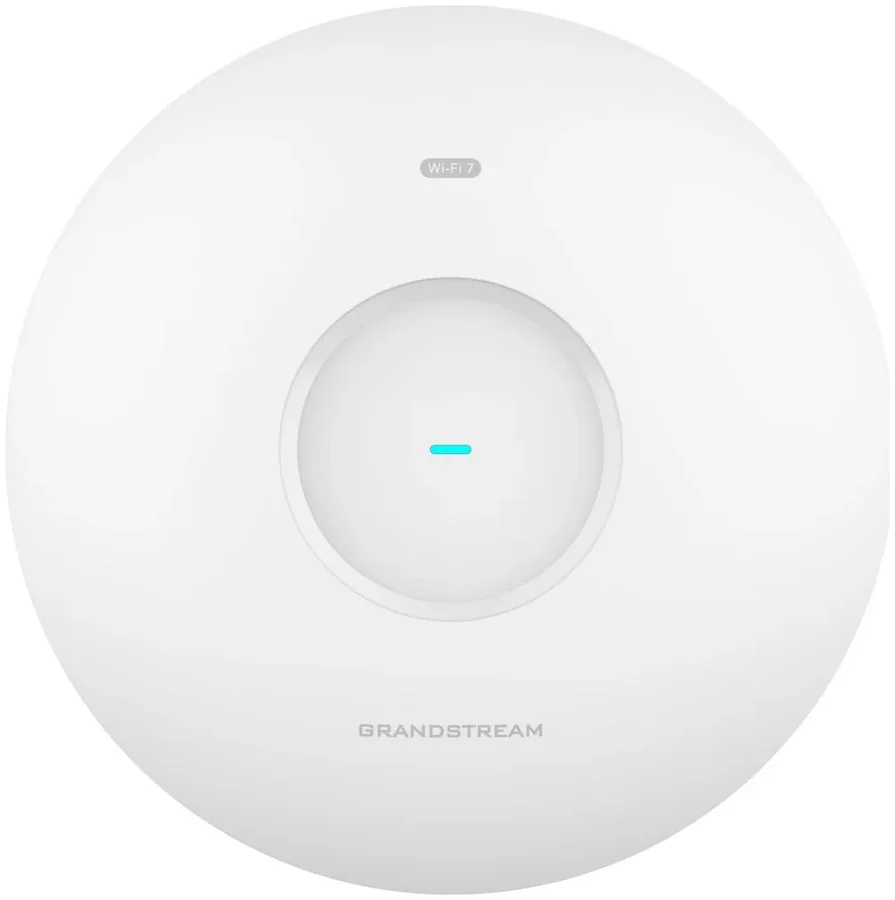

| Revew | Access Point Grandstream GWN7672The Grandstream GWN7672 is an enterprise Wi-Fi 7 (802.11be) access point with three radio bands: 2.4GHz, 5GHz and 6GHz, each in a 2x2:2 MU-MIMO configuration. It delivers up to 11Gbps aggregate wireless throughput and is built for high-density environments, supporting up to 384 concurrent clients and a coverage range of up to 175 meters. Wi-Fi 7 technologies such as MLO, 4096-QAM, MRU and preamble puncturing improve spectrum use and resistance to interference. Two 5GbE ports provide fast backhaul, the AP is powered by PoE+ (802.3at), and it can be managed via the local web UI, the embedded controller, the GDMS Networking cloud or GWN Manager software.
Key features- Tri-band Wi-Fi 7 - 2.4GHz, 5GHz and 6GHz radios, each 2x2:2 MU-MIMO, with channels up to 240MHz wide in 5GHz and up to 320MHz in 6GHz and up to 11Gbps combined.
- Wi-Fi 7 technologies - MLO for simultaneous multi-band links, 4096-QAM, MRU and preamble puncturing for better channel use and interference resistance.

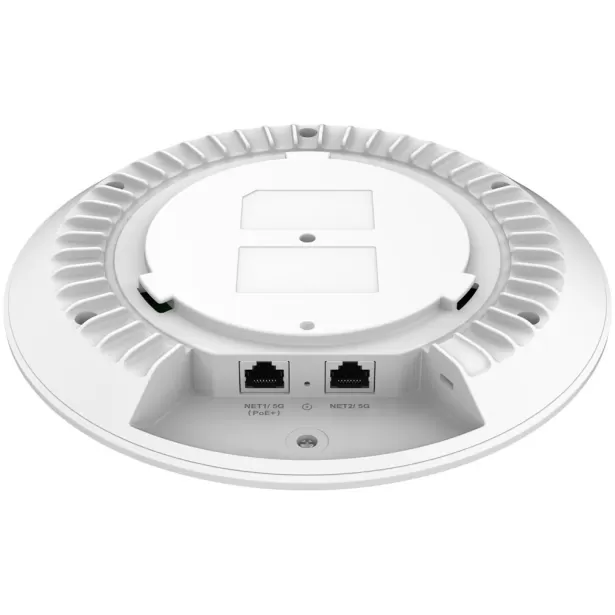

- Two 5GbE ports - Two 5GbE RJ45 ports with 10Gbps aggregate wired throughput and PoE+ (802.3at) power with automatic power source detection.
- 384 clients and Bluetooth 5.3 - Up to 384 concurrent devices and up to 48 SSIDs (16 per band), with built-in Bluetooth Low Energy 5.3 and advanced QoS for voice and real-time applications.
- Free, flexible management - An embedded controller manages up to 50 local GWN access points, the free GDMS Networking cloud manages an unlimited number, and GWN Manager software handles up to 3,000 APs on premises.
- Enterprise-grade security - WPA3, anti-hacking secure boot, critical data and control lockdown via digital signatures, and a unique security certificate and random default password for every device.
Specifications| Manufacturer | Grandstream | | Model | GWN7672 | | Type | Indoor tri-band Wi-Fi 7 access point | | Standards | IEEE 802.11a/b/g/n/ac/ax/be | | Wireless throughput | Up to 11Gbps (BE11000): 688Mbps at 2.4GHz, 4,320Mbps at 5GHz, 5,765Mbps at 6GHz | | MIMO | 2x2:2 per band | | Channel width | 2.4GHz: up to 40MHz, 5GHz: up to 240MHz, 6GHz: up to 320MHz | | Max TX power | 26dBm (2.4GHz), 25dBm (5GHz), 24dBm (6GHz) | | Antennas | 7 internal: 2 x 3.5dBi (2.4GHz), 2 x 5.5dBi (5GHz), 2 x 5.5dBi (6GHz), 1 x 3.5dBi (Bluetooth) | | Coverage range | Up to 175 m | | Concurrent clients | 384 | | SSIDs | 48 (16 per band) | | Network ports | 2 x 5GbE RJ45 | | Bluetooth | Bluetooth Low Energy 5.3 | | Power | PoE+ 802.3at, 25W max consumption | | Management | Web UI, embedded controller (up to 50 APs), GDMS Networking, GWN Manager | | Mounting | Wall or ceiling, kits included | | Operating temperature | 0 to 45°C | | Dimensions | 220 mm diameter, 54 mm height | | Weight | 838 g |
In the box- Grandstream GWN7672 access point
- Mounting kits
- Quick start guide
|
