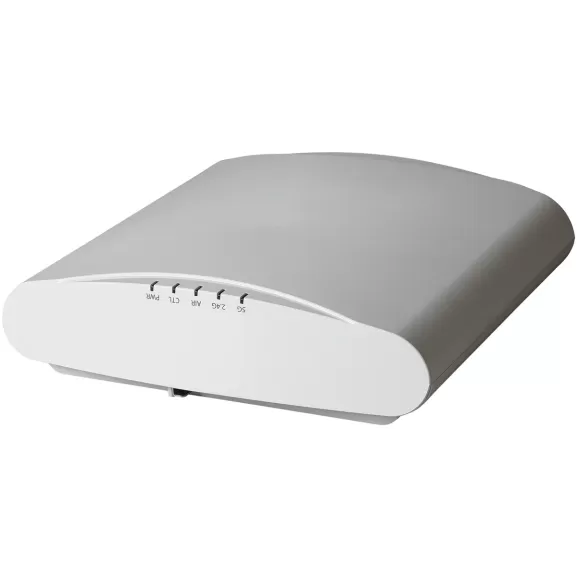

Access point Ruckus R720 901-R720-Z200

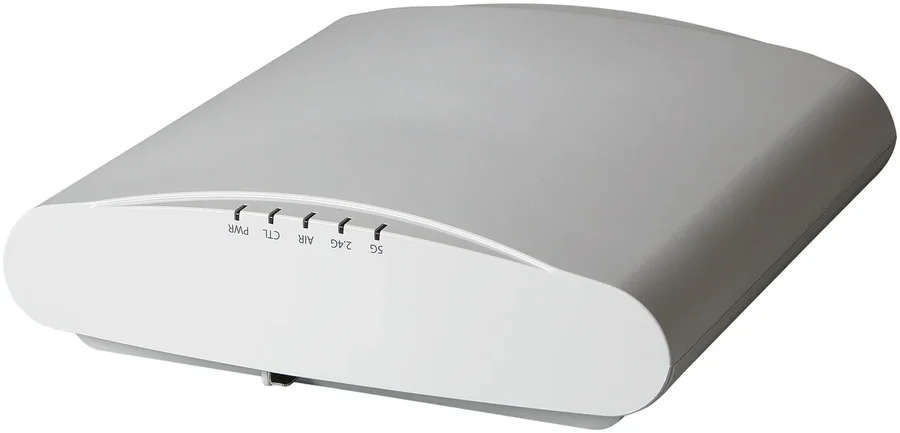

Ruckus R720 802.11ac Wave 2 Indoor Access Point

The Ruckus R720 is an indoor 802.11ac Wave 2 access point, the highest-capacity four-stream Wave 2 model from Ruckus. It runs 2.4GHz and 5GHz concurrently with 4x4:4 and MU-MIMO, supports 160MHz and 80+80MHz channels and serves up to 512 clients. It is designed for enterprises, office buildings, campuses and conference centers with a heavy device load.

A 2.5GbE (802.3bz) port with PoE input carries the full wireless throughput over existing Cat 5e cabling, alongside a 1GbE port and a USB 2.0 port for BLE and IoT add-ons. The AP can be managed by SmartZone, ZoneDirector, Unleashed, the cloud or in standalone mode. An acoustic drop ceiling bracket is included; a power adapter or PoE injector is not.

Key features

• Wi-Fi 5 Wave 2 4x4:4 - Four spatial streams and MU-MIMO at 2.4GHz and 5GHz, with 160MHz and 80+80MHz channels.
• 2.5GbE port - Multi-gigabit uplink over existing Cat 5/5e/6 cabling, plus a 1GbE port.
• BeamFlex+ antennas - Adaptive antennas with over 4,000 patterns per band for better coverage in busy spaces.
• ChannelFly - Learning-based automatic channel selection to stay on the least congested channel.
• SmartMesh - Self-forming, self-healing wireless mesh without extra cabling.
• Flexible management - SmartZone, ZoneDirector, Unleashed, cloud or standalone, with a USB port for add-ons.

Specifications

In the box

• Ruckus R720 access point
• Acoustic drop ceiling bracket
