Switch PoE DAHUA PFS3110-8ET1GT1GF-96 DH-PFS3110-8ET1GT1GF-96 Color:black

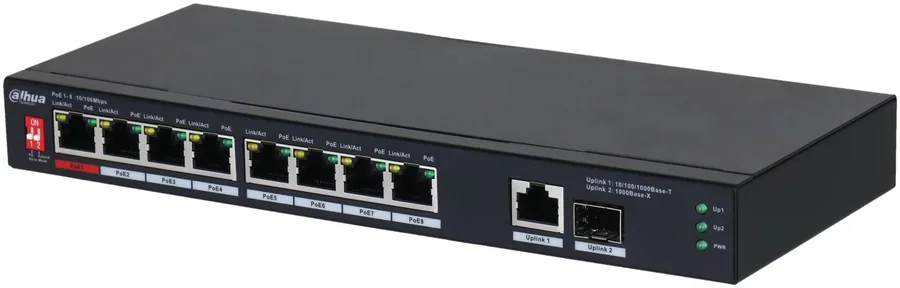

Unmanaged PoE Switch DAHUA PFS3110-8ET1GT1GF-96

The DAHUA PFS3110-8ET1GT1GF-96 is a 10-port unmanaged desktop switch built for IP camera systems. It has 8 x 10/100 PoE ports, one 1Gbps RJ45 uplink and one 1Gbps SFP port for fibre, with a 96W total PoE budget.

Port 1 supports IEEE 802.3bt and Hi-PoE up to 90W for PTZ cameras and other high-power devices, while the other ports deliver up to 30W. The switch supports long-distance PoE up to 250 m at 10Mbps and PoE Watchdog, which restarts a camera that stops responding. It works from -10 to +55°C and the power adapter is included.

Key features

• 8 PoE ports and 2 uplinks - 8 x 10/100 PoE ports for cameras, a Gigabit RJ45 port and a Gigabit SFP port for the NVR, router or fibre link.
• One 90W port - Port 1 supports IEEE 802.3bt and Hi-PoE up to 90W, ports 2 to 8 up to 30W each, with a 96W total budget.
• Long-distance PoE - Long-distance mode allows cable runs up to 250 m at 10Mbps for cameras far from the cabinet without an extender.
• PoE Watchdog - The switch detects a camera whose connection has hung and restarts the port automatically, reducing site visits.
• Rugged and simple - Metal housing, 4kV surge protection, -10 to +55°C operating range and plug-and-play operation with no configuration.
