Switch PoE Grandstream GWN7803P

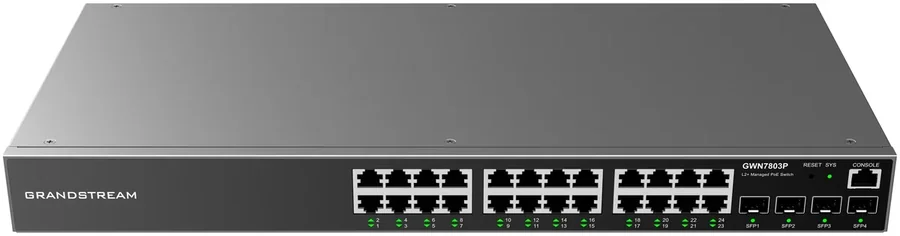

Grandstream GWN7803P 24-Port Gigabit PoE+ Managed Switch

The Grandstream GWN7803P is a Layer 2+ managed switch from the GWN7800 series with 24 Gigabit Ethernet ports, all supplying PoE/PoE+ to IEEE 802.3af/at, plus 4 x 1Gbps SFP ports for fiber links. With up to 30W per port and a total budget of 370W, it powers IP phones, security cameras, Wi-Fi access points and other PoE devices straight over the network cable.

The switch supports advanced VLANs, QoS, IGMP Snooping and security tools such as ARP Inspection, IP Source Guard and DHCP Snooping. It can be managed through the web UI with its embedded controller, GDMS Networking cloud, GWN Manager software, GWN routers and CLI, and ships with kits for 19-inch rack mounting, while desktop and wall installation are also supported.

Key features

• 24 PoE+ ports - Every Gigabit port delivers up to 30W within a 370W total budget, with dynamic power allocation, port priority and scheduled PoE.
• 4 SFP ports - 4 x 1Gbps SFP ports for fiber uplinks to a core switch, a router or another building.
• Performance - 56Gbps switching capacity, 41.66Mpps forwarding rate, 28Gbps non-blocking throughput and average latency below 4 µs.
• Layer 2+ and security - 4K VLANs, QinQ, Voice VLAN, static routing, ACLs, 802.1X and RADIUS authentication, DoS protection, ARP Inspection and DHCP Snooping.
• Free management - Managed through the web UI with its embedded controller, GDMS Networking cloud, GWN Manager software, GWN routers and CLI, with SNMP, RMON and Syslog for monitoring.
• Energy efficiency - EEE on all Ethernet ports and 2 fans with speed control based on ambient temperature.

Specifications

In the box

• GWN7803P switch
• 1.2 m AC power cable
• 25 cm ground cable
• 2 x rack-mounting kits
• 4 x rubber footpads
• 8 x M3 x 6 mm screws
• Quick installation guide
• Regulatory information
