Switch PoE Grandstream GWN7700P

Unmanaged PoE Switch Grandstream GWN7700P

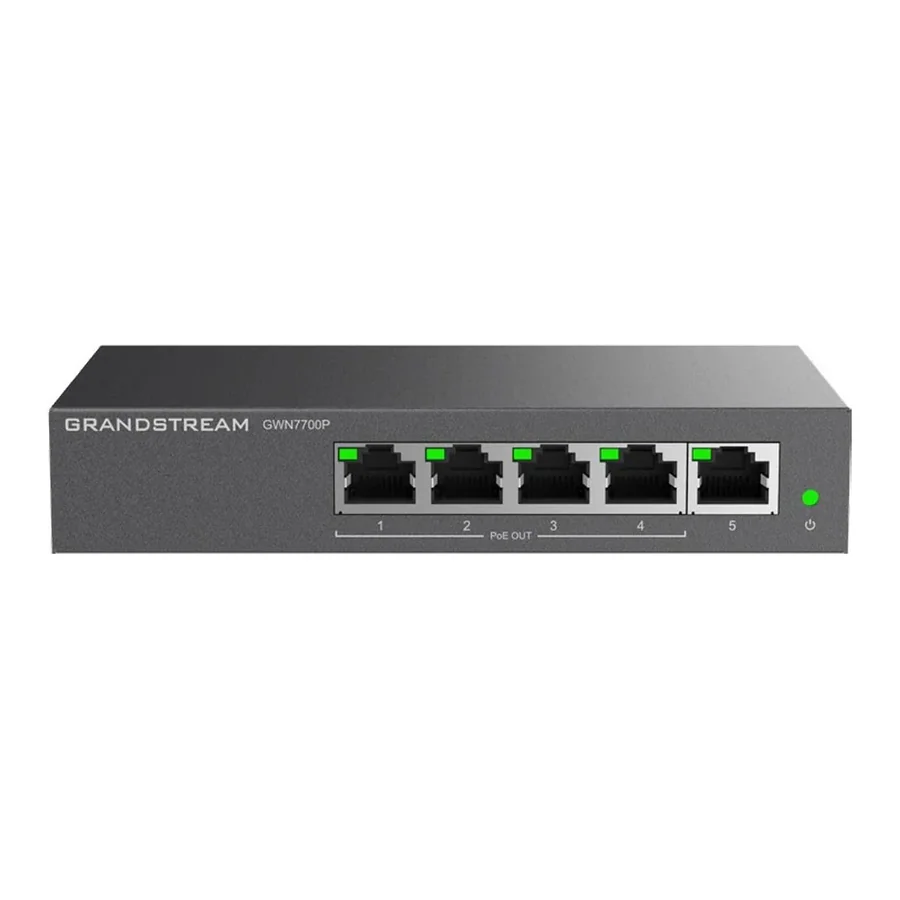

The Grandstream GWN7700P is a compact unmanaged Gigabit switch with 5 RJ45 ports at 10/100/1000 Mbps, four of which deliver IEEE 802.3af/at PoE. It suits home offices and small businesses that need to power a few IP phones, cameras or Wi-Fi access points from a single network point, with no configuration at all.

Ports 1 to 4 deliver up to 30 W each within a 60 W total PoE budget, and port 5 connects the switch to the router or network. The switch comes with an external power adapter in a 145 x 80 x 27 mm metal housing that stands on a desk or mounts on a wall.

Key features

• 5 Gigabit ports - Five 10/100/1000 Mbps RJ45 ports with auto MDI/MDIX and auto negotiation, 10 Gbps switching capacity.
• 4 PoE+ ports - Ports 1 to 4 deliver IEEE 802.3af/at PoE up to 30 W per port, within a 60 W total budget.
• Overload protection - When consumption exceeds the budget, the switch cuts off the lowest-priority port first and the rest keep working.
• Plug and play - No configuration: 802.1p/DSCP QoS, IGMP snooping, 802.3x flow control and jumbo frames up to 9 KB.
• Small and light - 145 x 80 x 27 mm metal housing weighing 0.26 kg, desktop or wall mounting and Link/Activity LEDs on every port.

Specifications

In the box

• Grandstream GWN7700P switch
• Power adapter
• Quick installation guide
