Switch Omada OC300 Color:black

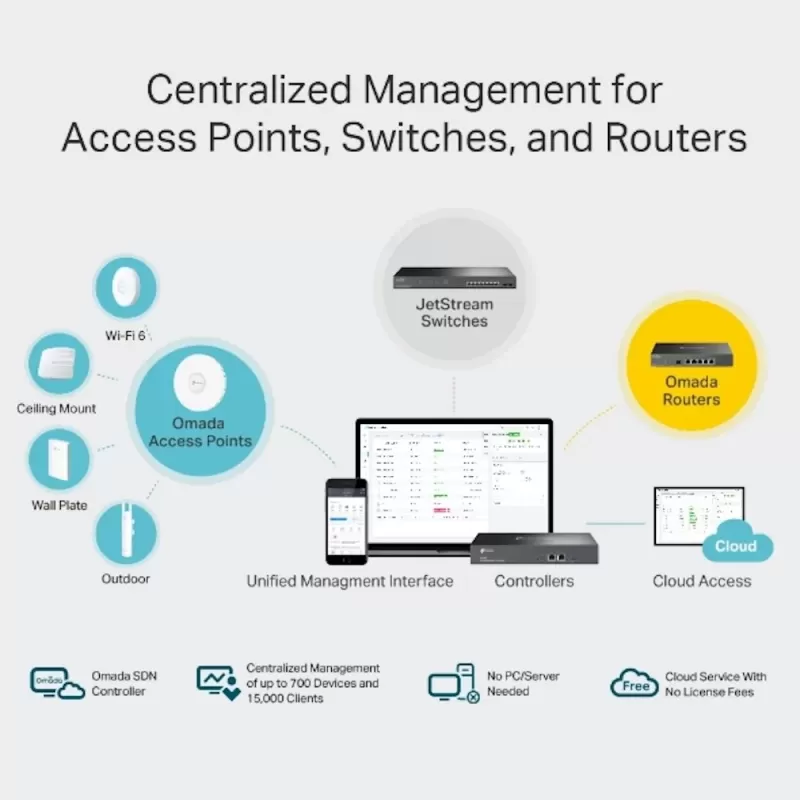

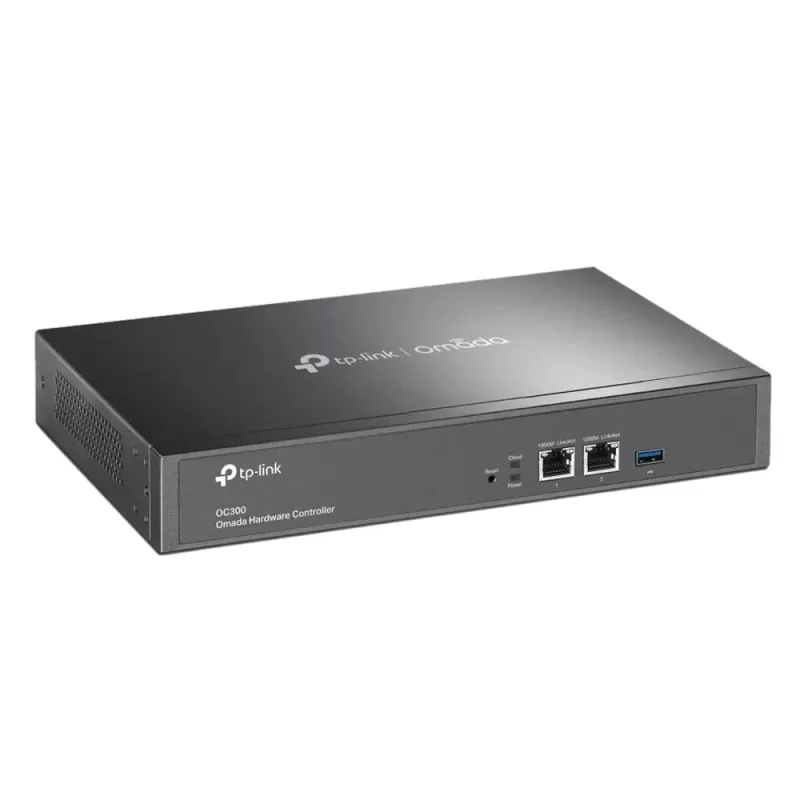

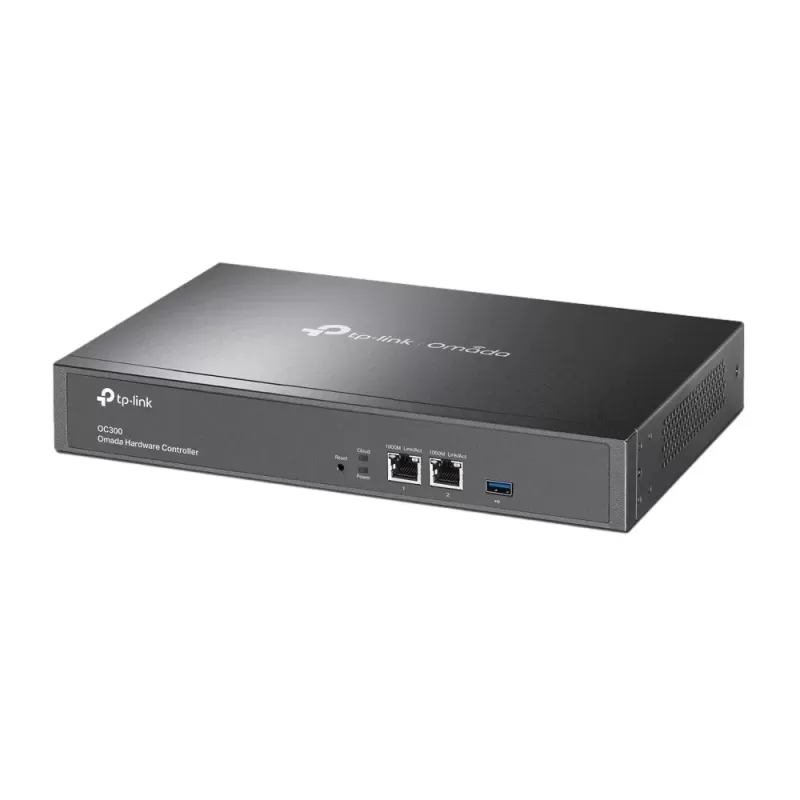

The TP-Link Omada OC300 is a powerful, stable hardware controller for centralized management of smart networks in an Omada SDN environment, providing full control over up to 500 access points, 100 switches, 100 routers, and 5 GPON OLT systems. The controller enables cloud management via the Omada app or a web browser, as well as secure local management with maximum availability and stability. With an advanced processor, a quality metal enclosure, automatic backup via USB 3.0, and two Gigabit ports, the OC300 is purpose-built for enterprises, hotels, educational institutions, and multi-site businesses.

Omada is an advanced, smart network platform for centralized cloud management of routers, switches, and access points, suited for businesses of any size — from small installations to large-scale enterprise projects. Advanced management with Omada SDN — including Zero-Touch Provisioning (ZTP).

• Centralized management for up to 500 access points, 100 switches, 100 routers, and 5 OLTs
• Free cloud access via the Omada app or a browser from anywhere
• Local (on-premises) management with high security and system stability
• Full metal enclosure with an industrial design and high durability
• USB 3.0 for automatic configuration backup
• Smart graphical management interface: network topology, heatmap, alerts, reports
• Batch configuration and batch firmware upgrade for easy, time-saving management
• Suitable for rackmount installation

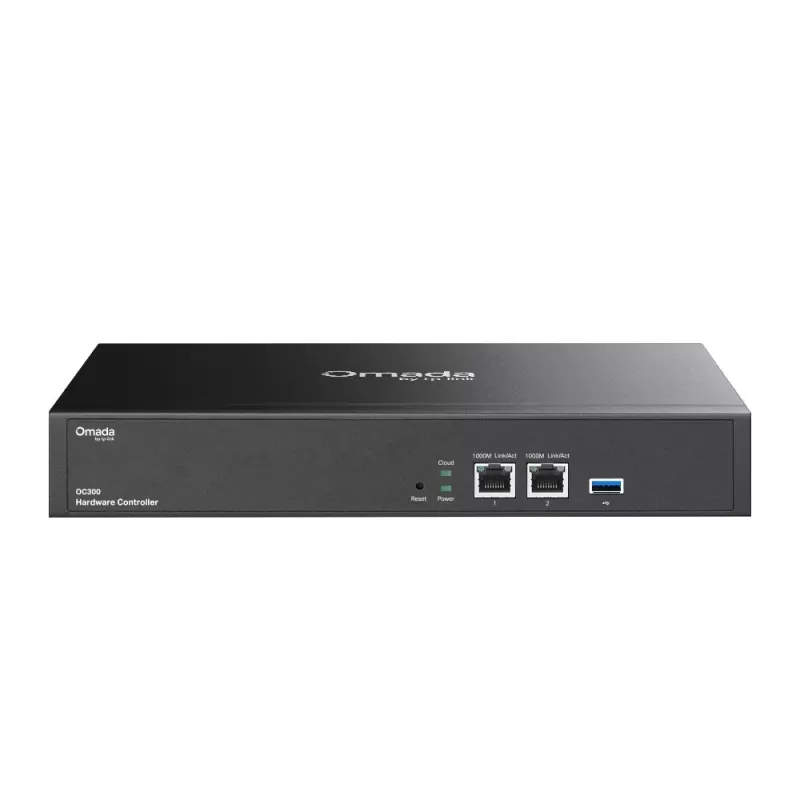

• Interfaces: – 2× 10/100/1000Mbps RJ45 ports – 1× USB 3.0 port (for automatic backup)

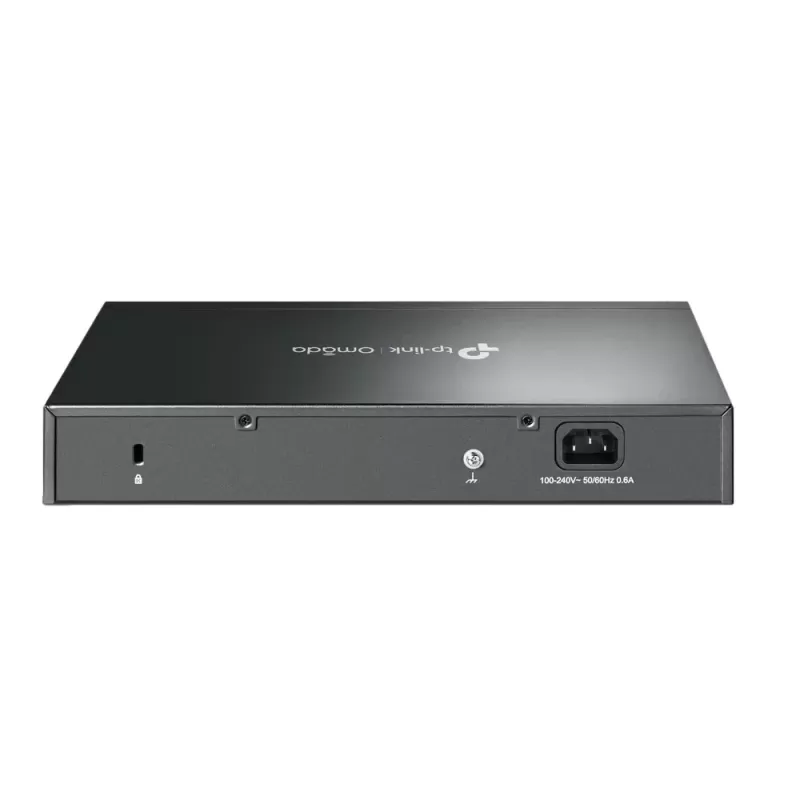

• Power input: 100–240V AC, 50/60Hz
• Current draw: 0.6A
• Dimensions: 294 × 180 × 44 mm
• Build: industrial metal enclosure
• Installation: rackmount or desktopManagement capabilities:

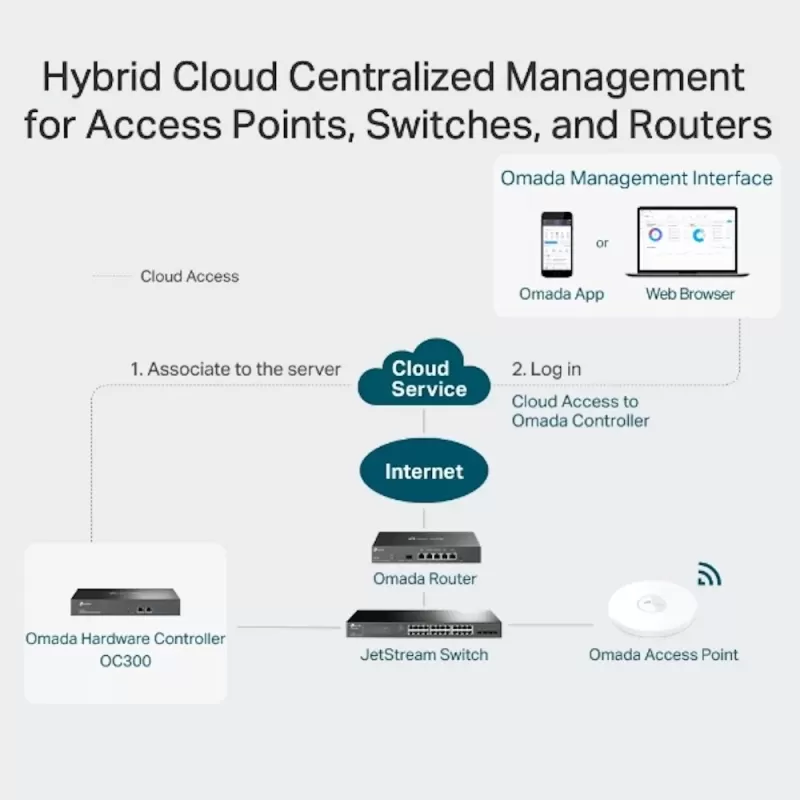

• Cloud access – via the Omada Cloud portal or app
• Local (on-premises) management – independent of the internet
• Multi: Site Management – full control over multiple sites
• Automatic Device Discovery – automatic identification of network devices
• Batch Configuration / Batch Firmware Upgrade / Reboot Schedule
• Captive Portal Configuration – secure guest network management
• Intelligent Network Monitoring & Alerts – real-time notifications and status view
• Unified Configuration – uniform management of all devices
• Network Topology Visualization – interactive graphical network mapping
• Wi: Fi Heatmap & Reports – performance simulation and analysisDevice management capacity:
• Up to 500 access points (APs)
• Up to 100 switches (Switches)
• Up to 100 routers (Routers)
• Up to 5 GPON OLT systemsOperating environment:
• Operating temperature: 0°C–50°C
• Storage temperature: -40°C–70°C
• Operating humidity: 10–90%, non-condensing
• Storage humidity: 5–90%, non-condensing
• Standards: CE, FCC, RoHS
• Warranty: 3 years

The package includes:

• OC300 Omada hardware controller
• Power cable
• Rack: mount installation kit
• Quick installation guide
• Network cable
