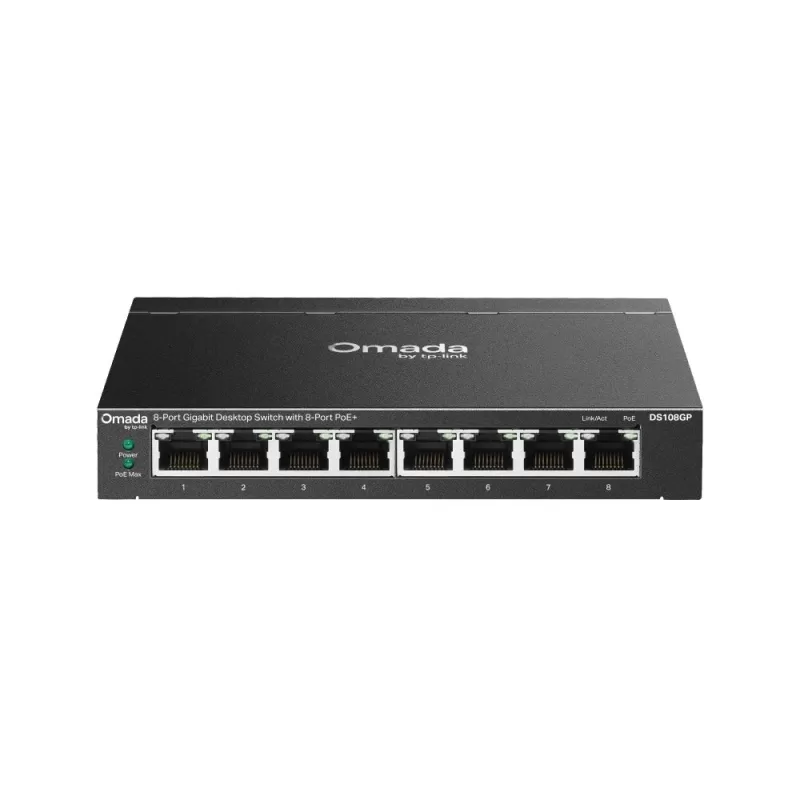

Switch Omada +PoE 8 DS108GP DS108GP

An unmanaged desktop Gigabit switch with 8 PoE+ ports, ideal for simple, efficient deployments of IP cameras, wireless access points, and other PoE-enabled devices. Delivers a total PoE power budget of up to 65W, supports an extended range of up to 250 meters, and offers completely quiet operation thanks to its fanless design.

• 8 Gigabit ports with full PoE+ support
• Compliant with IEEE 802.3af/at standards – up to 30W per port
• Total PoE power budget of up to 65W across all ports
• Extend mode enables data and power transmission up to 250 meters
• PoE Auto Recovery mechanism ensures continuous operation of end devices
• Supports QoS by 802.1p/DSCP – priority for voice and video traffic
• Simple installation – Plug & Play, no configuration required

• Network ports: 8× Gigabit RJ45 (10/100/1000Mbps), supporting Auto-Negotiation and Auto-MDI/MDIX
• PoE support: – 8× PoE+ ports (802.3af/at standard) – up to 30W per port – total PoE budget: 65W
• Performance: – switching rate: 16Gbps – packet forwarding rate: 11.904Mpps – jumbo frame: 16KB – MAC table: 4K
• Extend mode: – up to 250m of data + power transmission (on ports 1–2)
• PoE Auto Recovery: – automatic reboot for stuck/unresponsive PD devices (on all 8 ports)
• QoS and IGMP: – 802.1p/DSCP QoS for latency-sensitive traffic – IGMP Snooping to improve performance on IPTV networks

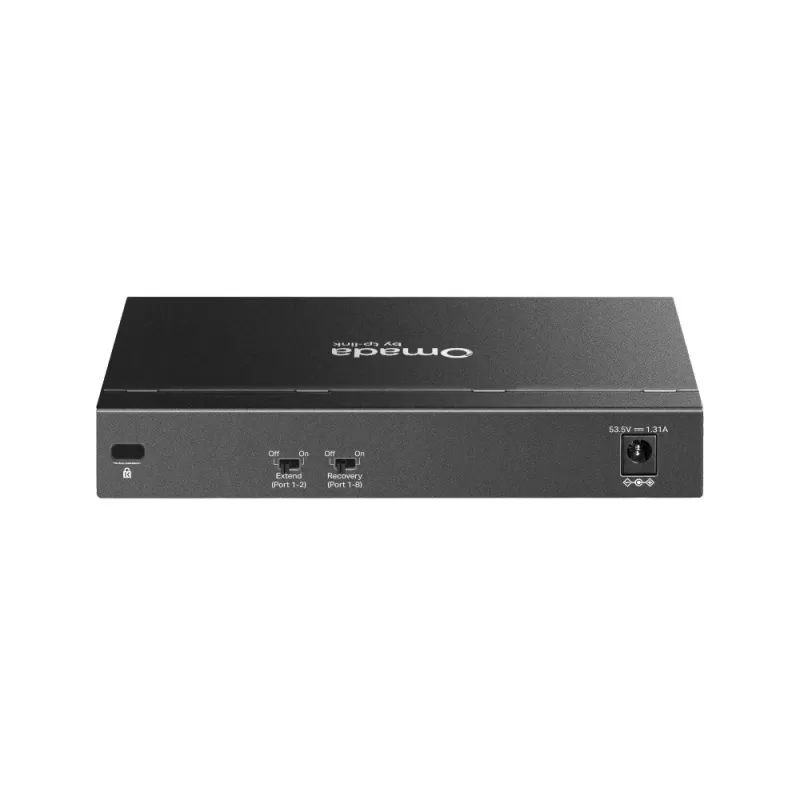

• Build and power: – input: 53.5VDC / 1.31A power adapter – maximum power consumption: 75.75W – fanless – built-in physical security lock – dimensions: 158 × 101 × 25 mm (6.2 × 4.0 × 1.0 in)
• Package contents: DS108GP, power adapter, installation guide
• Temperature and humidity: – operating: 0–40°C – storage: –40–70°C – humidity: 10–90% non-condensing
• Warranty: 3 years

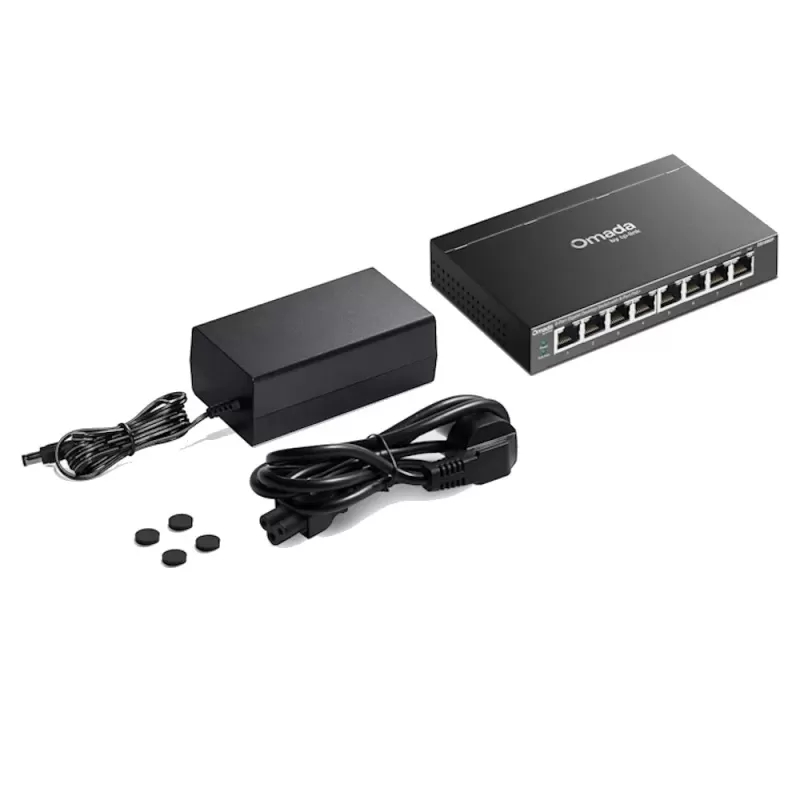

In the box:

• DS108GP switch
• Power adapter
• Installation guide
• Rubber feet for desktop installation.
