Switch Omada ++PoE SX3832MPP SX3832MPP

The SX3832MPP from TP-Link Omada is an advanced enterprise-managed 10G L2+ switch designed for high-performance projects. It features 24 Multi-Gig 10G PoE++ ports supporting up to 90W per port, and 8 10G SFP+ ports for especially fast uplink connections. With a total power budget of 770W, full cloud management capabilities through the Omada SDN system, support for Omada Essentials for free smart cloud management, Static Routing support, advanced QoS, ERPS, and DDM, it's built to deliver the perfect solution for Wi-Fi 7 networks, IP cameras, communication servers, and modern data center infrastructure.

Omada is a smart, advanced network platform for centralized cloud management of routers, switches, and access points, suited for businesses of any size – from small installations to large-scale enterprise projects – including Zero-Touch Provisioning (ZTP).

• Omada Essentials centralized cloud management – smart cloud management with secure storage on AWS.
• 24× RJ45 Multi-Gig 10G PoE++ ports (802.3bt/at/af) up to 90W per port
• 8× SFP+ 10G ports for high-bandwidth Uplink connections
• Total power budget of 770W – ideal for projects with thermal cameras, Wi-Fi 7 APs, and VoIP
• Smart cloud management via the Omada SDN Controller
• Static Routing / VLAN / ACL / QoS / IGMP Snooping / ERPS / DDM
• Dual Image / Cable Diagnostics / sFlow / TACACS+ / 802.1X / IPv6 Ready
• Reinforced metal chassis, four fans for active cooling
• Rack: mount installation

• Interfaces: – 24× 100M/1G/2.5G/5G/10G RJ45 (PoE++ supported) – 8× SFP+ 1/10G – 1× RJ45 Console – 1× USB Type-C Console
• PoE standards: 802.3af/at/bt
• Total power budget: 770W
• Power per port: up to 90W
• Maximum power consumption: 1010W
• Switching capacity: 640Gbps
• Packet forwarding rate: 240Mpps
• MAC table: 32K
• Packet buffer: 24Mbit
• Jumbo frame: 9KB
• Dimensions: 440×330×44 mm
• Fans: 4
• Chassis: reinforced metal, physical lock
• Mounting: RackmountNetwork and management capabilities:
• Advanced QoS: 8 queues, 802.1p/DSCP, SP/WRR Scheduling
• L2/L2+: Static Routing, DHCP Server/Relay, LACP, STP, Loopback Detection
• Multicast: IGMP Snooping, MVR, MLD Snooping
• ISP & Enterprise Features: ERPS, L2PT, OAM, DLDP, PPPoE ID, DDM
• VLAN: up to 4K VLAN, including Voice VLAN, Private VLAN, QinQ, MAC VLAN
• ACL: by MAC/IP/Port/Time – with Mirror / Redirect / QoS Remark
• Security: 802.1X, MAB, AAA (including TACACS+), IP-MAC-Port Binding, DoS Defend, Storm Control
• IPv6: Dual Stack, ND Snooping, Static IPv6 Routing, IPv6 ACL
• MIBs / RMON: full support for RFCs and TP-Link Private MIBManagement capabilities:
• Secure Web GUI (HTTPS)
• CLI via Console or Telnet
• SNMP v1/v2c/v3 and RMON (1,2,3,9)
• Omada SDN Controller – Hardware / Software / Cloud
• Zero: Touch Provisioning
• Batch Config / Firmware Upgrade / Auto-Discovery
• Dual Image / System Log / SNTP / Cable Diagnostics
• Omada App for management and control from your phoneOperating environment:
• Operating temperature: -5°C to 45°C
• Storage temperature: -40°C to 70°C
• Operating humidity: 10–90% non-condensing
• Standards: CE, FCC, RoHS
• Warranty: 3 years

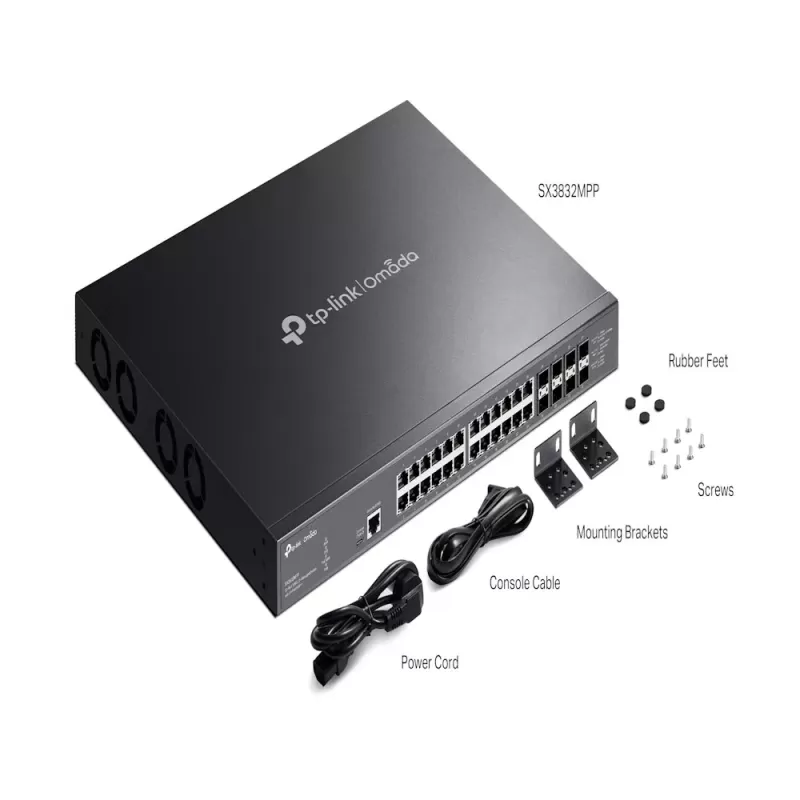

Package includes:

• Omada SX3832MPP switch
• Power cable
• Console cable
• Quick installation guide
• Rack mounting kit
