Switch Ruckus ICX8200-24FX

Network Switch Ruckus ICX8200-24FX

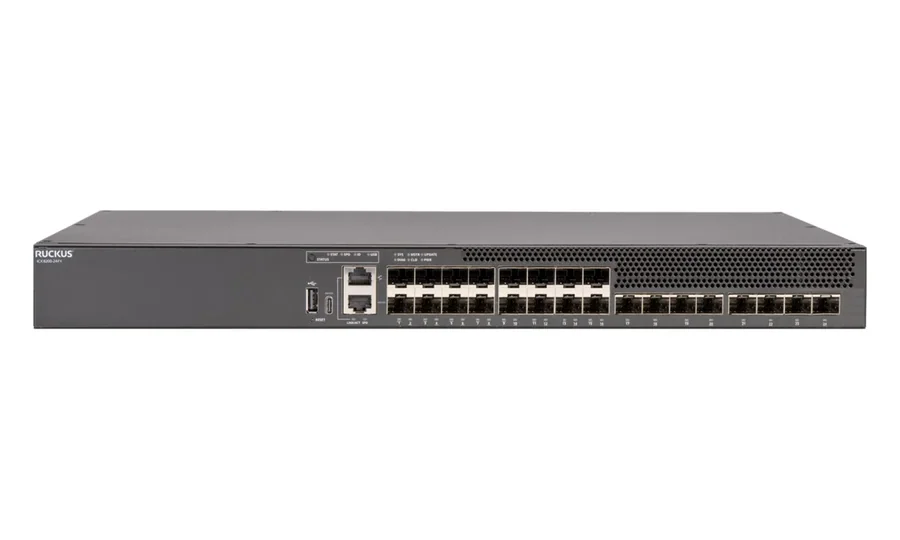

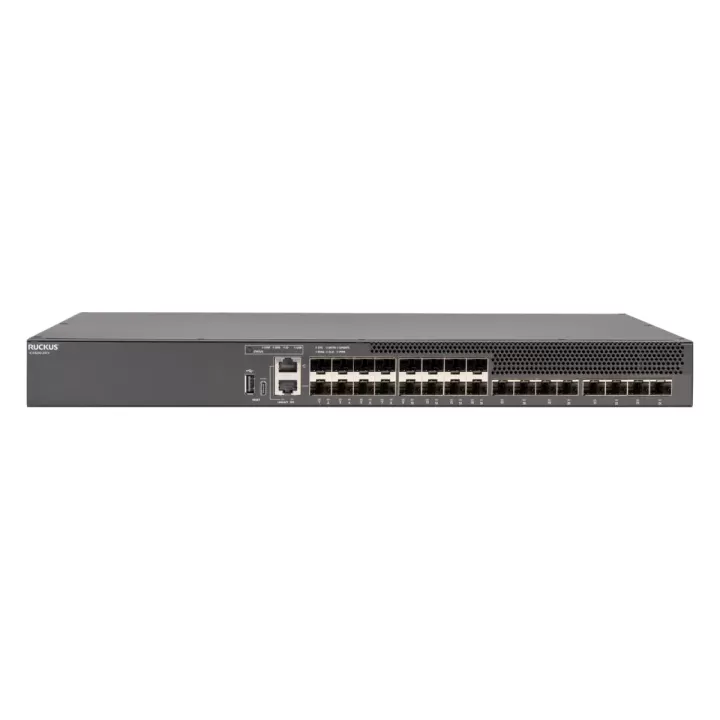

The Ruckus ICX8200-24FX is a managed, stackable fiber switch from the ICX 8200 series for the distribution layer, fiber-to-the-room deployments and aggregation of access switches. It has 16 SFP+ ports at 1/10GbE and 8 SFP28 ports at 1/10/25 GbE for uplinks or stacking.

With 720 Gbps switching capacity and a 533 Mpps forwarding rate, the switch runs at full speed on all ports. It stacks up to 12 units, supports Layer 3 routing and is managed via RUCKUS One or SmartZone. According to the manufacturer the power cord and SFP modules are not included.

Key features

• 16 x 10G SFP+ ports - 1/10GbE ports for connecting access switches, servers or rooms over fiber, using SFP or SFP+ modules as needed.
• 8 x 25G SFP28 ports - Eight 1/10/25 GbE ports for fast uplinks to the core or for stacking.
• 720 Gbps capacity - A 533 Mpps forwarding rate keeps switching at full speed even when all ports are loaded.
• Stacking of up to 12 switches - Stacking over up to four 25G ports with 1.2Tbps aggregate bandwidth and up to 10 km between units, managed as a single switch.
• Layer 3 and VXLAN - Static routing and RIP are built in. OSPF, VRRP, VRF, GRE, PIM, PBR, BGP and VXLAN require the ICX8200-PREM-LIC license.
• Management and security - RUCKUS One cloud, SmartZone, web interface and CLI, with 802.1X, DHCP snooping, Dynamic ARP Inspection and TPM.

Specifications
