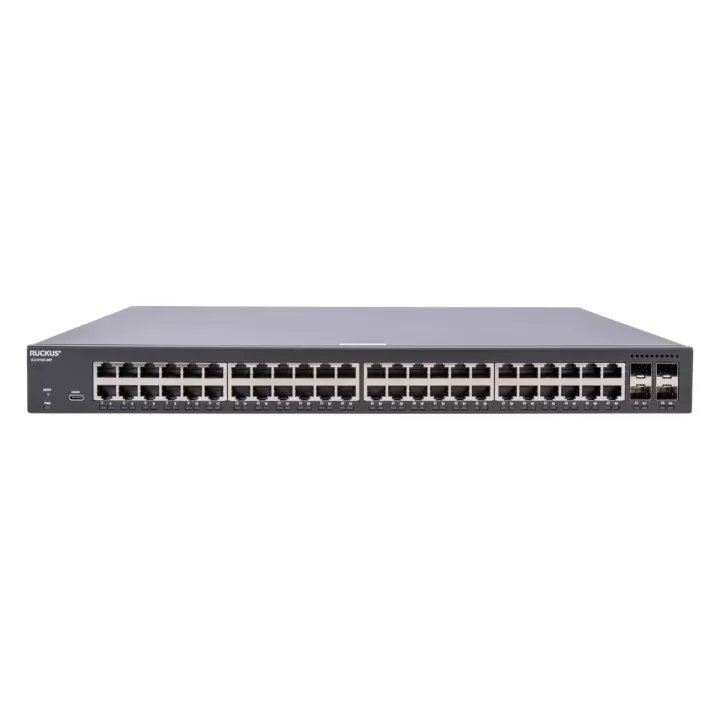

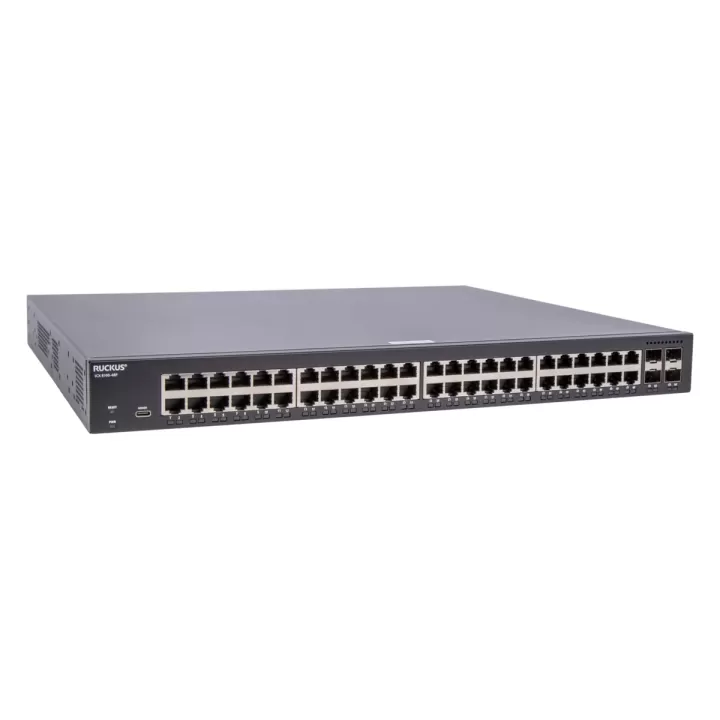

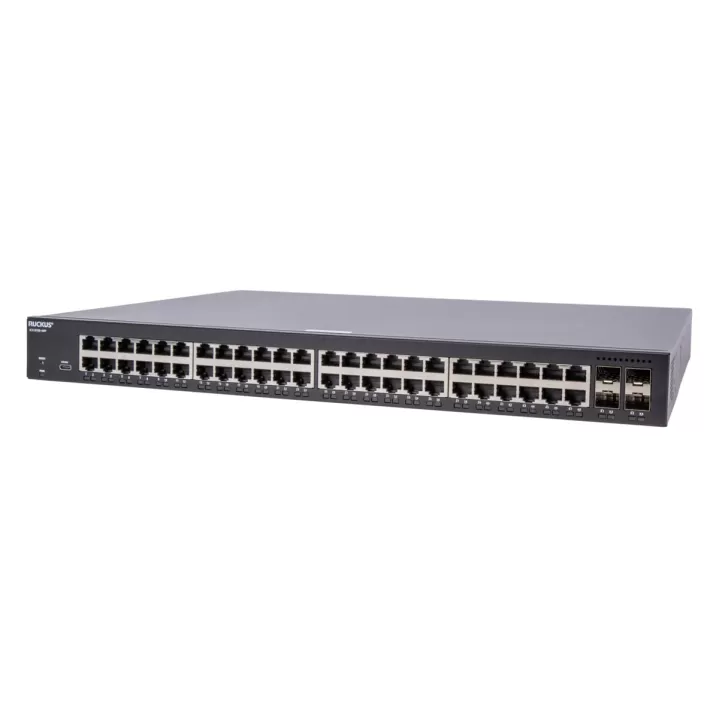

Switch Ruckus ICX8100-48PF

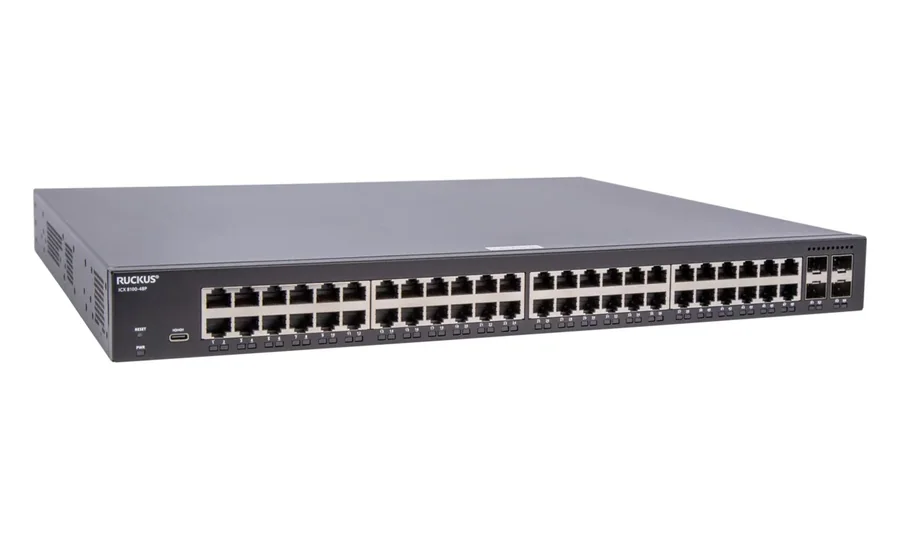

Network Switch Ruckus ICX8100-48PF

The Ruckus ICX8100-48PF is a 1U managed access switch from the ICX 8100 series for businesses, hotels, residential buildings and schools. It offers 48 10/100/1000 Mbps ports with PoE+ (802.3at) up to 30W per port and four 1GbE SFP uplink ports.

The 740W PoE budget powers 24 devices at 30W or all 48 ports at 15.4W, such as access points, IP phones and cameras. The switch is managed in the RUCKUS One cloud, via SmartZone, a web interface or CLI. According to the manufacturer the power cord is not included.

Key features

• 48 PoE+ ports - All 48 Gigabit ports provide 802.3at PoE+ up to 30W per port for access points, phones and cameras.
• 740W PoE budget - A built-in 920W power supply allows up to 24 ports at 30W or 48 ports at 15.4W simultaneously.
• Four SFP ports - Four 1GbE SFP ports for fiber uplinks to the distribution layer.
• Simple management - RUCKUS One cloud management with AI tools, SmartZone, a standalone web interface and CLI, suitable for small IT teams.
• Quiet mode - An optional fanless mode for noise-sensitive spaces, with PoE limited to 150W in this mode.
• Layer 2 features - VLANs, voice VLAN, IGMP/MLD snooping, QoS with 8 queues per port, 802.1X and DHCP snooping.
