Switch PoE Ruckus ICX8100-24P-X

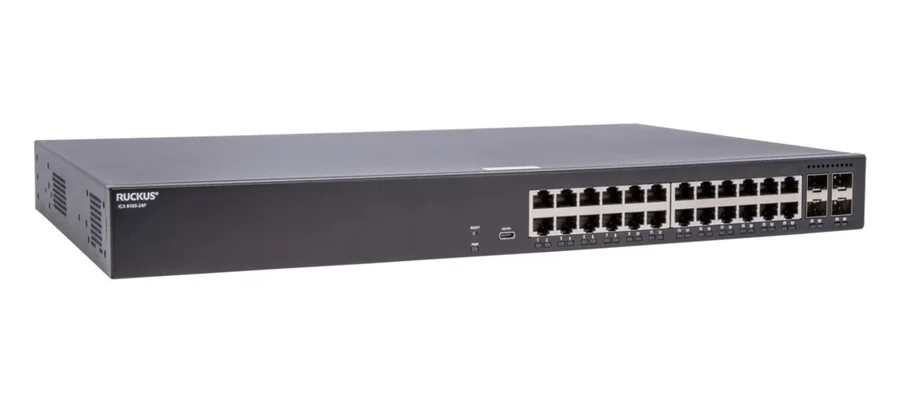

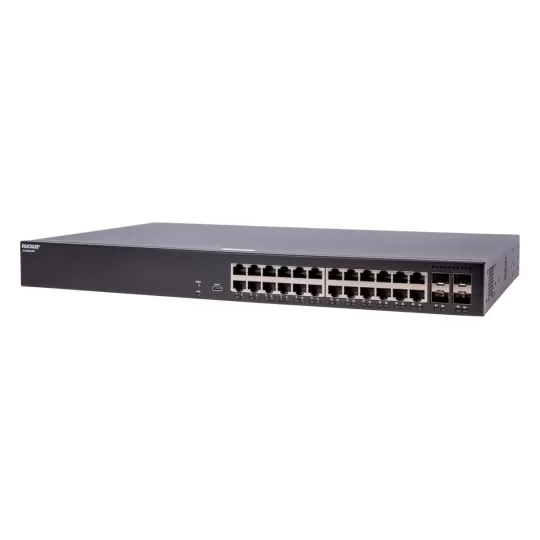

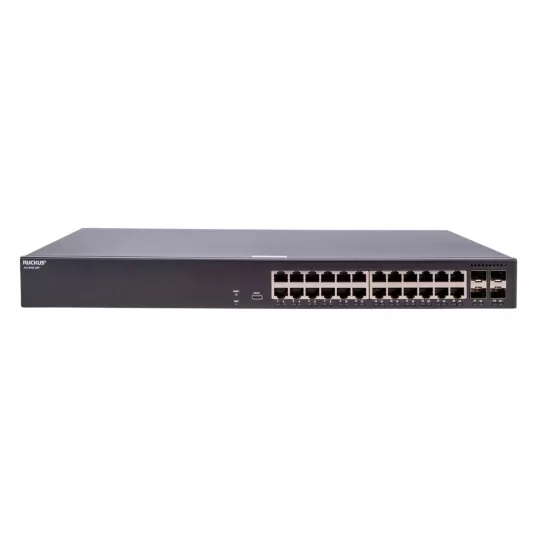

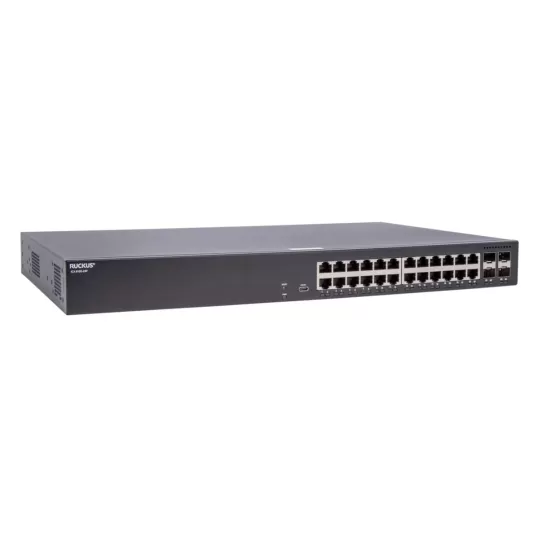

Ruckus ICX8100-24P-X 24-Port Gigabit PoE+ Managed Switch

The Ruckus ICX8100-24P-X is a 1U managed access switch from the ICX 8100 series with 24 Gigabit Ethernet ports supplying PoE+ to IEEE 802.3at, up to 30W per port within a 370W total budget, plus 4 x 1/10GbE SFP+ uplink ports. The series targets hotels, multi-dwelling residential buildings, education and businesses that need enterprise-class equipment at an affordable price, and is optimized for powering the latest Wi-Fi access points.

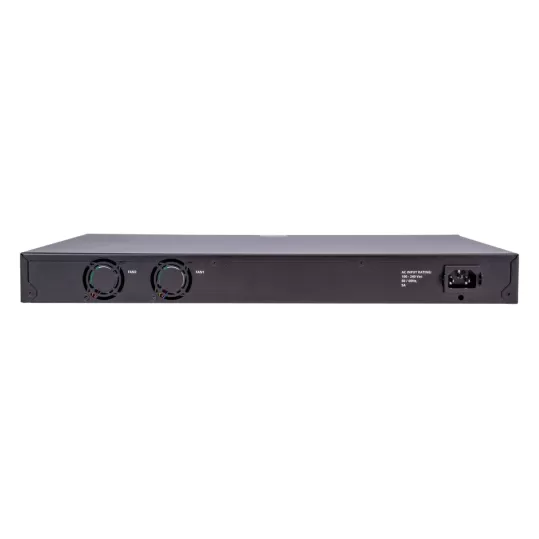

The switch can be managed from the RUCKUS One cloud with AI-driven monitoring and assurance, from a RUCKUS SmartZone controller, through the web interface or via CLI over the USB Type-C console port. The power supply is built in, and an optional fanless mode allows silent operation with the PoE budget limited to 150W. The power cord is not included.

Key features

• 24 PoE+ ports - Up to 30W per port to IEEE 802.3at within a 370W total budget for access points, cameras and IP phones.
• 4 x 1/10GbE SFP+ uplinks - Four 1/10GbE SFP+ ports to connect to a core switch or router over fiber.
• Flexible management - RUCKUS One cloud with AI, RUCKUS SmartZone controller, web interface and CLI, with a USB Type-C console port.
• Enterprise-class security - 802.1X, MAC and web authentication, DHCP Snooping, Dynamic ARP Inspection, RADIUS/TACACS+, RADSEC and a TPM chip.
• Advanced Layer 2 - VLANs, private VLANs, Q-in-Q, MSTP, LACP with up to 8 ports per group, IGMP/MLD Snooping and 8 QoS queues per port.
• Quiet operation - 23.2 dBA at minimum fan speed and an optional fanless mode with a PoE budget of up to 150W.
