Managed Switch Ruckus ICX7150-24-4X1G

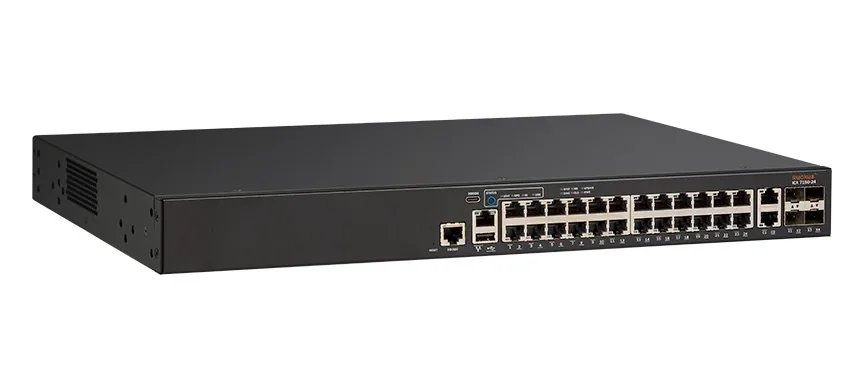

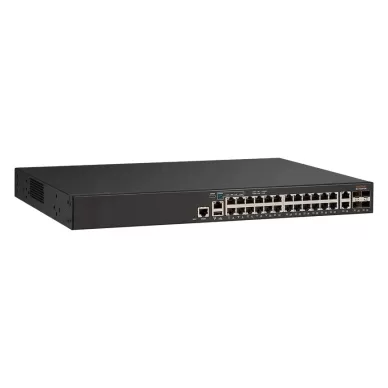

The RUCKUS ICX 7150-24-4X1G is a 1U managed access switch from the ICX 7150 family. It has 24 10/100/1000 RJ45 ports, 2 more 1Gbps RJ45 uplink ports and 4 SFP ports at 1Gbps that can be upgraded to up to 4 x 10G SFP+ with a licence.

The switch includes basic Layer 3 routing (static routing and RIP), with OSPF, VRRP and PBR available through an additional licence. After upgrading the ports to 10G, up to 12 switches can be combined in one stack. The fanless design makes it completely silent and suitable for offices, classrooms and shops outside the wiring closet.

Key features

• 24 Gigabit ports and 6 uplinks - 24 RJ45 ports at 1Gbps, 2 RJ45 uplink ports and 4 SFP ports for fibre links to the core switch.
• 10G upgrade by licence - The 4 x 1Gbps SFP ports can be upgraded to 4 x 10G SFP+ with a software licence, without replacing the switch.
• Layer 3 routing - Static routing and RIP for IPv4 and IPv6 in the base software, with OSPF, VRRP, PIM and PBR available with the advanced licence.
• Stacking up to 12 switches - With 10G ports, up to 12 switches form one stack with 480Gbps aggregate bandwidth and up to 10 km between switches.
• Silent and efficient - Fanless design, Energy Efficient Ethernet and a 36W internal power supply. Out-of-band management port, USB-C and RJ45 console ports and a USB storage port.
