Switch Teltonika TSW212 Color:black

Industrial Managed Switch Teltonika TSW212

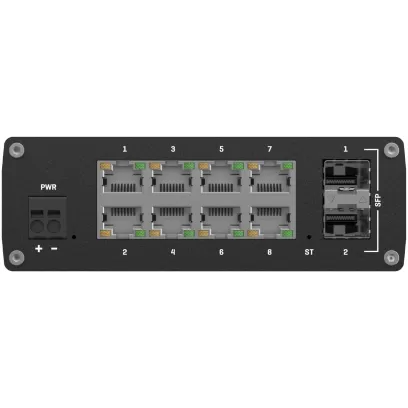

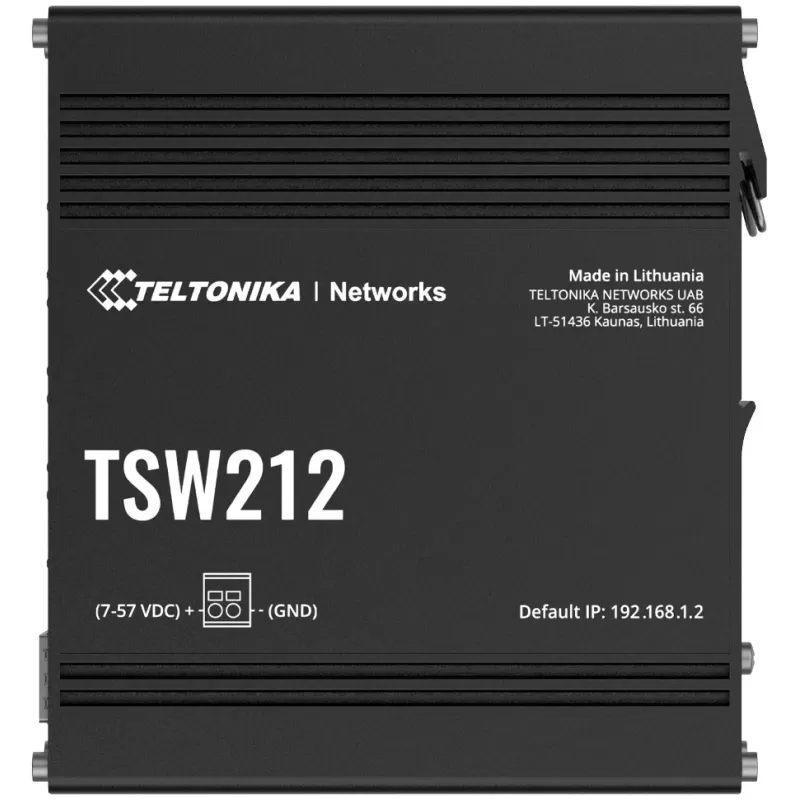

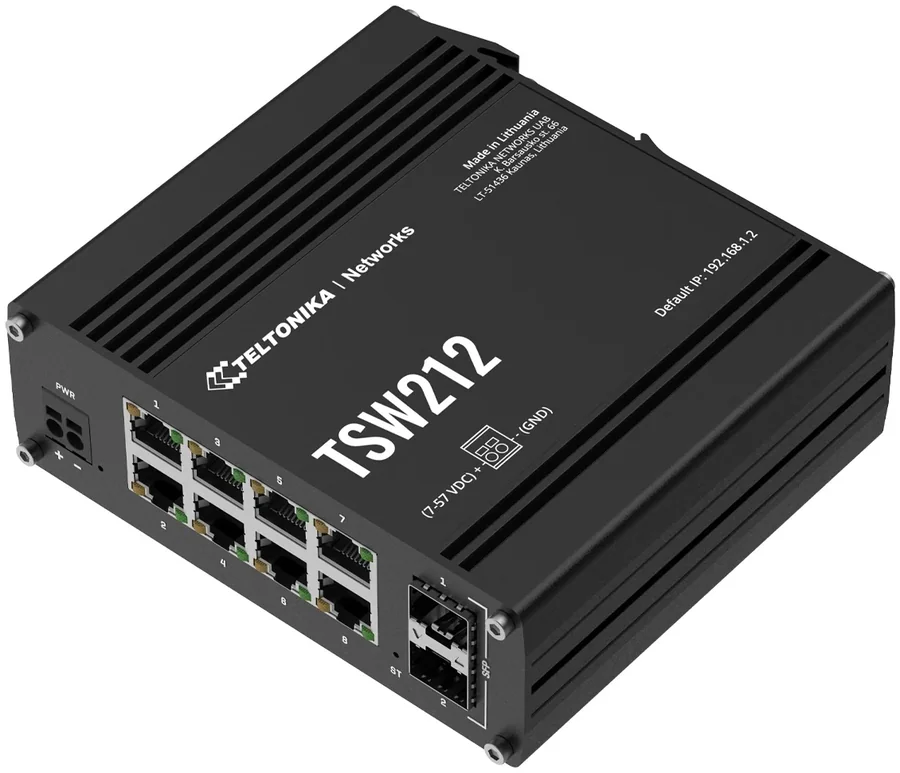

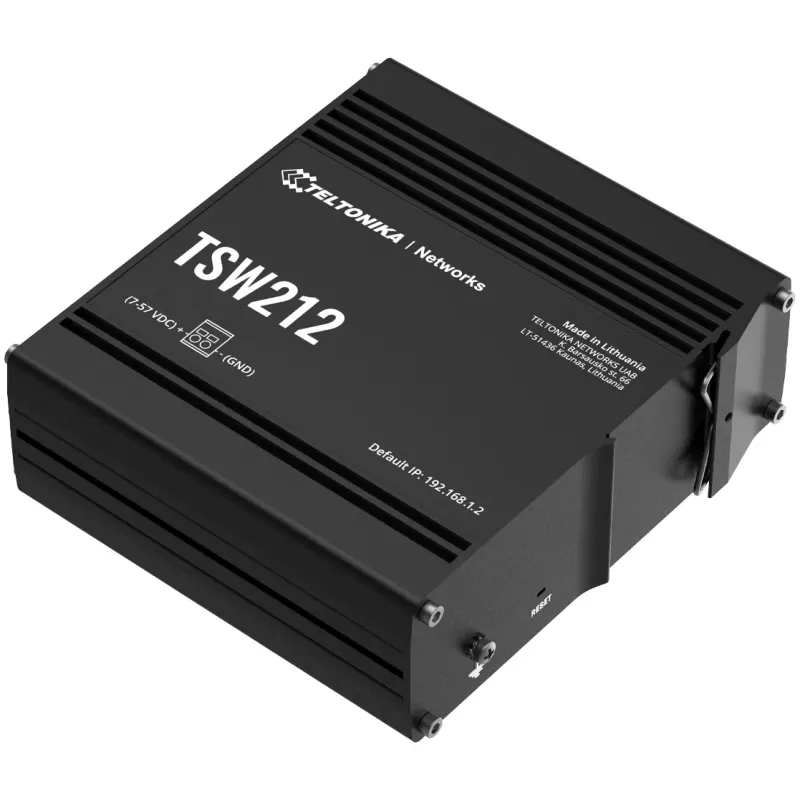

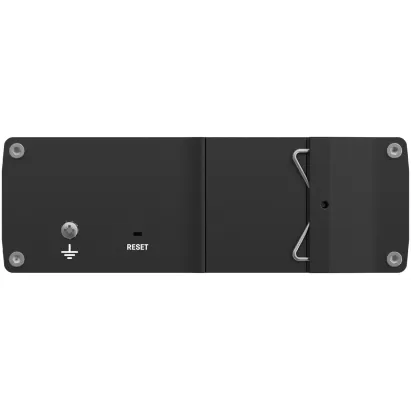

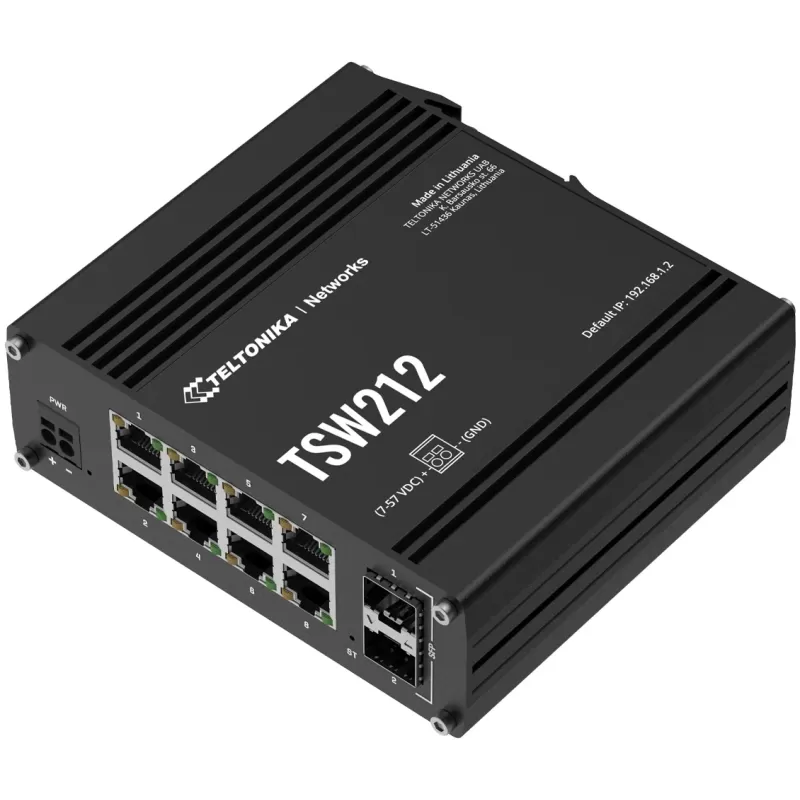

The Teltonika TSW212 is an L2 managed Ethernet switch with additional L3 features such as DHCPv6 client support and static IPv6 routing. It has 8 Gigabit Ethernet ports and 2 SFP ports for long-range fibre communication, in a compact metal housing for DIN rail or surface mounting.

The switch is built for industrial automation and control cabinets: it supports PROFINET, EtherNet/IP, Modbus and OPC UA, MRP ring redundancy, VLANs, QoS and Spanning Tree. It runs on 9 to 57V DC with low power consumption and can be managed via the TSWOS web interface or remotely through the RMS platform.

Key features

• 8 Gigabit ports and 2 SFP - 8 RJ45 ports at 1Gbps and 2 SFP ports for long-distance fibre links between cabinets and buildings.
• Industrial protocols - Support for PROFINET, EtherNet/IP, Modbus and an OPC UA server, plus MRP ring redundancy to keep communication running.
• L2 management with L3 features - VLAN, QoS, Spanning Tree, LLDP, SNMP, DHCP, static and dynamic routing, and a DHCPv6 client with static IPv6 routing.
• Wide input, low consumption - 2-pin power connector for 9 to 57V DC, about 1.3 to 1.5W at idle and up to about 5W with all ports loaded.
• Remote management - TSWOS operating system with a web interface and remote management through the Teltonika RMS cloud platform.

Specifications

In the box

• TSW212 switch
• Quick start guide
